CUB 700,ARCTIC BEAR DSL NO TNK

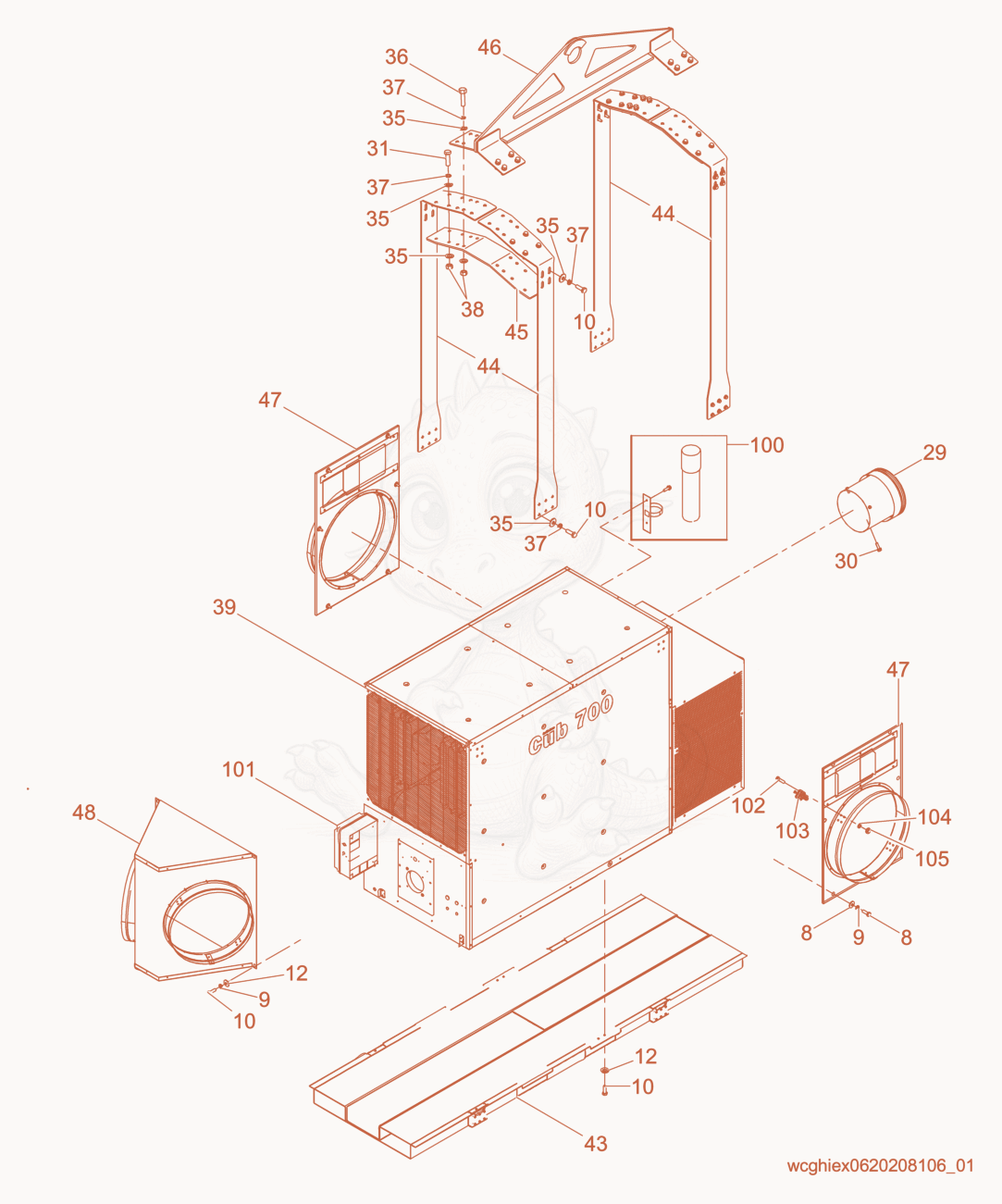

CUB700 Machine cpl. Diagram
- 85000170095Not stockedWasher×42
- 95000170096Not stockedWasher×36
- 105000170094Not stockedBolt×33
- 115000167700Not stockedThreaded insert×26
- 125000167729Not stockedFlat washer×21
- 135000167733Not stockedLock washer×28
- 145000167721Not stockedBolt×26
- 175000170099Not stockedNut×4
- NLA CONNECTOR-10 DRAFT HOOD - 5000170484×1
- 305000170485Not stockedScrew×4
- 315000167719Not stockedBolt×8
- 345000167793Not stockedScrew×2
- 355000167730Not stockedFlat washer×80
- 365000167750Not stockedBolt×32
- 375000167735Not stockedLock washer×40
- 385000167691Not stockedNut×40
- 395000171405Not stockedHeater×1
- 435000171404Not stockedSkid×1
- 445000173646Not stockedStrap×4
- 455000170487Not stockedBrace×2
- 465000170129Not stockedLifting bar×1
- 475000172052Not stockedDuct Adapter Kit×2
- 485000169332Not stockedDuct adapter kit×1
- 1005000168721Not stockedManual holder×1
- 1015000171905Not stockedControl box cpl.×1
- 1025000167709Not stockedScrew×64
- 1035000168801Not stockedToggle clamp×8
- 1045000167816Not stockedWasher-lock×64
- 1055000167815Not stockedNut×64
