DPS1850HBASIC Vibratory Plate cpl. Diagram

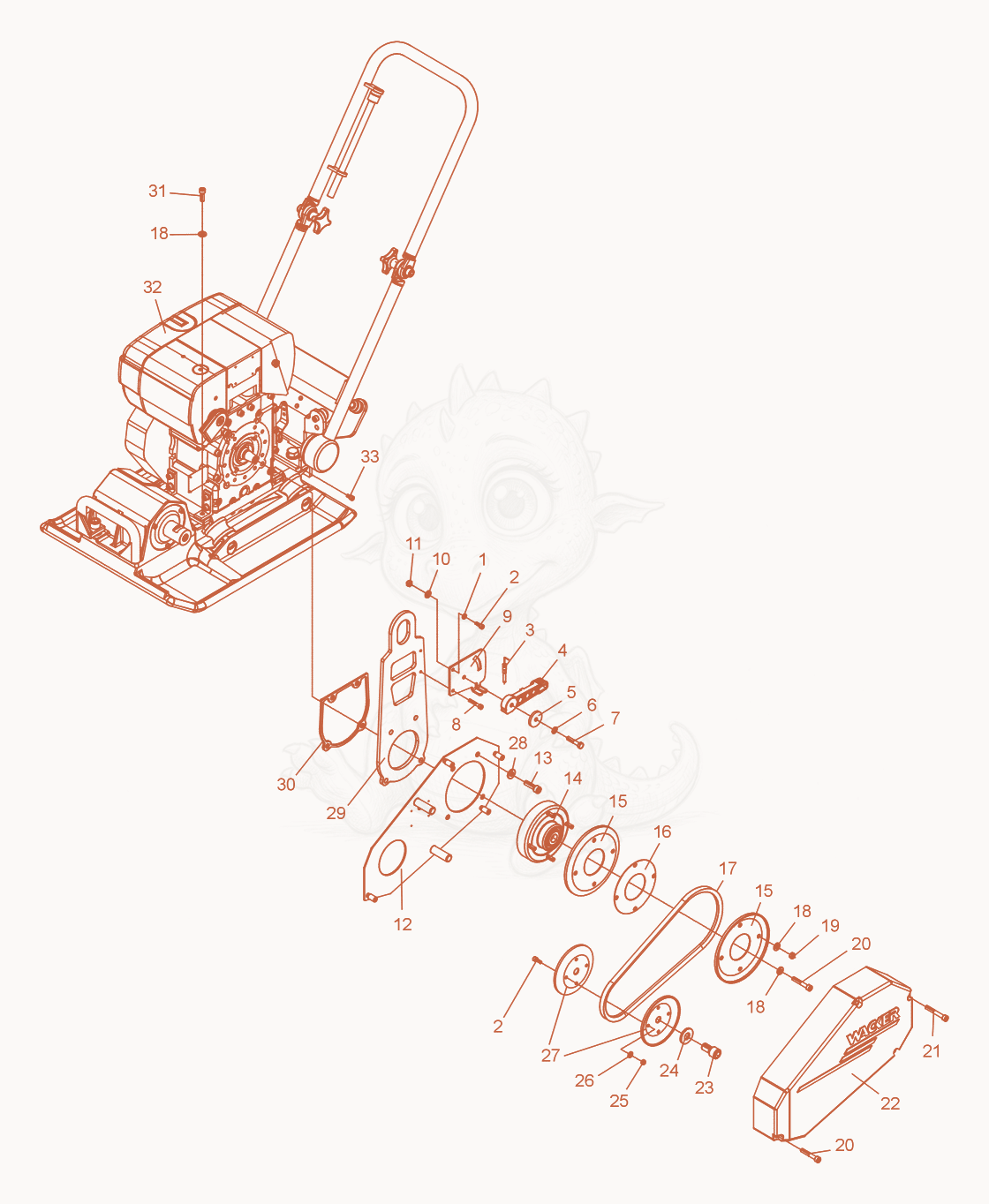

Exploded parts diagram of the Vibratory Plate cpl. of a Wacker Neuson DPS1850HBASIC, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

15000010624
$0.03
WASHER B6.4 FLAT - 5000010624×1
25000011553
$0.15
SCREW M6 X 16 SOC.HD. - 5000011553×5
35000125809
$13.97
CABLE-BOWDEN - 5000125809×1
45000203537Not stocked
Governor lever×1
55000105194
$1.51
WASHER M8 X 1.5 - 5000105194×1
65000104978
$0.22
SPRING DISC C16,0 GR1 - 5000104978×1
75000011341
$0.36
SCREW M8 X 40 HX.HD. - 5000011341×1
85000011548
$0.31
SCREW M6 X 35 SOC.HD. - 5000011548×1
95000125807Not stocked
Bearing×1
105000010622
$0.10
WASHER-FLAT,M8,ZINC - 5000010622×1
115000033356
$0.13
NUT-LOCK VM8 HEX - 5000033356×1
125000202572Not stocked
Fixing plate cpl.×1
135000011533
$1.21
SCREW M10 X 35 SOC.HD. - 5000011533×4
145000108162
$429.20
Centrifugal clutch - 5000108162×1
155000047280Not stocked
V-belt pulley half×2
165000047282Not stocked
Distance washer×3
175000099941Not stocked
Narrow V-belt×1
185000033198
$0.32
WASHER-LOCK B8 - 5000033198×9
195000010882
$0.05
NUT M8 8,HEX - 5000010882×4
205000011537Not stocked
Cheese head screw×2
215000013575
$0.77
SCREW M8 X 60 SOC.HD. - 5000013575×3
225000099791Not stocked
Belt guard×1
235000044634
$1.99
SCREW M16 X 30 SOC.HD. - 5000044634×1
245000043353
$1.86
WASHER-LOCK 16 - 5000043353×1
255000010880
$0.03
NUT M6 8,HEX - 5000010880×5
265000058381
$0.13
WASHER-LOCK 6 FST - 5000058381×4
275000099828Not stocked
V-belt pulley half×2
285000033988
$0.41
WASHER-LOCK 10 - 5000033988×4
295000201565Not stocked
Lifting point×1
305000108275Not stocked
Adaptor×1
315000011542
$0.37
SCREW M8 X 25 SOC.HD. - 5000011542×4
325000126190Not stocked
Diesel engine×1
335000011554
$0.13
SCREW M6 X 12 SOC.HD. - 5000011554×1
