DPS2040-VIBROPLATE

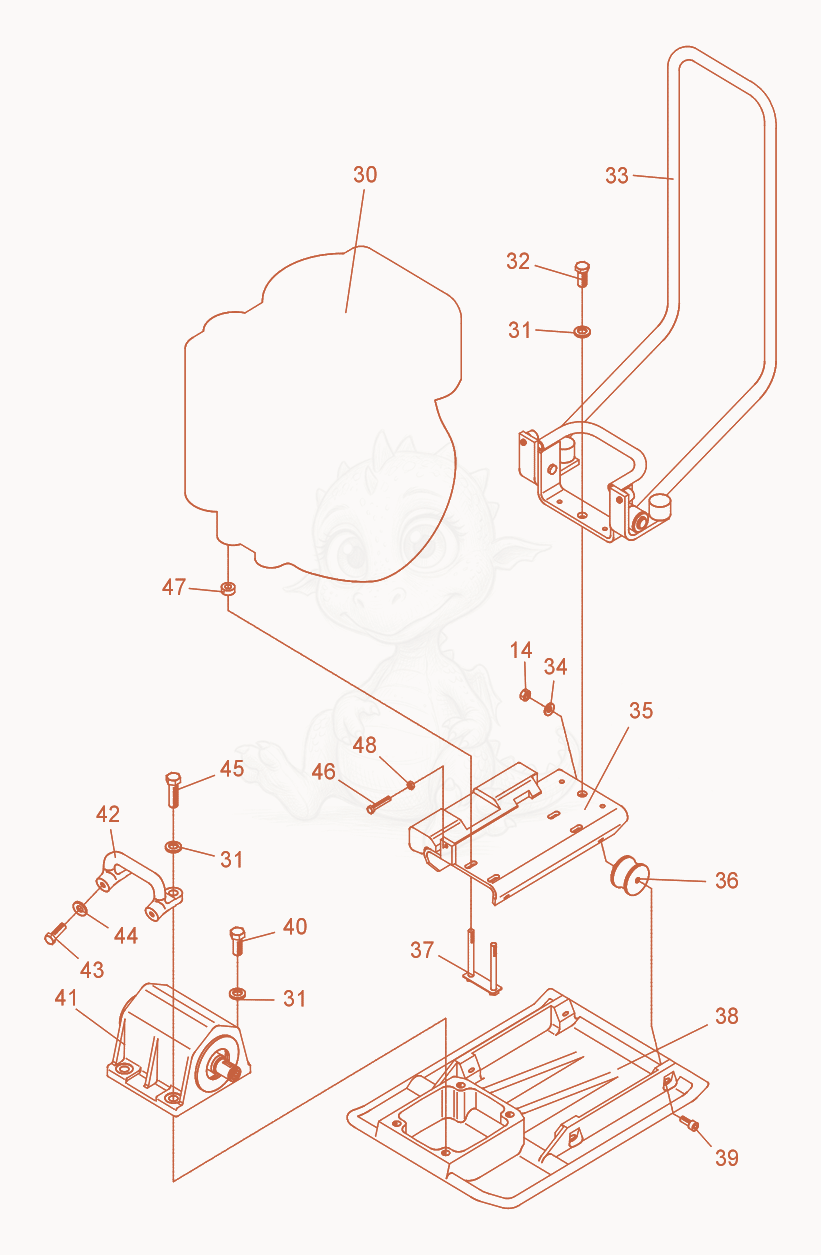

DPS2040 Vibratory Plate cpl. Diagram

Exploded parts diagram of the Vibratory Plate cpl. of a Wacker Neuson DPS2040, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 305000200581Not stocked
    Diesel engine×1
  • 315000021988
    $3.05
    WASHER-LOCK HS16,HIGH TENSION - 5000021988×5
  • 325000022572
    $1.99
    SCREW M16 X 35 HX.HD. - 5000022572×1
  • 335000049686Not stocked
    Center Pole cpl.×1
  • 345000033988
    $0.41
    WASHER-LOCK 10 - 5000033988×4
  • 355000046585Not stocked
    Engine bracket×1
  • 365000037378
    $27.10
    SHOCKMOUNT 60 X 40-55SH,FORM B - 5000037378×4
  • 375000044713
    $159.43
    FITTING - 5000044713×2
  • 385000069881Not stocked
    Base plate×1
  • 395000011535
    $0.59
    SCREW M10 X 25 SOC.HD. - 5000011535×4
  • 405000011522
    $0.62
    SCREW M16 X 35 HX.HD. - 5000011522×2
  • 415000069876Not stocked
    Exciter cpl.×1
  • 425000069893Not stocked
    Handle×1
  • 435000011421
    $0.40
    SCREW M12 X 40 HX.HD. - 5000011421×2
  • 445000031565
    $0.48
    WASHER-LOCK A12 - 5000031565×2
  • 455000011519
    $2.12
    SCREW-M16 X 50,HX HD - 5000011519×2
  • 465000011453
    $0.47
    SCREW M8 X 45 HX.HD. - 5000011453×1
  • 475000033959Not stocked
    Washer×4
  • 485000010882
    $0.05
    NUT M8 8,HEX - 5000010882×1
