DPS3060-VIBROPLATE

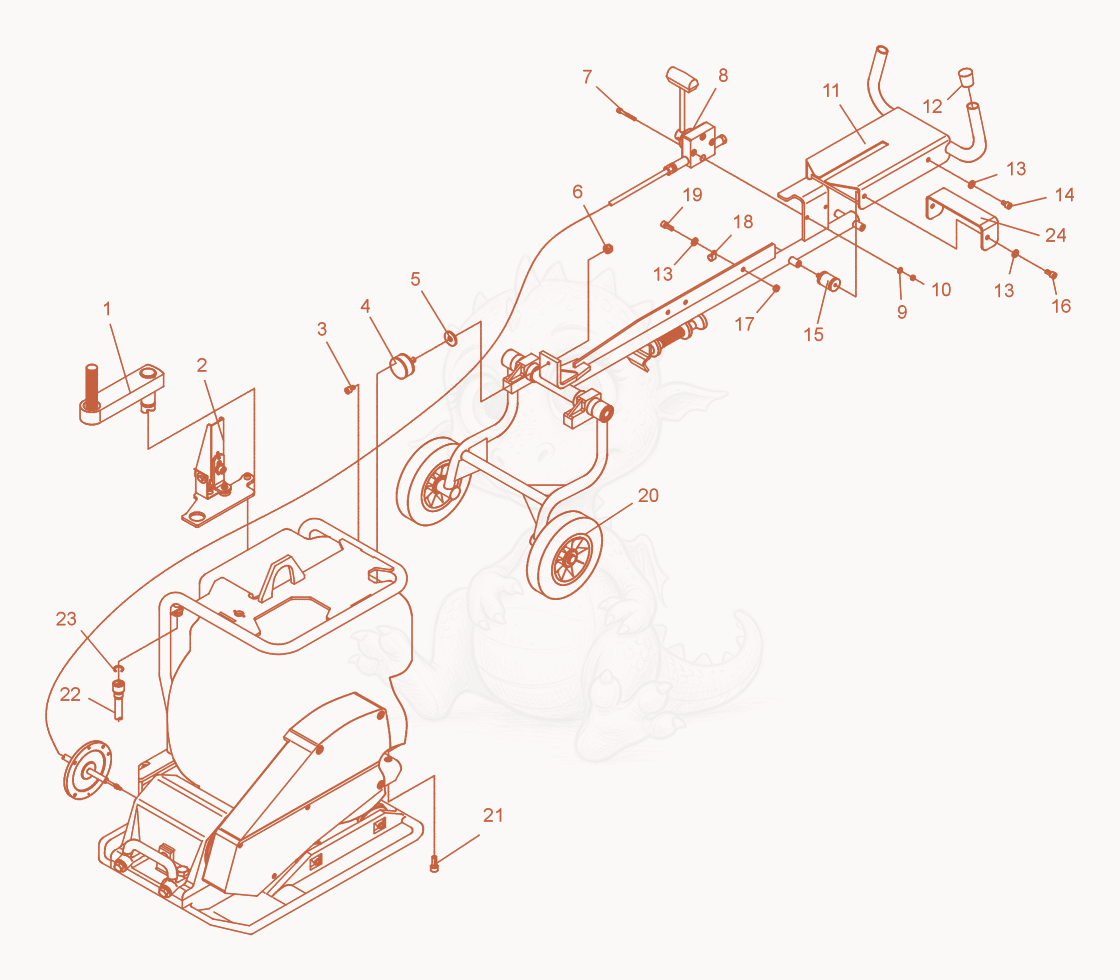

DPS3060 Vibratory Plate cpl. Diagram

Exploded parts diagram of the Vibratory Plate cpl. of a Wacker Neuson DPS3060, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000058273
    $1,075.78
    CRANK-ENGINE START,RATCHET - 5000058273×1
  • 25000033886
    $208.87
    HOLDER-ENGINE STARTER CRANK - 5000033886×1
  • 35000047172
    $8.06
    SCREW M8 X 10 SOC.HD. - 5000047172×1
  • 45007000635Not stocked
    Shockmount×1
  • 55000012976
    $0.53
    WASHER R11 - 5000012976×1
  • 65000019141Not stocked
    Hexagon nut×1
  • 75000011546
    $0.28
    SCREW M6 X 45 SOC.HD. - 5000011546×2
  • 85000096448Not stocked
    Operating lever cpl.×1
  • 85000097984Not stocked
    Throttle cpl.×1
  • 85000097985Not stocked
    Operating lever cpl.×1
  • 95000010624
    $0.03
    WASHER B6.4 FLAT - 5000010624×2
  • 105000010880
    $0.03
    NUT M6 8,HEX - 5000010880×2
  • 115000096672Not stocked
    Plate×1
  • 125000066932
    $1.60
    CAP-PROTECTIVE CLOSURE,C25,BLK - 5000066932×2
  • 135000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×8
  • 145000013574
    $0.44
    SCREW M8X12 SOC.HD - 5000013574×2
  • 155000096687
    $10.80
    Shockmount - 5000096687×4
  • 165000011544
    $0.44
    SCREW M8 X 16 SOC.HD. - 5000011544×2
  • 175000010882
    $0.05
    NUT M8 8,HEX - 5000010882×3
  • 185000096691
    $1.99
    CLAMP-PIPE - 5000096691×3
  • 195000011543
    $0.39
    SCREW M8 X 20 SOC.HD. - 5000011543×3
  • 205000096674Not stocked
    Center Pole cpl.×1
  • 215000011535
    $0.59
    SCREW M10 X 25 SOC.HD. - 5000011535×4
  • 225000097318
    $84.60
    Adapter - 5000097318×1
  • 235000021483
    $0.44
    O-RING 16.3 X 2.4-70 Sh - 5000021483×1
  • 245000201896Not stocked
    Retaining strap×1
