DPU110Lekc970

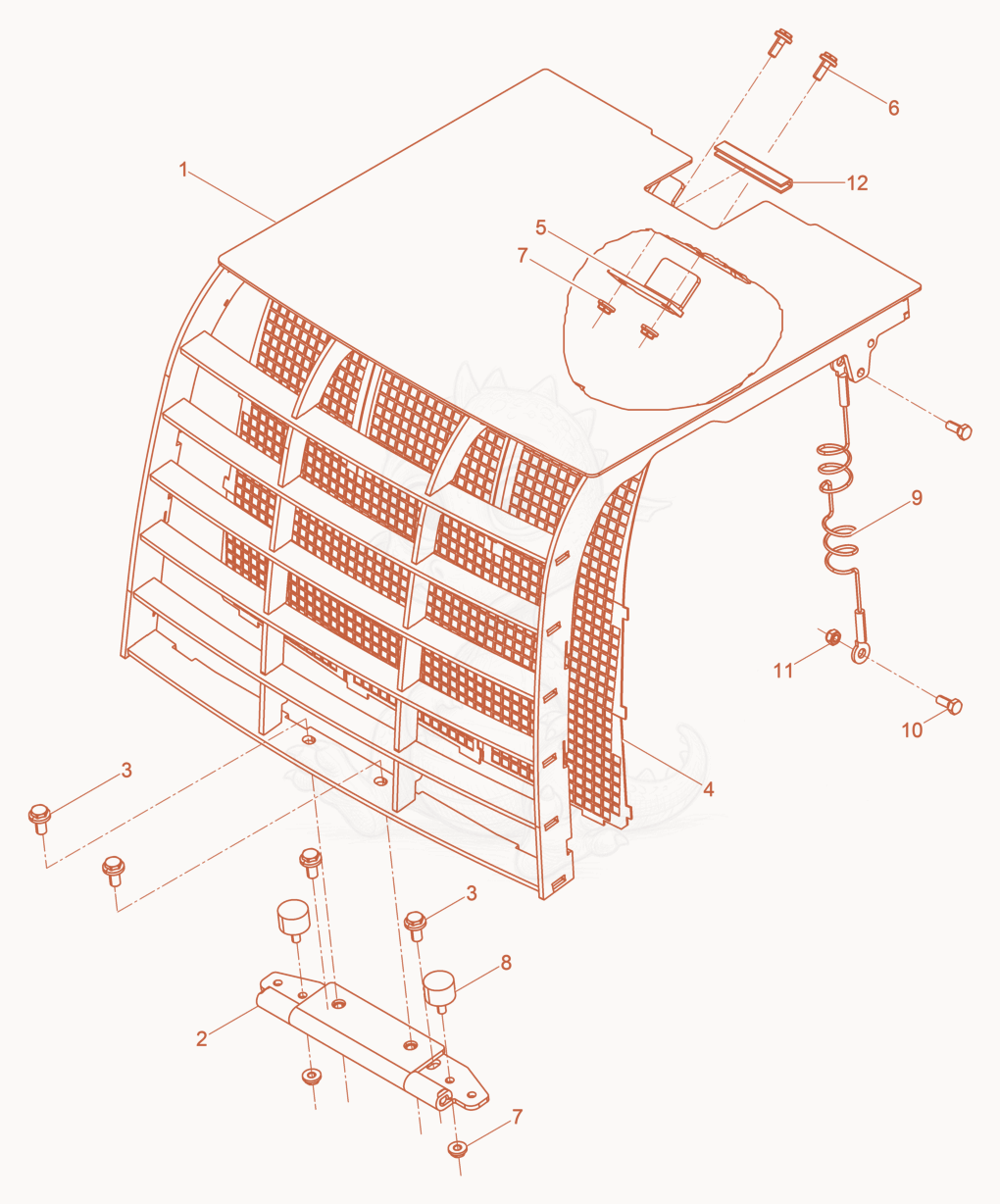

DPU110LEKC970 Bonnet front cpl. Diagram
- Bonnet - 5100010437×1
- Hinge - 5100016051×1
- SCREW-CORRUGATED HEAD - 5000210112×4
- Screen grid - 5100010930×1
- Locking tab front - 5100010577×1
- corrugated-head screw M 8x 20 - 5100018058×2
- Locknut M 8 - 5100017158×4
- Shockmount 30 x 22 M8 x 18 - 5100024474×2
- CABLE-LANYARD - 5000154402×1
- SCREW M8 X 20 HX.HD. - 5000012362×2
- NUT-LOCK VM8 HEX - 5000033356×2
- Edge protection 90 mm - 5100024476×1
