DPU110rLec870

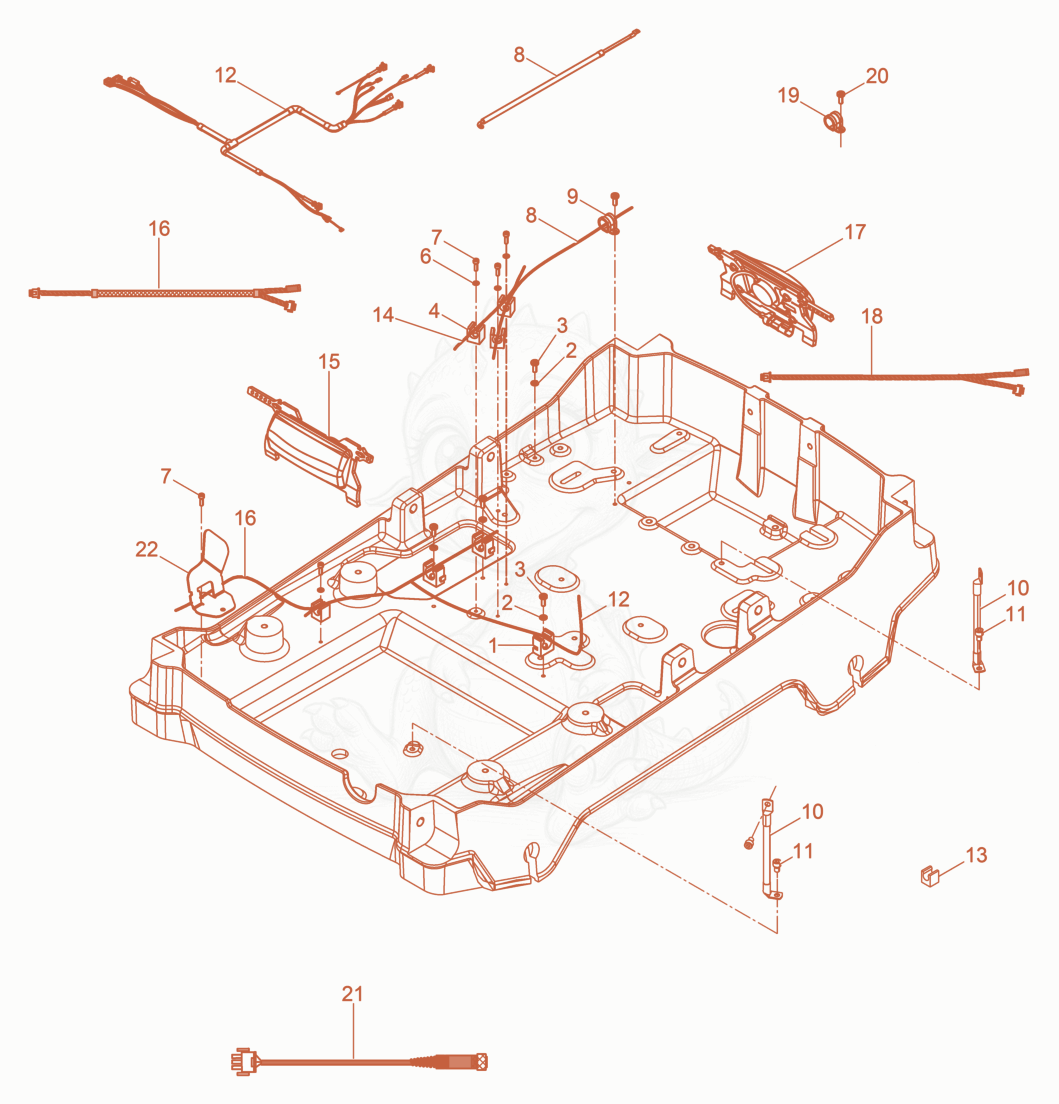

DPU110RLEC870 cabling cpl. DPU110r Diagram
- CLAMP - 5000210107×3
- WASHER B6.4 FLAT - 5000010624×4
- Screw - 5000211755×5
- Hose Clamp - 5100010281×4
- WASHER B5.3 FLAT - 5000010625×5
- SCREW M5X16-8.8VZ,SOC.HD.CAP - 5000011561×5
- Positive cable - 5100005670×1
- Pipe clamp RSGU 1.18/15 - 5100066741×1
- Negative pole strap - 5100010152×2
- SCREW M8X12 SOC.HD - 5000013574×3
- Cable harness Engine - 5100005669×1
- Clamp - 5100017849×1
- Cable harness Valve - 5100005665×1
- Receiver Unit front - 5100011350×1
- Wiring Harness Front - 5100005668×1
- Receiver Unit rear - 5100011351×1
- Wiring Harness Back - 5100005667×1
- Clamp - 5000212143×1
- SCREW M6 X 10 SOC.HD. - 5000011555×1
- Charging Cable - 5100010511×1
- Heat shield - 5100027457×1
