DPU130Le

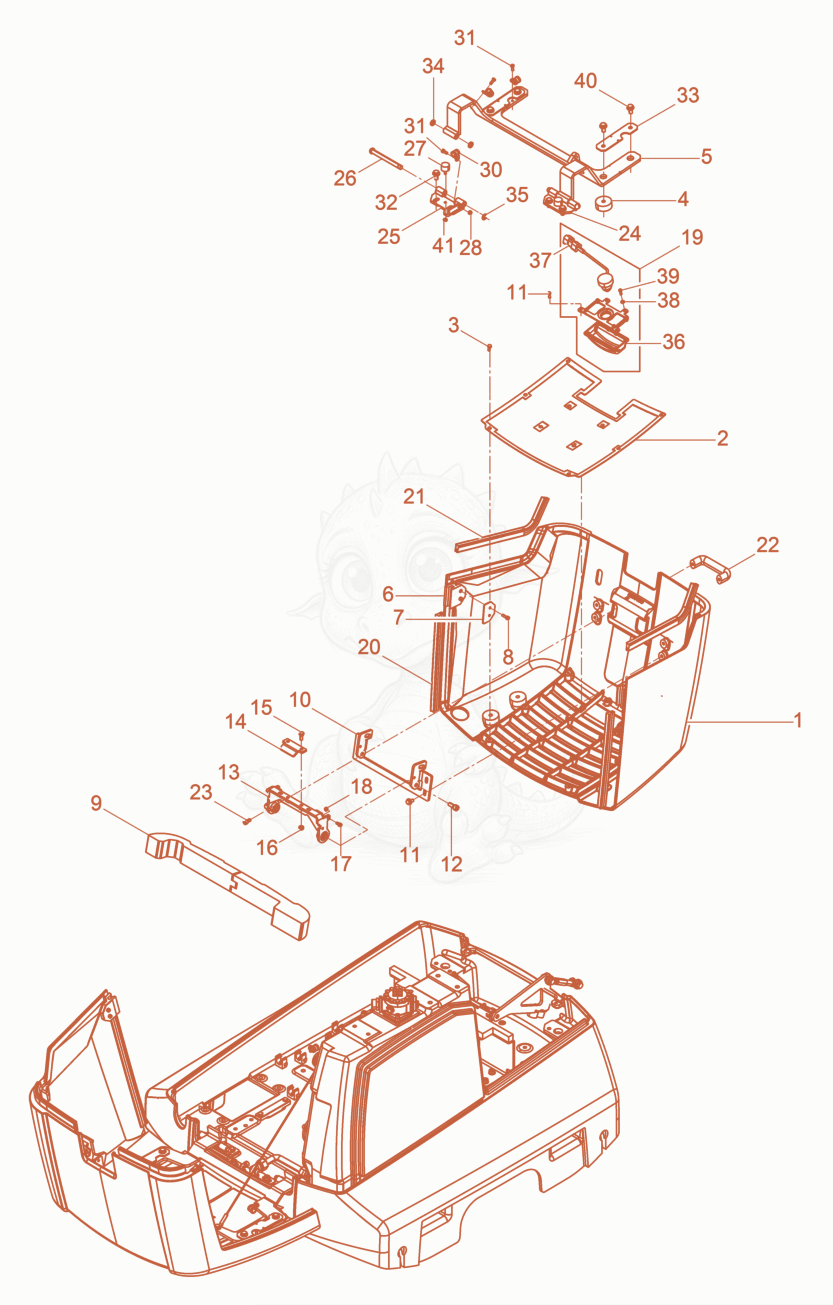

DPU130LECH/US Bonnet rear Diagram
- BONNET,REAR - 5000206481×1
- Grid - 5000208274×1
- screw - 5000204408×14
- Shockmount - 5000206517×4
- Hinge - 5000206509×1
- Fixation - 5000205367×2
- Reinforcement - 5000207332×2
- SCREW M6 X 20 SOC.HD. - 5000011551×4
- sealing - 5000216573×1
- Support - 5000208287×1
- SCREW-CORRUGATED HD. - 5000211795×4
- SCREW M10 X 25 SOC.HD. - 5000011535×2
- Lever cpl. - 5000210122×1
- Plate - 5000209135×1
- SCREW M8 X 20 HX.HD. - 5000012362×2
- NUT-LOCK VM8 HEX - 5000033356×2
- SCREW M6 X 12 SOC.HD. - 5000011554×2
- NUT-LOCK VM6 HEX - 5000021679×2
- RECEIVER UNIT-REAR - 5000209132×1
- GUARD-EDGE PROTECTION - 5000211798×2
- GUARD-EDGE PROTECTION - 5000211799×2
- HANDLE - 5000210163×1
- SCREW M8 X 16 SOC.HD. - 5000011544×2
- Hinge - 5000206506×1
- Hinge - 5000210141×1
- bolt - 5000220132×2
- SHOCKMOUNT - 5000206525×2
- NUT-LOCK VM6 HEX - 5000021679×1
- Clamp - 5000212145×3
- Screw - 5000211755×3
- SCREW-CORRUGATED HEAD - 5000210112×4
- Plate - 5000207723×2
- washer - 5000220172×4
- RET.RING-EXT 9MM,E-TYP - 5000020610×2
- CAP-PROTECTIVE - 5000209126×1
- MODULE IR-RECEIVING EYE,SC-2 - 5000170949×1
- WASHER-LOCK,5 - 5000103211×4
- SCREW-CHEESE HD. - 5000208646×2
- SCREW-CORRUGATED HEAD - 5000210111×4
- NUT-LOCK M6 HEX. - 5000010368×2
