DPU2430-VIBROPLATE

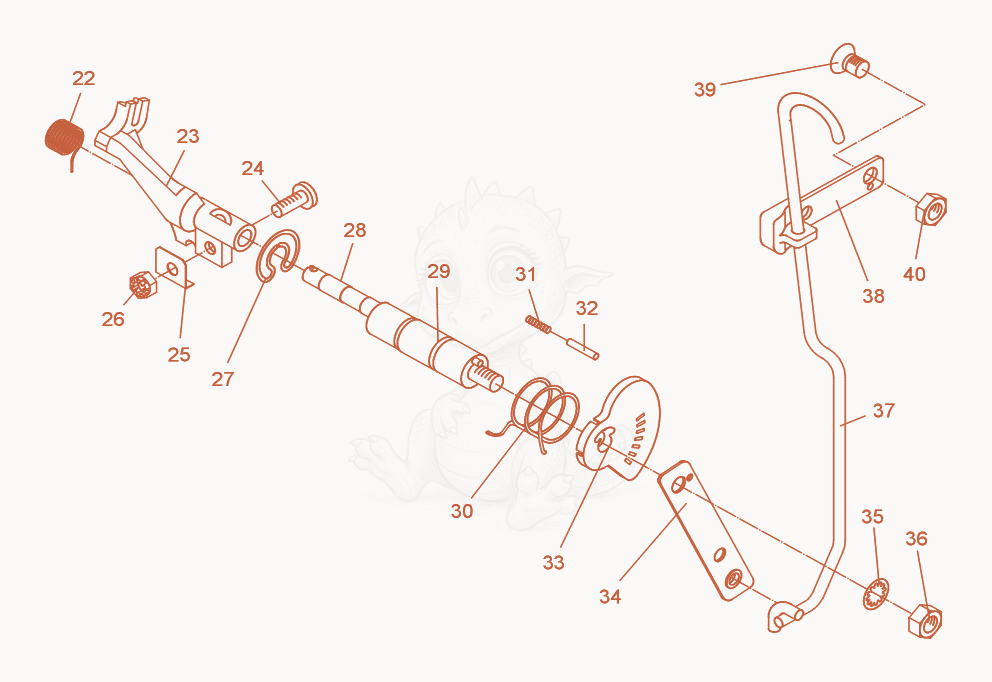

DPU2430F Eccentric Shaft Diagram

Exploded parts diagram of the Eccentric Shaft of a Wacker Neuson DPU2430F, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 225000034345
    $2.50
    SPRING - 5000034345×1
  • 235000034344Not stocked
    Governor lever×1
  • 245000034346
    $27.97
    SCREW-ADJUSTMENT - 5000034346×1
  • 255000034347Not stocked
    Locking plate×1
  • 265000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×1
  • 275000034343
    $7.39
    RET.RING 26.3MM,FORM D - 5000034343×1
  • 285000034341Not stocked
    Eccentric shaft×1
  • 295000034342
    $8.84
    O-RING 10 X 2.2-70 Sh - 5000034342×1
  • 305000039974
    $8.87
    SPRING-VALVE ROTATOR - 5000039974×1
  • 315000037336Not stocked
    Compression spring×1
  • 325000039976Not stocked
    Bearing needle×1
  • 335000034350
    $40.29
    DISC - 5000034350×1
  • 345000034351Not stocked
    Lever×1
  • 355000034275Not stocked
    Toothed lock washer×1
  • 365000010882
    $0.05
    NUT M8 8,HEX - 5000010882×1
  • 375000058081Not stocked
    Manual operation×1
  • 385000039975
    $11.55
    Lever - 5000039975×1
  • 395000020950
    $0.59
    SCREW M8 X 12 FL.HD.MCH - 5000020950×1
  • 405000010805
    $0.06
    NUT-M8,JAM - 5000010805×1
