DPU2440H-VIBROPLATE

DPU2440H Vibratory Plate cpl. Diagram

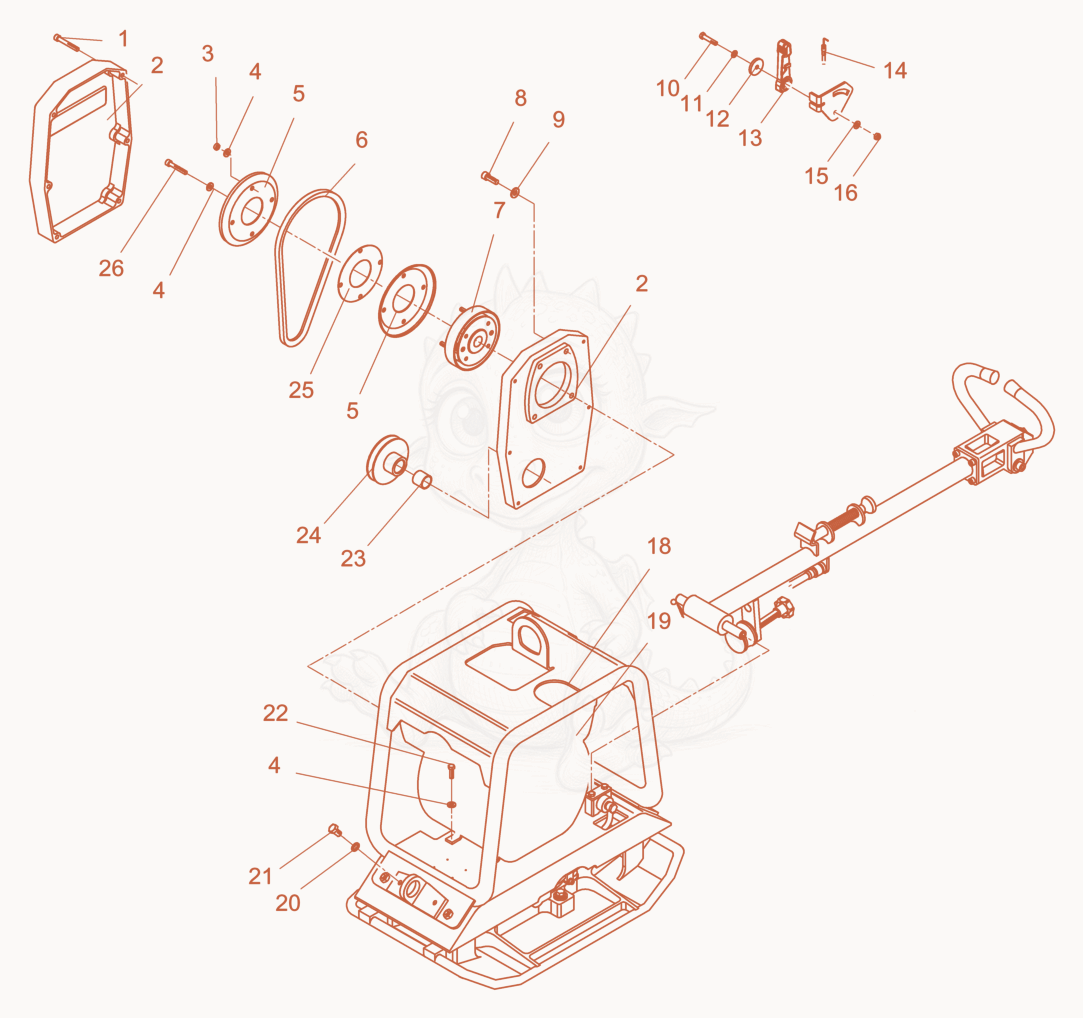

Exploded parts diagram of the Vibratory Plate cpl. of a Wacker Neuson DPU2440H, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000013575
    $0.77
    SCREW M8 X 60 SOC.HD. - 5000013575×5
  • 25000107535Not stocked
    Belt guard×1
  • 35000010882
    $0.05
    NUT M8 8,HEX - 5000010882×8
  • 45000033198
    $0.32
    WASHER-LOCK B8 - 5000033198×13
  • 55000047280Not stocked
    V-belt pulley half×2
  • 65000058924
    $11.06
    BELT-V SPA882LW - 5000058924×1
  • 75000108162
    $429.20
    Centrifugal clutch - 5000108162×1
  • 85000011534
    $0.94
    SCREW M10 X 30 SOC.HD. - 5000011534×4
  • 95000010621
    $0.13
    WASHER B10.5 FLAT - 5000010621×4
  • 105000011341
    $0.36
    SCREW M8 X 40 HX.HD. - 5000011341×1
  • 115000104978
    $0.22
    SPRING DISC C16,0 GR1 - 5000104978×1
  • 125000105194
    $1.51
    WASHER M8 X 1.5 - 5000105194×1
  • 135000111202
    $13.22
    CONTROL-THROTTLE - 5000111202×1
  • 145000125810Not stocked
    Bowden cable×1
  • 155000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×1
  • 165000033356
    $0.13
    NUT-LOCK VM8 HEX - 5000033356×1
  • 185000108188Not stocked
    Protective frame×1
  • 195000126190Not stocked
    Diesel engine×1
  • 205000010740
    $0.23
    WASHER 13 - 5000010740×2
  • 215000014316
    $0.98
    SCREW M12 X 16 HX.HD. - 5000014316×2
  • 225000011543
    $0.39
    SCREW M8 X 20 SOC.HD. - 5000011543×4
  • 235000047081
    $6.06
    RING BN32 X 12 - 5000047081×1
  • 245000047428
    $173.87
    PULLEY-V BELT - 5000047428×1
  • 255000047282Not stocked
    Distance washer×4
  • 265000011537Not stocked
    Cheese head screw×1
