Vibration plate DPU 2450H

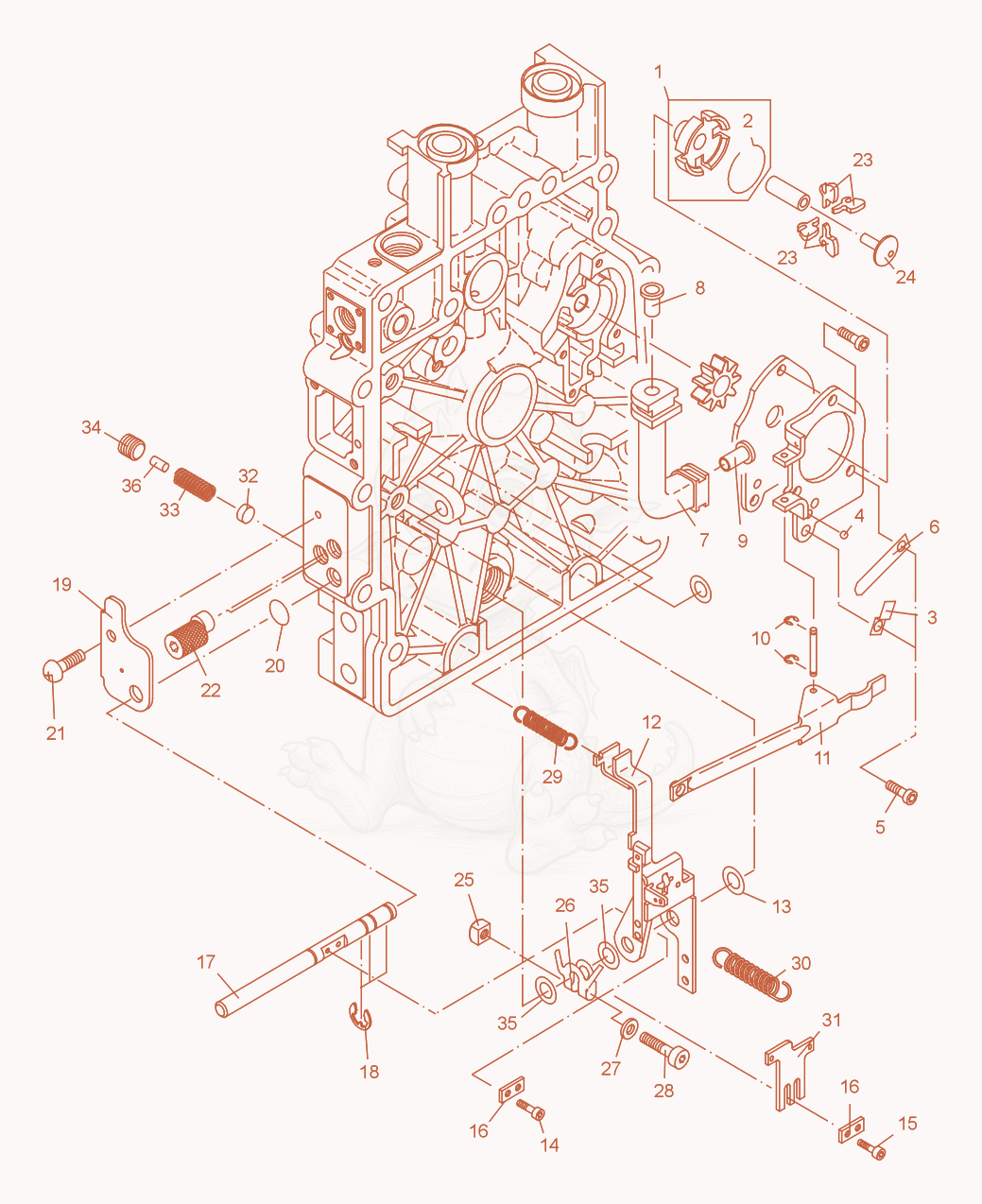

DPU2450H Oil Pump-Governor Diagram
- COVER-PUMP,OIL - 5000151304×1
- CLIP-CIRCLE - 5000151305×1
- STRAP-RETAINING - 5000108778×1
- BALL 3.5MM - 5000108779×1
- SCREW-ALLEN M5X12 - 5000151308×4
- SPRING-FLAT 0.4MM - 5000108777×1
- TUBE-SUCTION,OIL - 5000108775×1
- INSERT-TUBE - 5000108774×1
- INSERT-TUBE - 5000108776×1
- CLIP-CIRCLE - 5000108780×2
- 115000129003Not stockedReversing Lever×1
- LEVER-GOVERNOR - 5000151316×1
- DISC 8X14X0.5 - 5000108782×1
- SCREW-ALLEN M3X12 - 5000151318×2
- SCREW-ALLEN M3X8 - 5000108788×2
- PLATE-INTERMEDIATE - 5000108789×1
- Shaft - 5000108795×1
- CLIP-CIRCLE 7 - 5000151327×3
- PLATE - 5000151330×1
- O-RING 8X2 - 5000108801×1
- SCREW M5X12 -10.9 ZN - 5000151328×1
- SCREW-ECCENTRIC - 5000129004×1
- 235000108772Not stockedWeight×8
- SLEEVE-GOVERNOR - 5000108773×1
- NUT M5 5 A3C - 5000151335×1
- CONTROL-STOP - 5000151331×1
- WASHER 5.3, A3C - 5000129517×1
- SCREW M5X25 8.8 - 5000151333×1
- Spring - 5000094966×1
- SPRING-GOVERNOR - 5000108786×1
- CONTROL-STOP - 5000108787×1
- PLUG 8X3.2X0.5 - 5000151351×1
- SPRING - 5000151352×1
- SCREW-GRUB M10X10 A3C - 5000151353×1
- SHIM 8X14X1 - 5000151354×1
- PIN-STRAIGHT,4M 6X8 - 5000129005×1
