DPU2870-VIBROPLATE

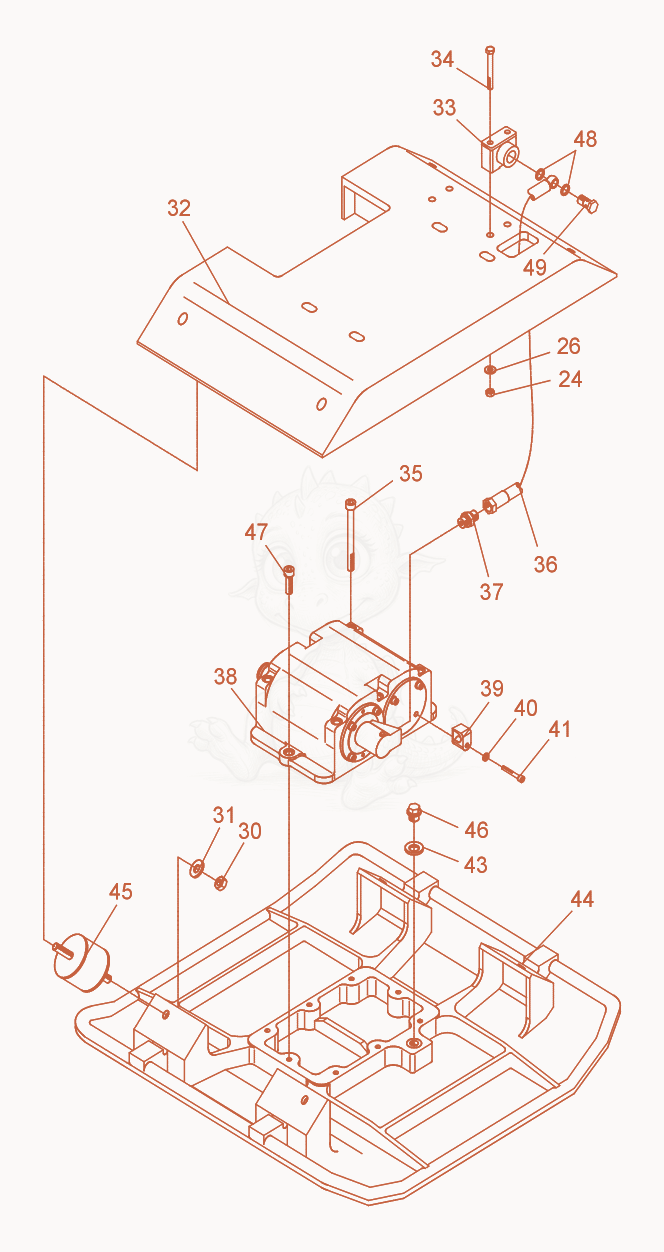

DPU2870 Vibratory Plate cpl. Diagram

Exploded parts diagram of the Vibratory Plate cpl. of a Wacker Neuson DPU2870, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 5000065353Not stocked
    Insulating cushion×1
  • 5000065373
    $52.29
    KIT-HOSE REPLACEMENT,,2TE - 5000065373×1
  • 305000010884
    $0.26
    NUT M12 8,HEX - 5000010884×8
  • 315000031565
    $0.48
    WASHER-LOCK A12 - 5000031565×8
  • 325000047355
    $1,008.34
    Console Upper Mass 5000047355×1
  • 335000039125Not stocked
    Fixing device cpl.×2
  • 345000011348
    $0.37
    SCREW M8 X 75 HX.HD. - 5000011348×4
  • 355000094073
    $3.22
    SCREW M10 X 120 10.9 - 5000094073×6
  • 365000069735
    $24.93
    HOSE-HYDRAULIC - 5000069735×1
  • 375000046461
    $6.50
    FITTING-PIPE L10R - 5000046461×1
  • 395000069727
    $2.55
    CLAMP LB318PP - 5000069727×1
  • 405000010624
    $0.03
    WASHER B6.4 FLAT - 5000010624×1
  • 415000011547
    $0.56
    SCREW M6 X 40 SOC.HD. - 5000011547×1
  • 435000014968
    $1.73
    SEAL-RING 16.7 X 24 X 1.5 - 5000014968×1
  • 445000099187Not stocked
    Base plate×1
  • 455002001685
    $27.25
    SHOCKMOUNT 75 X 55-45SH,FORM A - 5002001685×4
  • 465000014535
    $6.99
    PLUG M16 X 1.5 ST - 5000014535×1
  • 475000049125
    $1.95
    SCREW M10 X 35,GR 10.9 - 5000049125×2
  • 485000125317
    $0.57
    GASKET A14X20 - 5000125317×2
  • 495000043201
    $4.69
    SCREW-HOLLOW 10-3 - 5000043201×1
