DPU2970-VIBROPLATE

DPU2970 Cylinder head Diagram

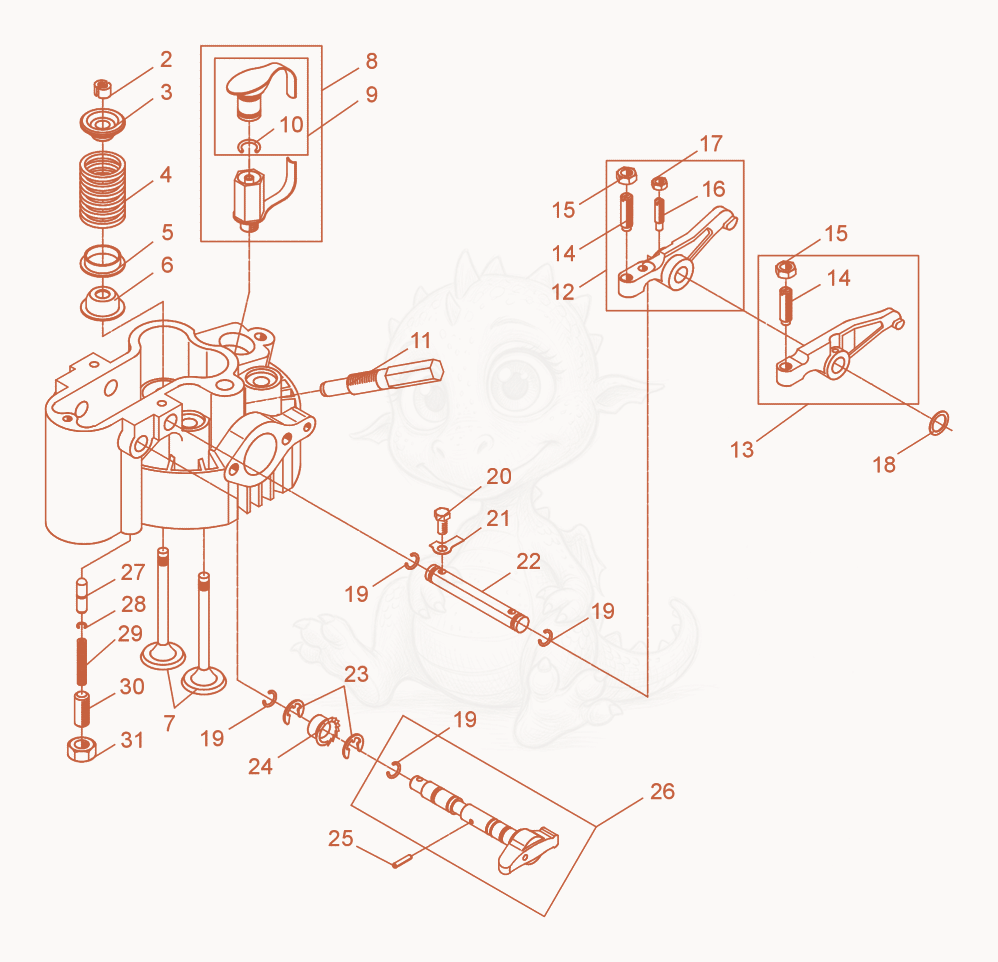

Exploded parts diagram of the Cylinder head of a Wacker Neuson DPU2970, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

5004103090Not stocked
Cylinder Head cpl.×1
25000047964
$16.49
SET-VALVE CONES - 5000047964×2
35000047965
$55.89
HOLDER-VALVE SPRING - 5000047965×2
45004101420
$14.97
SPRING - 5004101420×2
55004101430Not stocked
Supporting disc×2
65004101410
$8.15
Cap - 5004101410×2
75000047963
$67.62
VALVE-ENGINE INTAKE/EXHAUST - 5000047963×2
85000047966
$25.41
PRIMER-ENGINE STARTUP - 5000047966×1
95000047967
$16.49
PLUG-PRIMING DEVICE CAP - 5000047967×1
105000014398
$0.07
O-RING 12 X 2-70 Sh - 5000014398×2
115004101620
$33.10
HOLDER-STARTER PAPER - 5004101620×1
125004101511
$216.27
ROCKER ARM-EXHAUST VALVE - 5004101511×1
135004101460
$194.16
ROCKER ARM-INLET - 5004101460×1
145004101490
$60.24
SCREW - 5004101490×2
155004101500
$11.94
NUT-LOCK 5/16X24 - 5004101500×2
165004101540
$14.52
SCREW - 5004101540×1
175000010880
$0.03
NUT M6 8,HEX - 5000010880×1
185004102050
$1.73
SHIM-0.1MM - 5004102050Unknown×1
185000014816
$2.20
SHIM-0.5MM - 5000014816Unknown×1
185004102060Not stocked
Shim×1
185004102070Not stocked
Shim×1
195004101560
$7.02
O-RING 8 X 2-70 DEG. SH - 5004101560×4
205000012357
$0.10
SCREW M6 X 12 HX.HD. - 5000012357×2
215000013595
$8.61
WASHER 6.4 TABBED - 5000013595×2
225004101550
$64.67
LOCK-ROCKER ARM - 5004101550×1
235000020610
$7.47
RET.RING-EXT 9MM,E-TYP - 5000020610×2
245004101581
$140.05
GEAR - 5004101581×1
255000013581
$5.53
PIN 3 X 16 ROLLED - 5000013581×1
265004101571
$145.41
LEVER-DECOMPRESSION DEVICE - 5004101571×1
275004101590Not stocked
Pin×1
285004101990
$6.86
O-RING 5 X 1-70 Sh - 5004101990×1
295004101600Not stocked
Compression spring×1
305000013703
$0.89
SCREW-SET M10 X 25 SOC. - 5000013703×1
315000010883
$0.29
NUT M10 8,HEX - 5000010883×1
