DPU 3050H US

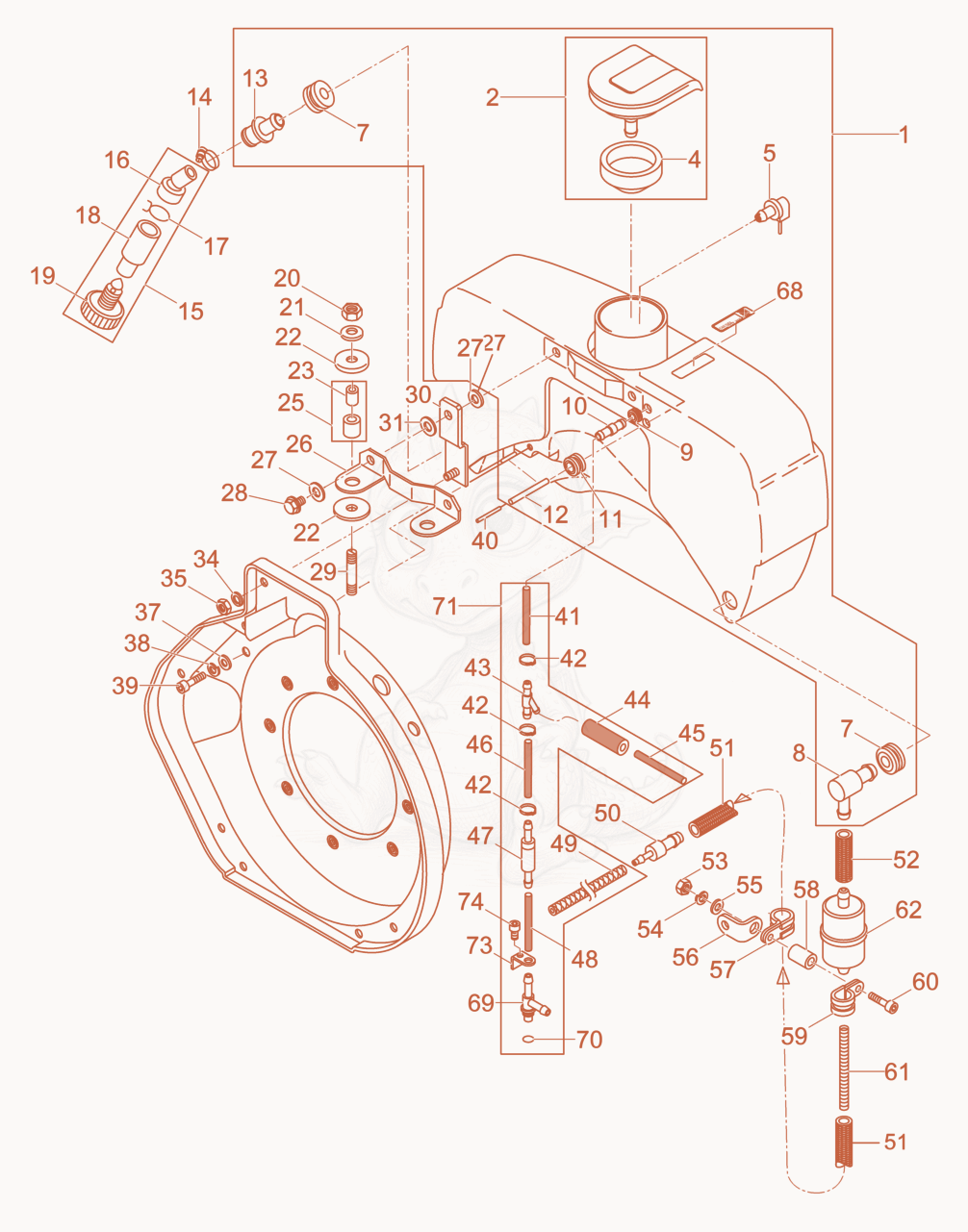

DPU3050HUS Fuel System Diagram
- TANK-FUEL - 5000227671×1
- CAP-TANK,FUEL - 5000108861×1
- GASKET-CAP,FUEL - 5000108864×1
- VALVE-VENTILATION,FUEL - 5000108870×1
- SLEEVE-RUBBER - 5000108874×2
- CONNECTION SOCKET - 5000209869×1
- SLEEVE-RUBBER - 5000108885×1
- FITTING-STRAIGHT - 5000128962×1
- 115100038991Not stockedGrommet×1
- HOSE-BREATHER 1 X 3 X 85 - 5000108887×1
- FITTING-STRAIGHT - 5000209713×1
- clamp - 5000202465×1
- WATER SEPERATOR COMP - 5000209871×1
- HOSE 20 X 12MM - 5000202412×1
- CLIP-HOSE - 5000108688×1
- FLUID SEPARATOR-WATER - 5000209707×1
- SCREW-M10 - 5000202461×1
- NUT-HEX M8 8 C3A - 5000151530×2
- WASHER-FLAT 8.4 ST A3C - 5000151553×2
- DISC 8.2 X 22 X 2 - 5000108892×4
- SLEEVE-INSULATING - 5000108895×2
- TUBE-ASSEMBLY,INSULATING - 5000151489×2
- BRACE-SUPPORT - 5000151538×1
- DISC 7.1 X 17.9 X 2 - 5000108791×4
- SCREW M6 X 20,HEX - 5000202347×2
- STUD M8X25 8.8 A3C - 5000151526×2
- BRACE-SUPPORT - 5000108896×2
- WASHER 6.4 - 5000107401×2
- WASHER-SPRING 6 A3C - 5000151456×2
- NUT-HEX M6 8 A3C - 5000151323×2
- WASHER-FLAT 6.4 - 5000151324×4
- WASHER-SPRING 6 A3C - 5000151456×4
- SCREW-ALLEN HD,M6X12-8.8A3C - 5000129016×4
- TUBE 1.4 X 2 X 16 - 5000108888×1
- HOSE-FUEL - 5000209966×1
- CLAMP-HOSE - 5000207586×2
- FITTING-T - 5000128959×1
- TUBE 7 X 25 - 5000209716×1
- FUEL-LINE,2.5 X 245 - 5000227675×1
- FUEL LINE 5 X 150 - 5000207788×1
- FITTING-STRAIGHT,BARBER,HOSE - 5000047977×1
- HOSE-FUEL - 5000209875×1
- NIPPLE - 5000209876×1
- HOSE-FUEL - 5000209877×1
- HOSE-FUEL - 5000209967×1
- NUT-HEX M6 8 A3C - 5000151323×1
- WASHER-SPRING 6 A3C - 5000151456×1
- WASHER-FLAT 6.4 - 5000151324×1
- BRACKET - 5000209879×1
- Clamp - 5000107451×1
- TUBE-SPACING 6.5X12X18 - 5000108852×1
- Clamp - 5000107451×1
- SCREW-HEX - 5000209880×1
- Spring - 5000106564×1
- Fuel Filter - 5100038992×1
- 635000109710Not stockedTie cable×2
- LABEL-DIESEL - 5000129791×1
- T-FITTING - 5000209682×1
- O-RING 7.5 X 10.5 X 1.5 - 5000071130×1
- HOSE-FUEL COMPLETE - 5000209882×1
