Vibratory Plate

DPU3070H Exhaust Silencer Diagram

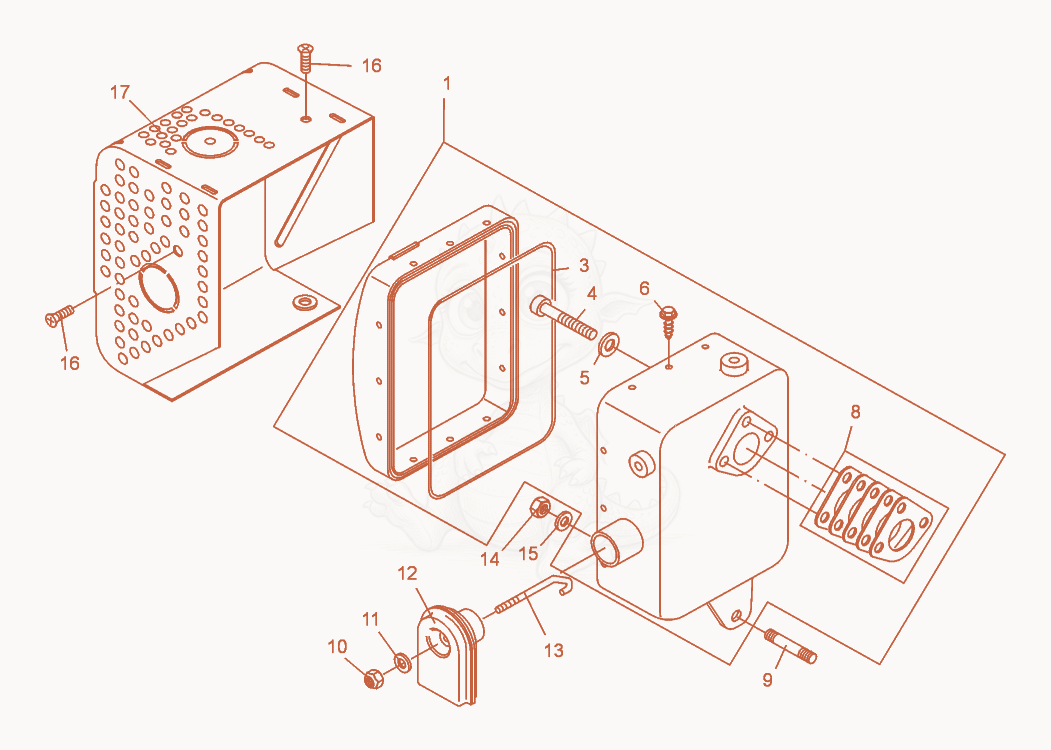

Exploded parts diagram of the Exhaust Silencer of a Wacker Neuson DPU3070H, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000151573
    $1,067.40
    MUFFLER ASSEMBLY - 5000151573×1
  • 35000151577
    $7.02
    GASKET-RUBBER,650MM - 5000151577×1
  • 45000151578
    $8.06
    SCREW M8X30 8.8 C4P - 5000151578×3
  • 55000151602
    $8.06
    WASHER 8.4 X 21 X 3 - 5000151602×3
  • 65000151581
    $8.06
    SCREW M4.8X13 - 5000151581×12
  • 85000151584
    $12.73
    GASKET-MUFFLER - 5000151584×1
  • 95000151583
    $2.50
    STUD M6X16 8.8 A3C - 5000151583×1
  • 105000108793
    $8.06
    NUT-HEX M6 - 5000108793×1
  • 115000151324
    $8.06
    WASHER-FLAT 6.4 - 5000151324×1
  • 125000129032
    $117.79
    MANIFOLD-EXHAUST - 5000129032×1
  • 135000151587
    $11.94
    ROD-EXHAUST PIPE M6 - 5000151587×1
  • 145000108793
    $8.06
    NUT-HEX M6 - 5000108793×1
  • 155000107401
    $8.06
    WASHER 6.4 - 5000107401×1
  • 165000151387
    $8.06
    SCREW-M6X12 8.8 A3C - 5000151387×2
  • 175000202349Not stocked
    Heat shield×1
