DPU 3750Hts US

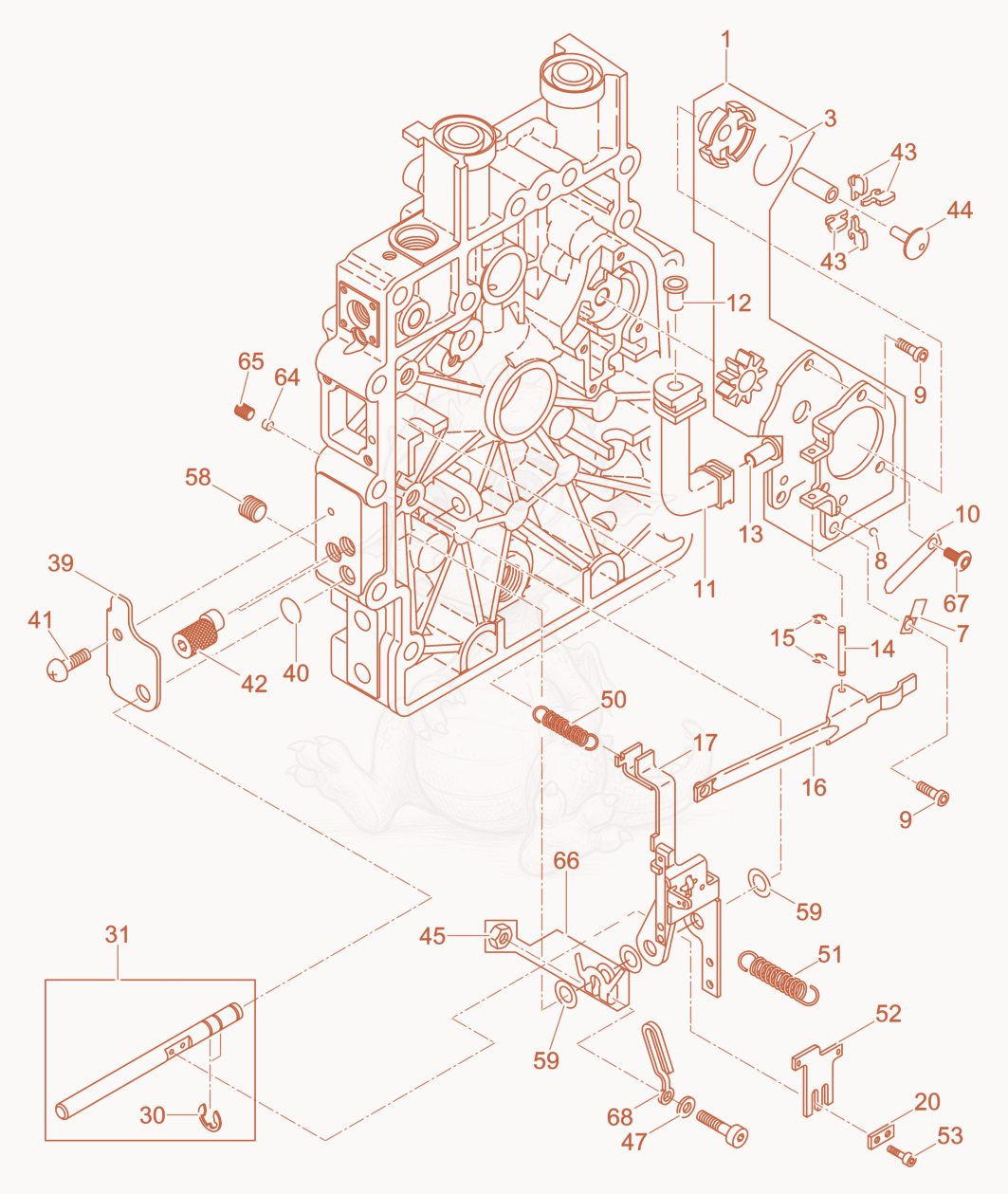

DPU3750HTSUS Oil pump-Governor-Adjustment R.P.M. Diagram
- PUMP-OIL - 5000207031×1
- RING-SNAP - 5000207032×1
- STRAP-RETAINING - 5000108778×1
- BALL 3.5MM - 5000108779×1
- SCREW-ALLEN M5X12 - 5000151308×3
- SPRING-FLAT 0.4MM - 5000108777×1
- TUBE-SUCTION,OIL - 5000108775×1
- INSERT-TUBE - 5000108774×1
- INSERT-TUBE - 5000108776×1
- SHAFT - 5000108781×1
- CLIP-CIRCLE - 5000108780×2
- Lever - 5000108785×1
- LEVER-GOVERNOR - 5000151316×1
- PLATE-INTERMEDIATE - 5000108789×1
- CLIP-CIRCLE 7 - 5000151327×2
- Shaft - 5000217601×1
- O-RING 8X2 - 5000108801×1
- SCREW M5X12 -10.9 ZN - 5000151328×1
- SCREW-ECCENTRIC - 5000129004×2
- WEIGHT-GOVERNOR - 5000207034×4
- SLEEVE-GOVERNOR - 5000108773×1
- NUT M5-8 A3C - 5000129020×1
- WASHER 5.3, A3C - 5000129517×1
- SCREW M5X25 8.8 - 5000151333×1
- SPRING-TENSION - 5000209739×1
- 515200022006Not stockedGovernor spring×1
- CONTROL-STOP - 5000108787×1
- SCREW-ALLEN M3X8 - 5000108788×2
- SCREW-GRUB M10X10 A3C - 5000151353×1
- SHIM 8X14X1 - 5000151354×3
- Plug - 5000226321×1
- Threaded pin - 5000226322×1
- 665100038981Not stockedStop cpl.×1
- Countersunk screw M5x12 - 5100013784×1
- 685100038982Not stockedSpring×1
