DPU 3760Hets

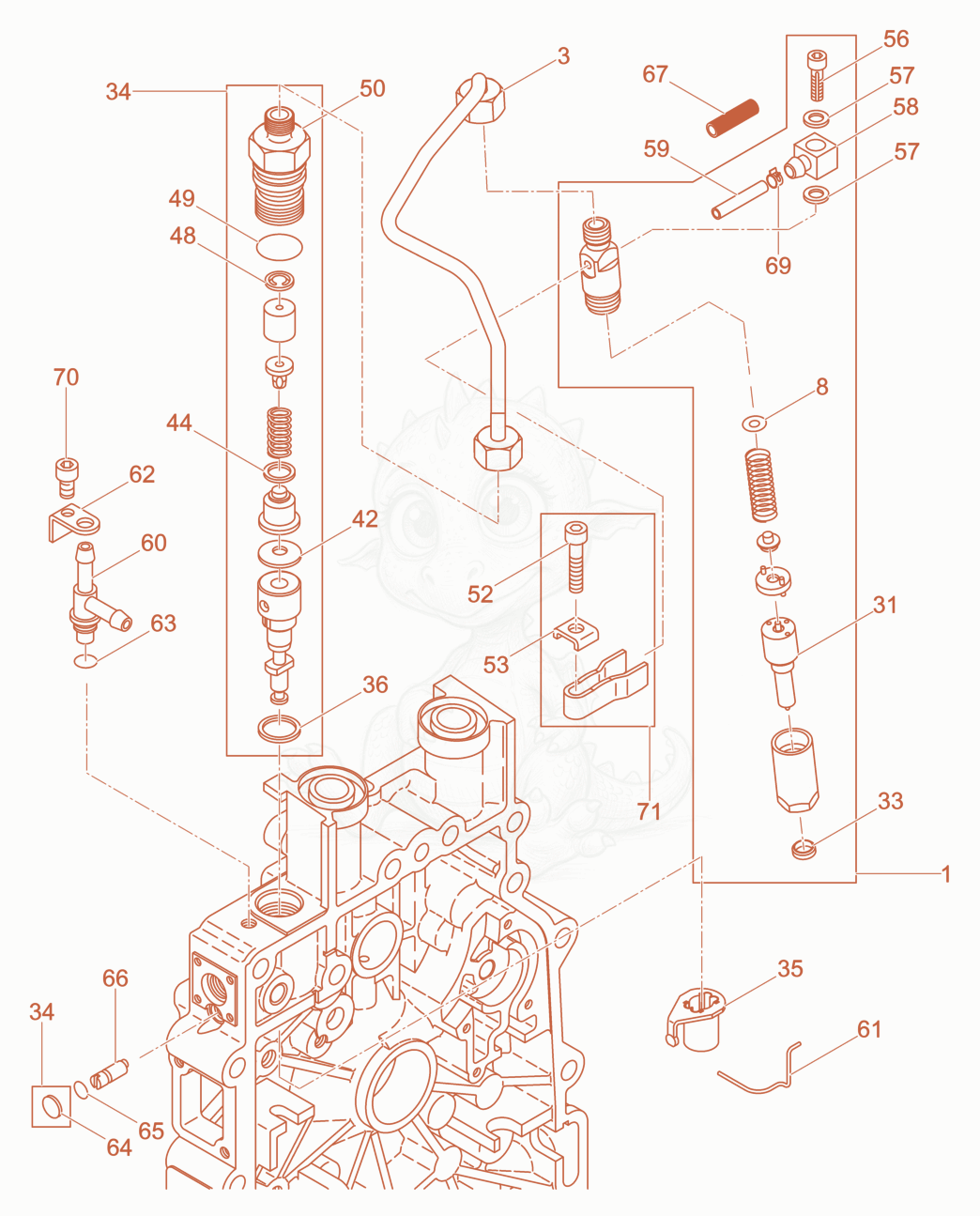

DPU3760HETS Injection Equipment Diagram
- 15100073069Not stockedInjection valve cpl.×1
- PIPE-FUEL PRESSURE - 5000227672×1
- SHIM 1.94 - 5000151417×1
- SHIM 1.90 - 5000151416×1
- SHIM 1.84 - 5000151415×1
- SHIM 1.80 - 5000151414×1
- SHIM 1.74 - 5000151413×1
- SHIM 1.70 - 5000151412×1
- SHIM 1.64 - 5000151411×1
- SHIM 1.60 - 5000151410×1
- SHIM 1.54 - 5000151409×1
- SHIM 1.50 - 5000151408×1
- SHIM 1.44 - 5000151407×1
- SHIM 1.40 - 5000151406×1
- SHIM 1.34 - 5000151405×1
- SHIM 1.30 - 5000151404×1
- SHIM 1.24 - 5000151403×1
- SHIM 1.20 - 5000151402×1
- SHIM 1.14 - 5000151401×1
- SHIM 1.10 - 5000151400×1
- SHIM 1.04 - 5000151399×1
- SHIM 1.0 - 5000151398×1
- NOZZLE - 5000227681×1
- WASHER-JOINT,INJECTOR - 5000108805×1
- PUMP-INJECTION - 5000227670×1
- SLEEVE-CONTROL - 5000108806×1
- SHIM 14X18X0.6 - 5000108813×1
- SHIM 14X18X0.5 - 5000108812×1
- SHIM 14X18X0.4 - 5000108811×1
- SHIM 14X18X0.3 - 5000108810×1
- SHIM 14X18X0.2 - 5000108809×1
- WASHER-SPRING - 5000151427×1
- WASHER JOINT - 5000151428×1
- PLATE-VALVE - 5000205822×1
- O-RING 17X2 - 5000151429×1
- HOLDER-VALVE - 5000205821×1
- 525000129007Not stockedCheese head screw×1
- YOKE-RETAINING - 5000108808×1
- 565100038986Not stockedCheese head screw×1
- CONNECTOR-JOINT,A 4X8 - 5000151439×2
- CONNECTOR-NIPPLE - 5000108803×1
- FUEL-LINE,2.5 X 245 - 5000227675×1
- T-FITTING - 5000209682×1
- SPRING-HOLDING - 5000151369×1
- 625200022043Not stockedBracket×1
- O-RING 7.5 X 10.5 X 1.5 - 5000071130×1
- DISC 8,A1 - 5000108816×1
- O-Ring - 5000094905×1
- PIN-ECCENTRIC - 5000151433×1
- HOSE 145MM - 5000209721×1
- CLAMP-HOSE,6 - 5000215785×1
- 705000217620Not stockedCheese head screw×1
- 715100051943Not stockedInjector Holder×1
