Vibratory Plate DPU 4045Ye

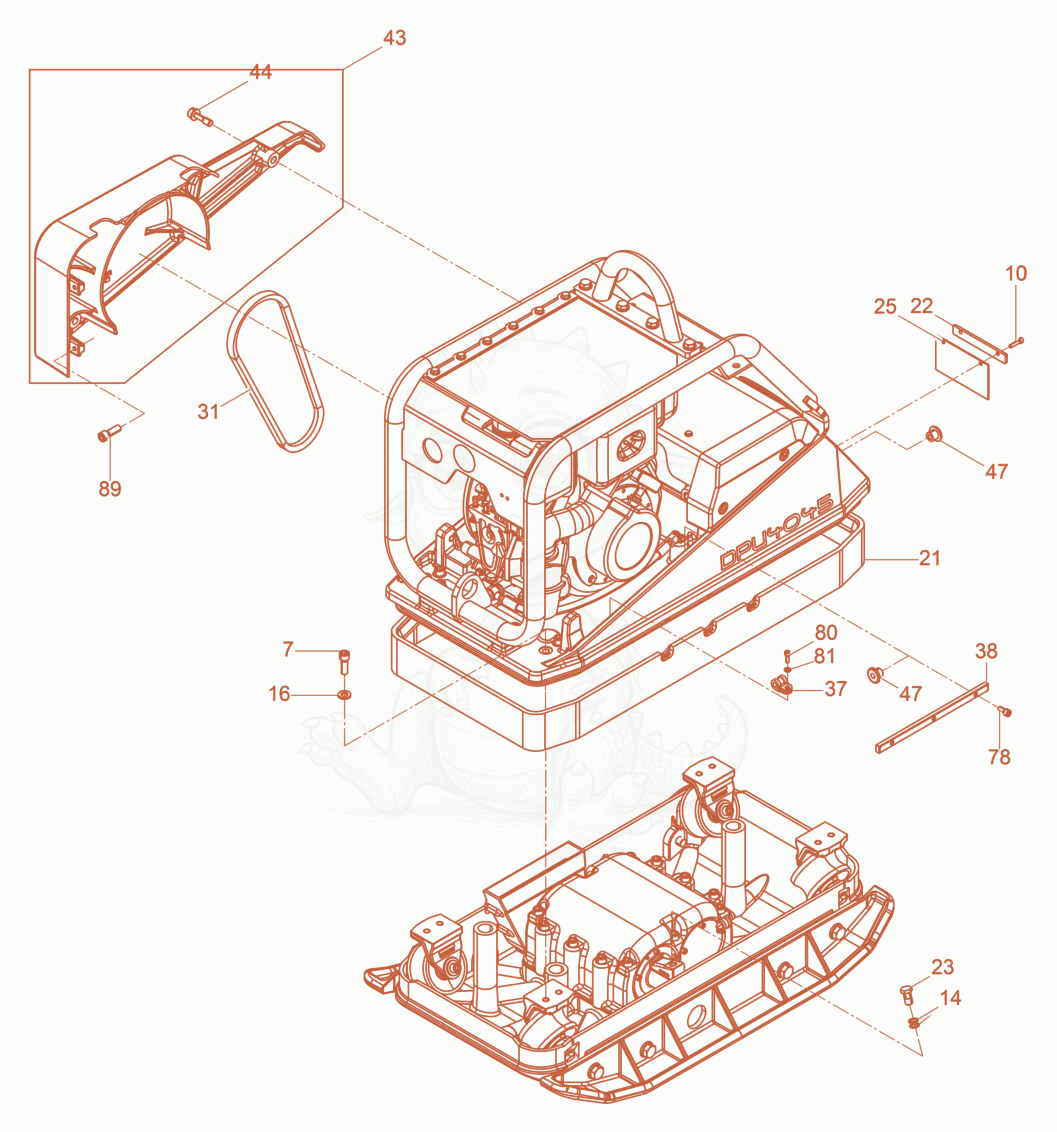

DPU4045YE Vibration Plate Diagram
- SCREW M12 X 35 SOC.HD. - 5000011528×8
- SCREW M6 X 25 SOC.HD. - 5000011550×2
- SEAL-RING 14 X 18 - 5000012624×2
- WASHER-LOCK HS12,HIGH TENSION - 5000021465×8
- GUARD - 5000039145×1
- PLATE-STRIP - 5000039206×1
- SCREW-HOLLOW 10-3 - 5000043201×1
- COVER - 5000043478×1
- BELT-V,975MM - 5000129814×1
- CLAMP-PIPE - 5000096691×2
- MOUNTING STRIP - 5000097110×1
- Belt guard - 5100002779×1
- SCREW-THIN SHANK - 5000220202×3
- BUSHING-GUIDE - 5000103880×2
- SCREW M8X18 SOC.HD. - 5000103962×6
- SCREW M6 X 18 SOC.HD. - 5000011552×2
- WASHER B6.4 FLAT - 5000010624×2
- SCREW-CAP,SOCKET HEAD - 5000129420×2
