DPU40Yeh EU

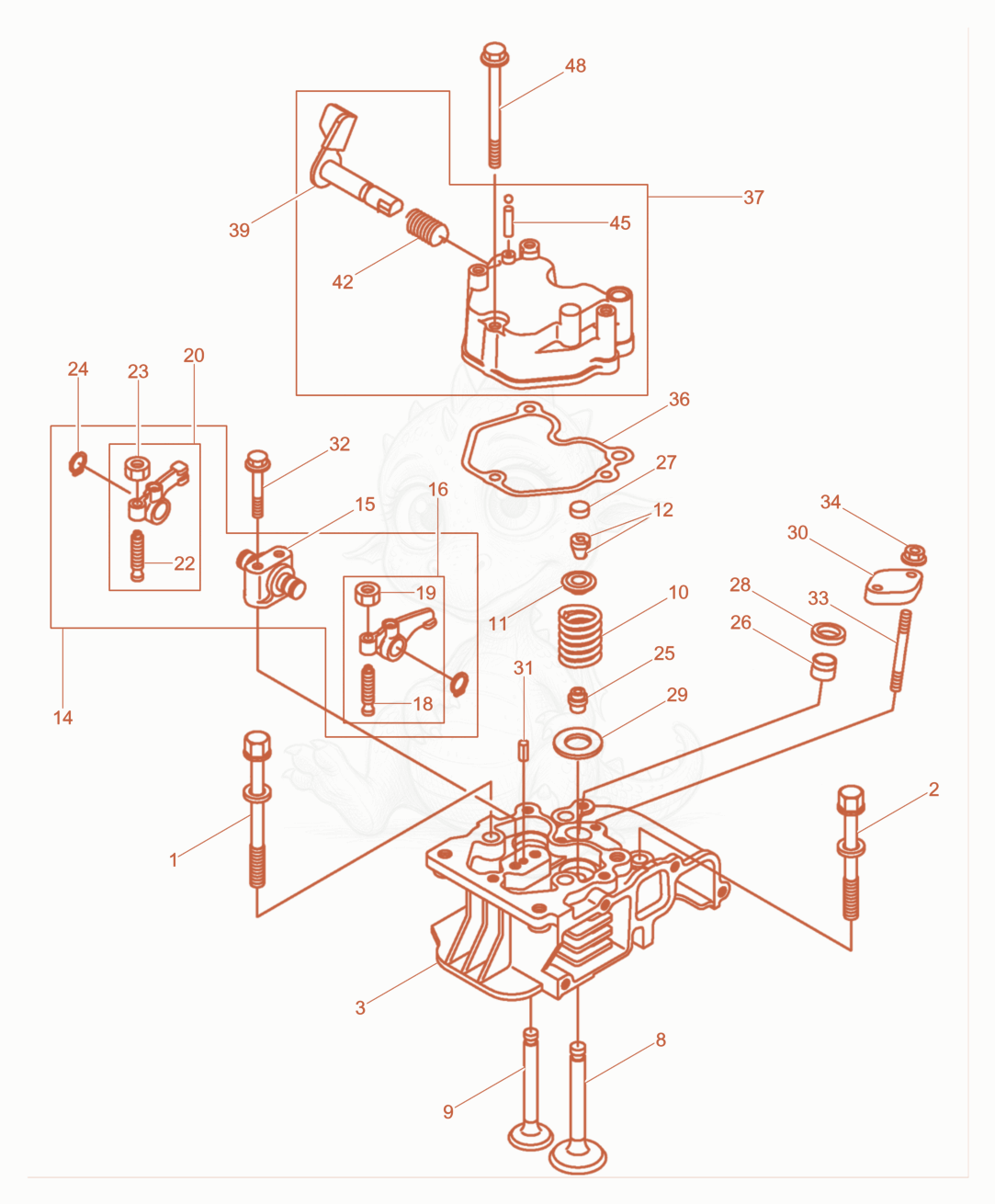

DPU40YEHEU Cylinder head Diagram
- Hexagonal head cap screw - 5000217834×2
- Hexagonal head cap screw - 5000217835×2
- Cylinder head - 5100061547×1
- 85100000729Not stockedIntake valve×1
- 95100000730Not stockedExhaust valve×1
- Spring - 5000217841×2
- Housing - 5000217842×2
- Spring holder - 5000217850×2
- Rocker arm cpl. - 5100000731×1
- Support - 5100000732×1
- Inlet rocker arm - 5100000733×1
- CONTROL-ADJUSTING SCREW - 5000096764×1
- NUT-LOCK - 5000119736×1
- Exhaust rocker arm - 5100000734×1
- CONTROL-ADJUSTING SCREW - 5000096764×1
- NUT-LOCK - 5000119736×1
- CLIP - 5000119737×2
- SEAL-VALVE STEM - 5100031963×2
- Gasket - 5000217896×1
- CAP - 5000085537×2
- 285100059780Not stockedValve seat×1
- Washer - 5000213231×2
- Bracket - 5000217849×1
- PIN 4 X 8 - 5000073641×1
- Screw - 5000217935×2
- STUD M6 X 55 - 5000073630×2
- NUT-M6 - 5000119722×2
- Gasket - 5000217846×1
- Cylinder head cover - 5000217851×1
- Shaft - 5000217837×1
- Spring - 5000217898×1
- PIN 3 X 16 - 5000073648×1
- 485100039148Not stockedFlange screw×3
