DPU40Yeh US

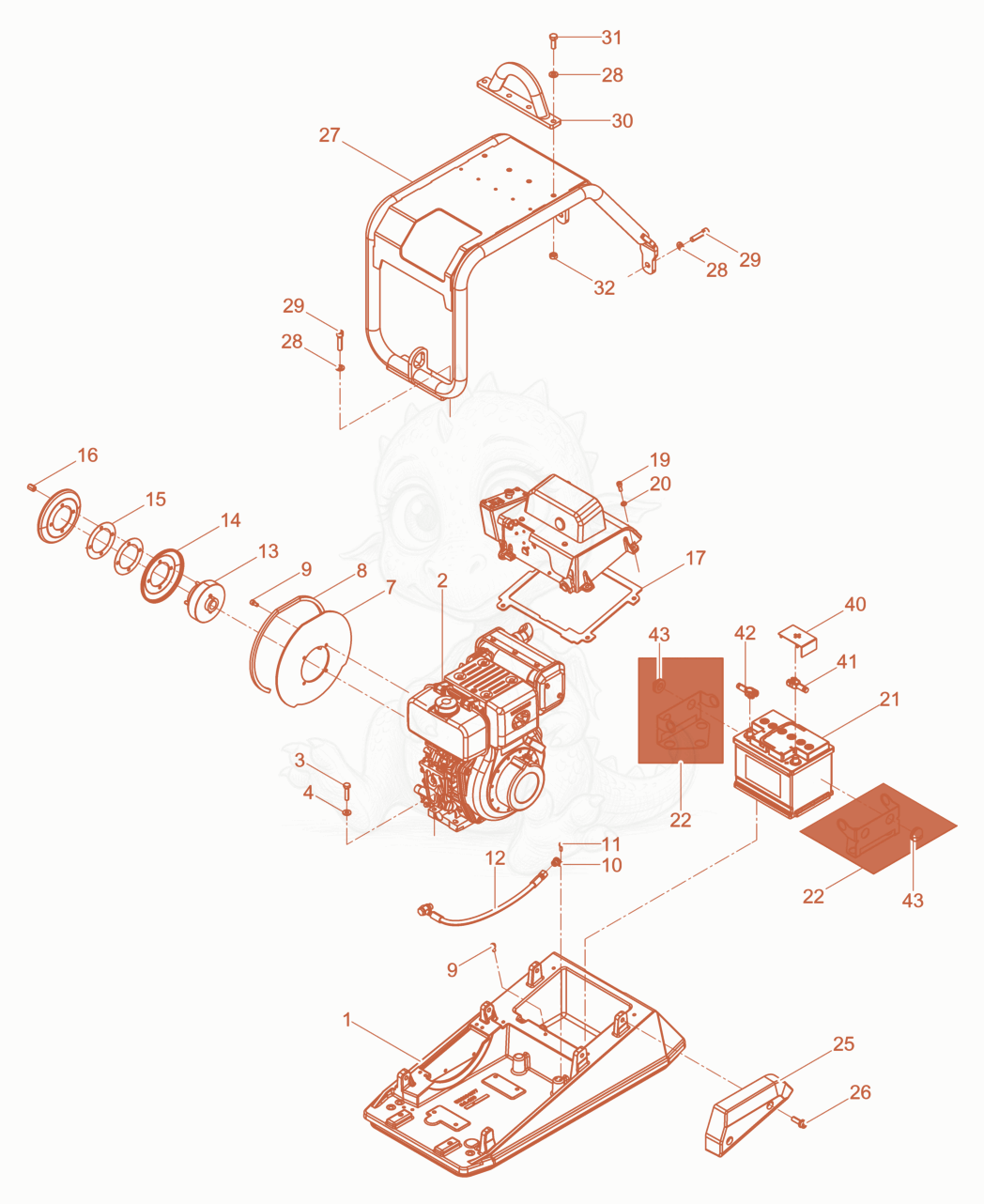

DPU40YEHUS Upper Mass cpl. Diagram

Exploded parts diagram of the Upper Mass cpl. of a Wacker Neuson DPU40YEHUS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100005497
    $2,563.61
    Upper Mass - 5100005497×1
  • 25100068715
    $5,440.92
    Diesel engine L70W6AJ1T8AAWK (DOC) - 5100068715×1
  • 35000011436
    $0.92
    SCREW M10 X 45 HX.HD. - 5000011436×4
  • 45000033988
    $0.41
    WASHER-LOCK 10 - 5000033988×4
  • 75000204558
    $174.09
    Plate - 5000204558×1
  • 85000204807
    $20.56
    SHOCKMOUNT - 5000204807×1
  • 95000011544
    $0.44
    SCREW M8 X 16 SOC.HD. - 5000011544×5
  • 105000206414
    $138.39
    FITTING-JOINT FIXATION - 5000206414×1
  • 115000011552
    $0.22
    SCREW M6 X 18 SOC.HD. - 5000011552×2
  • 125000216576
    $81.58
    Oil drain cpl. - 5000216576×1
  • 135000209499
    $563.72
    Centrifugal clutch - 5000209499×1
  • 145000209508
    $13.75
    V-belt pulley half - 5000209508×2
  • 155000058668
    $7.21
    SPACER-BELT PULLEY - 5000058668×2
  • 165000204806
    $5.13
    NUT-HEX - 5000204806×4
  • 175000220232
    $22.69
    Gasket - 5000220232×1
  • 195000010742Not stocked
    Washer×4
  • 205000012629
    $0.44
    SCREW M8 X 22 SOC.HD. - 5000012629×4
  • 215100021329
    $503.87
    Battery - 5100021329×1
  • 225100011287
    $85.29
    Battery protection cpl. - 5100011287×2
  • 255000220336
    $117.83
    side cap - 5000220336×1
  • 265000220325
    $2.20
    SCREW-SAFETY,M12 X 35 - 5000220325×2
  • 275100064559
    $1,440.73
    Protective frame - 5100064559×1
  • 285000021465
    $2.70
    WASHER-LOCK HS12,HIGH TENSION - 5000021465×8
  • 295000013569Not stocked
    Cheese head screw×4
  • 305000103930
    $109.31
    HOOK-LIFTING - 5000103930×1
  • 315000011422
    $0.84
    SCREW M12 X 35 HX.HD. - 5000011422×4
  • 325000010366
    $0.54
    NUT-LOCK M12X1.75 HEX - 5000010366×4
  • 405100011307
    $4.24
    Positive pol cover - 5100011307×1
  • 415100015202
    $21.62
    Pole Terminal Positive - 5100015202×1
  • 425100015203
    $22.48
    Pole Terminal Negative - 5100015203×1
  • 435000124255
    $5.64
    SHOCK ABSORBER - 5000124255×14
