DPU4545H

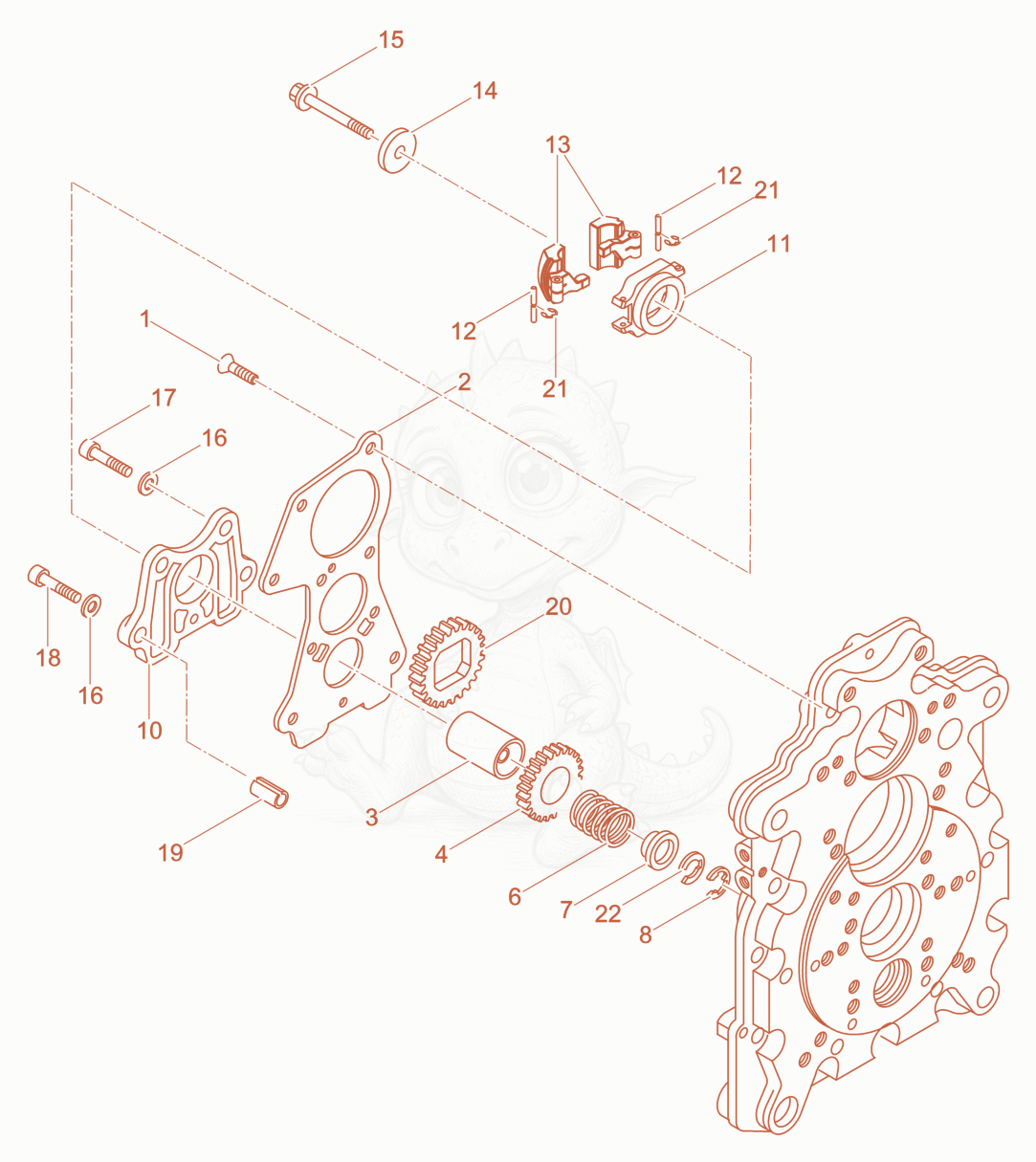

DPU4545H Oil pump, Governor Diagram
- SCREW-COUNTERSINK - 5000095000×5
- COVER-FLANGE - 5000094999×1
- BUSHING-BEARING - 5000095002×1
- Gear Wheel - 5000106532×1
- Spring - 5000095004×1
- HOLDER-SPRING - 5000095005×1
- RET.RING-EXT 5MM,E-TYP - 5002004956×1
- housing - 5000217097×1
- Support - 5000094995×1
- WEIGHT-CENTRIFUGAL - 5000094993×1
- WEIGHT-CENTRIFUGAL - 5000094992×1
- Washer - 5000094991×1
- Bolt - 5000094990×1
- WASHER-SPRING, A6 - 5000151290×5
- SCREW-ALLEN HD,M6X25-8.8 A3C - 5000129010×3
- SCREW-ALLEN,M6 X 30 - 5000202422×2
- PIN-ROLL, 8X12 - 5000107546×2
- Gear Wheel - 5000106531×1
- SLEEVE-DOWEL - 5000094994×2
- WASHER 0.5MM - 5000099416×1
- WASHER 0.3 - 5000217100×1
