DPU4545Heh

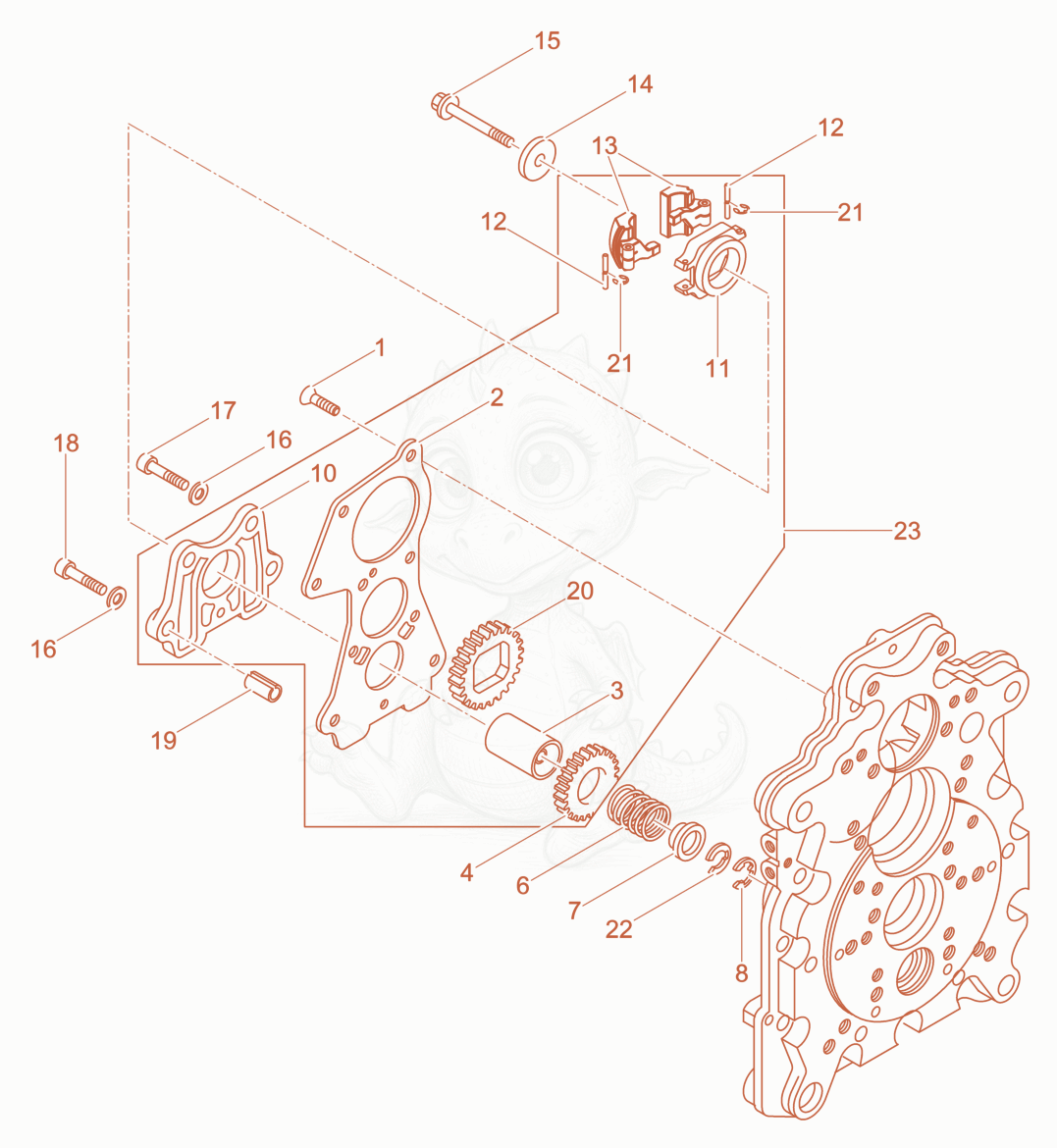

DPU4545HEH Oil pump, Governor Diagram
- SCREW-COUNTERSINK - 5000095000×5
- COVER-FLANGE - 5000094999×1
- BUSHING-BEARING - 5000095002×1
- Gear Wheel - 5000106532×1
- Spring - 5000095004×1
- HOLDER-SPRING - 5000095005×1
- RET.RING-EXT 5MM,E-TYP - 5002004956×1
- housing - 5000217097×1
- Support - 5100030400×1
- Bolt - 5100002771×1
- Eccentric weight - 5100002770×1
- Washer - 5000094991×1
- Bolt - 5000094990×1
- WASHER-SPRING, A6 - 5000151290×5
- SCREW-ALLEN HD,M6X25-8.8 A3C - 5000129010×3
- SCREW-ALLEN,M6 X 30 - 5000202422×2
- PIN-ROLL, 8X12 - 5000107546×2
- Gear Wheel - 5000106531×1
- Lock washer - 5100002772×2
- WASHER 0.5MM - 5000099416×1
- WASHER 0.3 - 5000217100×1
- Oil Pump - 5100030401×1
