DPU4545HEH US

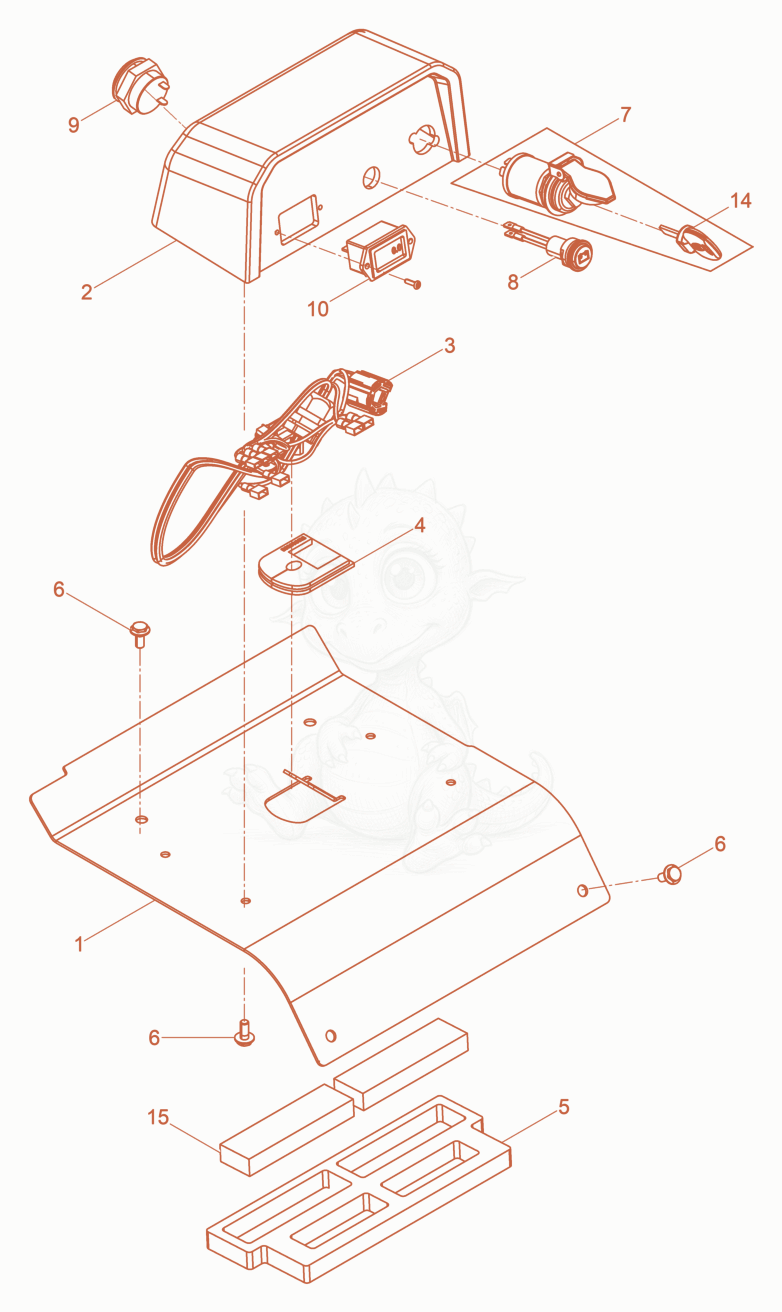

DPU4545HEHUS Battery cover cpl. Diagram
- Battery cover cpl - 5100020823×1
- Housing - 5100010085×1
- Helix cable - 5100009620×1
- Gasket - 5100009911×1
- Insulating cushion - 5100020556×1
- SCREW-CORRUGATED HD. - 5000210194×8
- Ignition starter switch - 5100011296×1
- LIGHT-IGNITION PILOT LED - 5000129797×1
- SIGNAL-ACCOUSTIC - 5000220234×1
- Working hour meter - 5100011309×1
- key - 5000220118×1
- filter mat - 5100020618×2
