V.Plate DPU 5045Heap

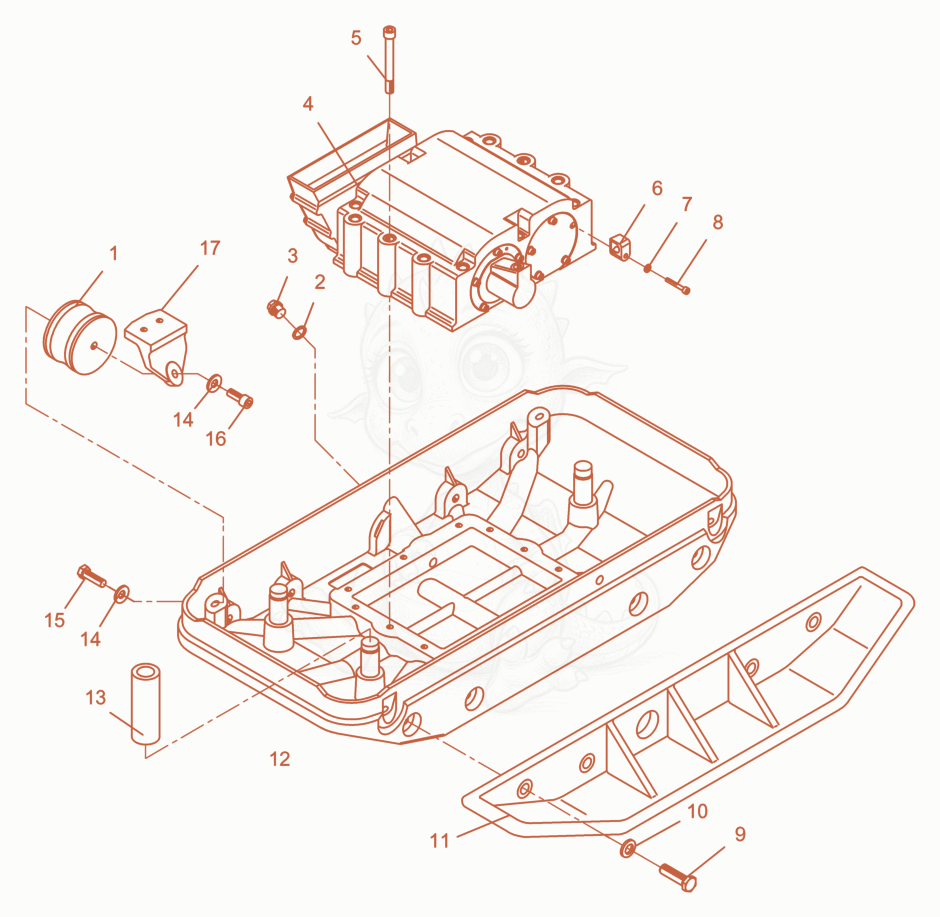

DPU5045H Baseplate cpl. Diagram

Exploded parts diagram of the Baseplate cpl. of a Wacker Neuson DPU5045H, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15002004814
    $74.83
    SHOCKMOUNT 100 X 58-45SH,FRM C - 5002004814×4
  • 25000019156
    $0.48
    SEAL-RING 18 X 24 - 5000019156×1
  • 35000068222
    $6.06
    PLUG M18 X 1.5 ST - 5000068222×1
  • 45000206550Not stocked
    Exciter cpl.×1
  • 55000094518
    $3.31
    SCREW M12 X 120 10.9 - 5000094518×12
  • 65000069727
    $2.55
    CLAMP LB318PP - 5000069727×1
  • 75000010624
    $0.03
    WASHER B6.4 FLAT - 5000010624×1
  • 85000011547
    $0.56
    SCREW M6 X 40 SOC.HD. - 5000011547×1
  • 95000039191
    $3.50
    SCREW M16 X 55 HX.HD. - 5000039191×8
  • 105000021988
    $3.05
    WASHER-LOCK HS16,HIGH TENSION - 5000021988×8
  • 115000043245Not stocked
    Extension plate×2
  • 125000102356
    $3,805.82
    BASEPLATE - 5000102356×1
  • 135000034442
    $17.86
    BUSHING-IMPACT,PLASTIC - 5000034442×3
  • 145000031565
    $0.48
    WASHER-LOCK A12 - 5000031565×8
  • 155000011421
    $0.40
    SCREW M12 X 40 HX.HD. - 5000011421×4
  • 165000011529
    $0.84
    SCREW M12 X 30 SOC.HD - 5000011529×4
  • 175000102105
    $145.41
    SUPPORT - 5000102105×4
