DPU5260Hehb+ US

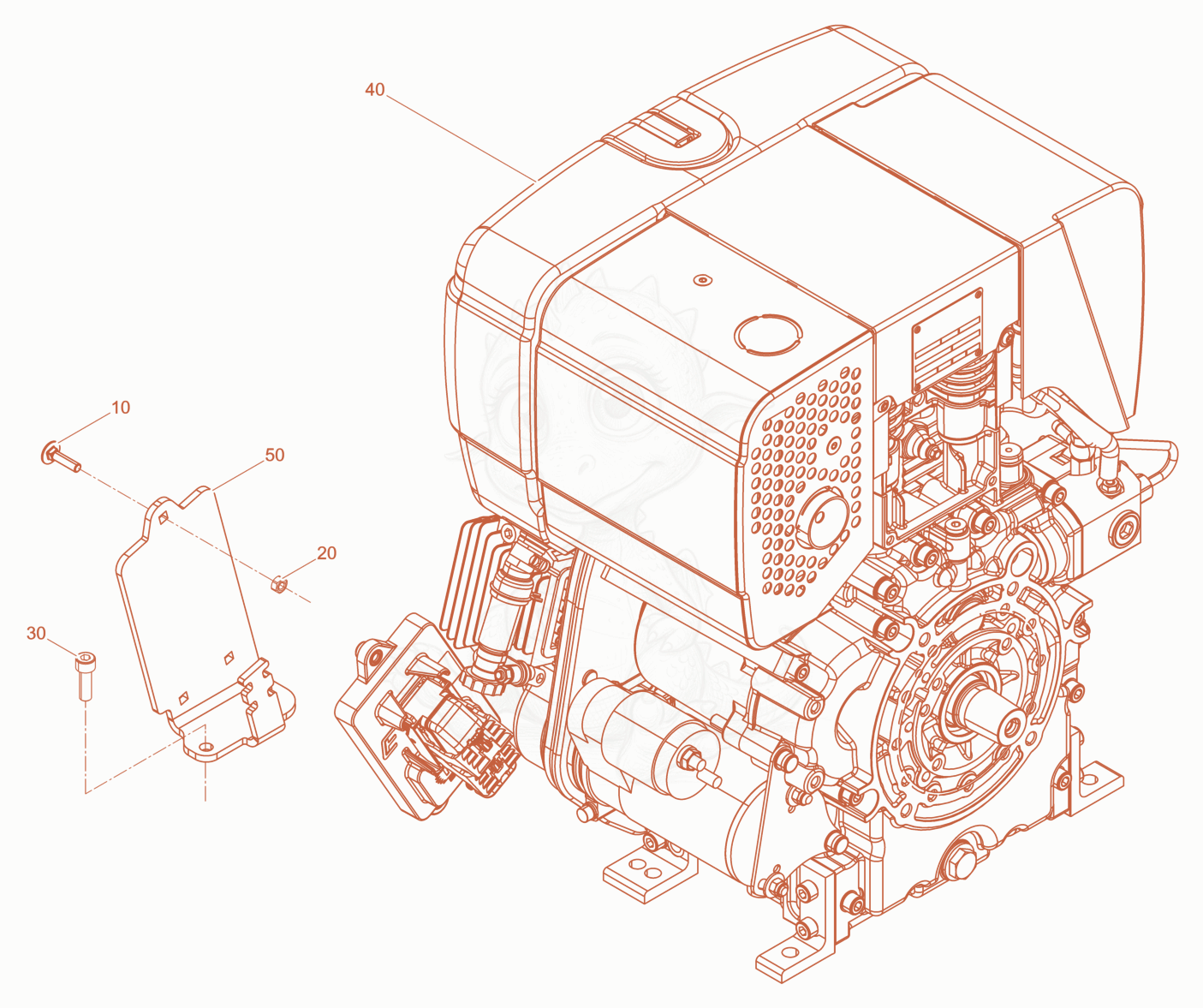

DPU5260HEHB+US Diesel engine 1B50E Diagram

Exploded parts diagram of the Diesel engine 1B50E of a Wacker Neuson DPU5260HEHB+US, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 105000164579
    $1.29
    Bolt-Carriage M6x25-4.6,Blk EP3 - 5000164579×3
  • 205000010880
    $0.03
    NUT M6 8,HEX - 5000010880×3
  • 305000011542
    $0.37
    SCREW M8 X 25 SOC.HD. - 5000011542×2
  • 405100057165Not stocked
    Diesel engine×1
  • 505100058147Not stocked
    Fixing plate×1
