V.Plate DPU 6055H

DPU6055 Vibratory Plate cpl. Diagram

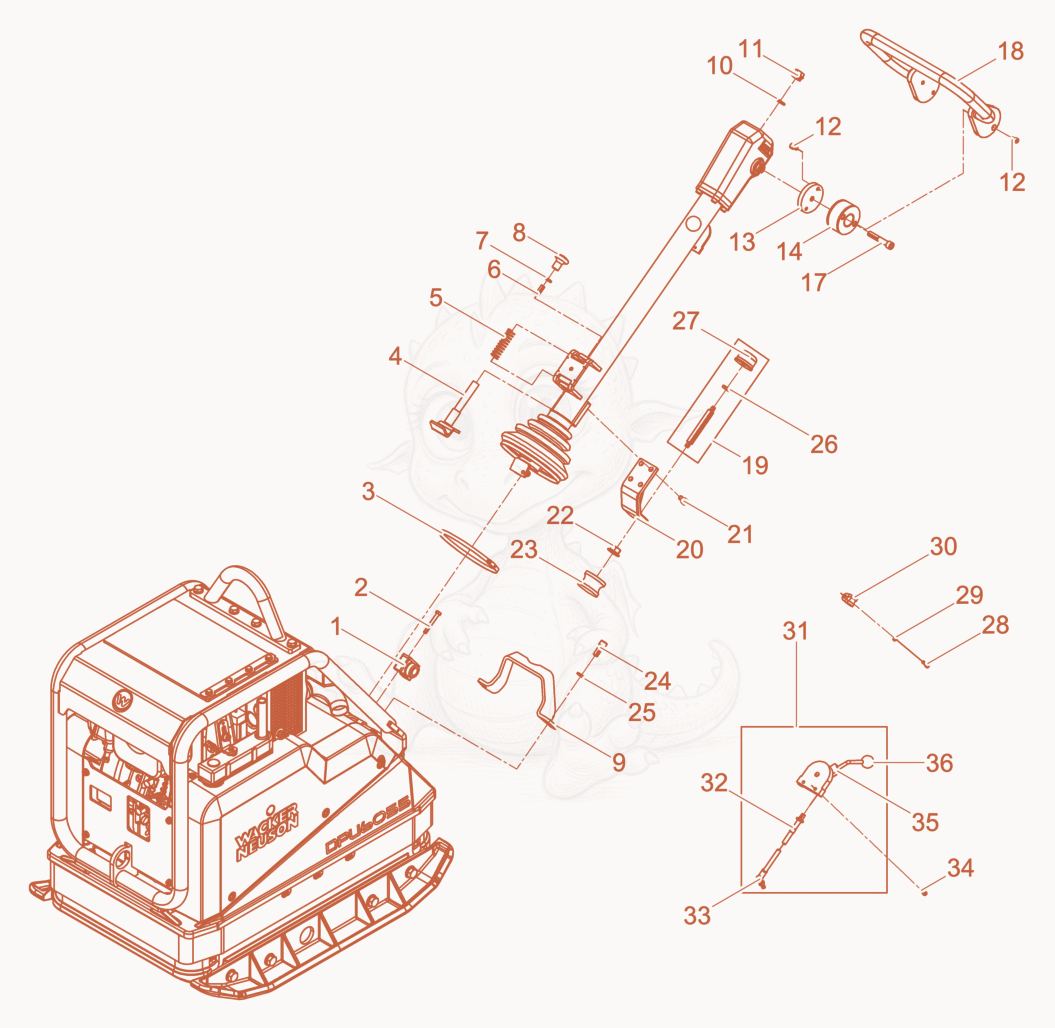

Exploded parts diagram of the Vibratory Plate cpl. of a Wacker Neuson DPU6055, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

15000039125Not stocked
Fixing device cpl.×2
25000011345
$0.69
SCREW M8 X 60 HX.HD. - 5000011345×4
35000045109
$6.19
CLAMP 160-180/9 SKZ W1 - 5000045109×1
45000200603
$43.55
PIN-RETAINING - 5000200603×1
55000033477
$4.51
SPRING D-210 COMPRESS. - 5000033477×1
65000045170
$1.24
SCREW-SET M10 X 30 SOC. - 5000045170×1
75000012976
$0.53
WASHER R11 - 5000012976×1
85000033621
$54.62
HANDLE - 5000033621×1
95000209142
$152.49
Bracket - 5000209142×1
105000032006
$2.09
SEAL-RING 26 X 31 - 5000032006×1
115000024838
$30.76
PLUG M26 X 1.5 HX.HD. - 5000024838×1
125000013574
$0.44
SCREW M8X12 SOC.HD - 5000013574×8
135000108437
$47.97
SHIM - 5000108437×2
145000215031
$53.24
Shockmount - 5000215031×2
175000011526
$1.50
SCREW M12 X 45 SOC.HD GR8.8 - 5000011526×2
185000214991
$835.44
Clamp - 5000214991×1
195000043928Not stocked
Threaded spindle cpl.×1
205000201983
$170.79
ANGLE - 5000201983×1
215000011535
$0.59
SCREW M10 X 25 SOC.HD. - 5000011535×4
225000202866
$1.38
hexagon nut - 5000202866×1
235000043233
$29.10
SHOCKMOUNT 60 X 40-40SH,FORM E - 5000043233×1
245000018087
$1.95
X-0017087 SCREW M12 X 30 - 5000018087×2
255000021465
$2.70
WASHER-LOCK HS12,HIGH TENSION - 5000021465×2
265000017091
$0.53
WASHER 10.5 FLAT - 5000017091×1
275000127085
$17.95
SHOCKMOUNT - 5000127085×1
285000011553
$0.15
SCREW M6 X 16 SOC.HD. - 5000011553×3
295000010624
$0.03
WASHER B6.4 FLAT - 5000010624×3
305000096691
$1.99
CLAMP-PIPE - 5000096691×3
315000103538
$325.82
LEVER-OPERATING - 5000103538×1
325000105951
$157.31
CABLE-THROTTLE - 5000105951×1
335000017498
$49.46
LL-JOINT AS10 - 5000017498×1
345000012373
$0.26
SCREW M6 X 22 SOC.HD. - 5000012373×2
355000105950
$92.46
LEVER-THROTTLE CONTROL - 5000105950×1
365000103942
$5.86
KNOB - 5000103942×1
