Vibratory Plate DPU 6555Heap

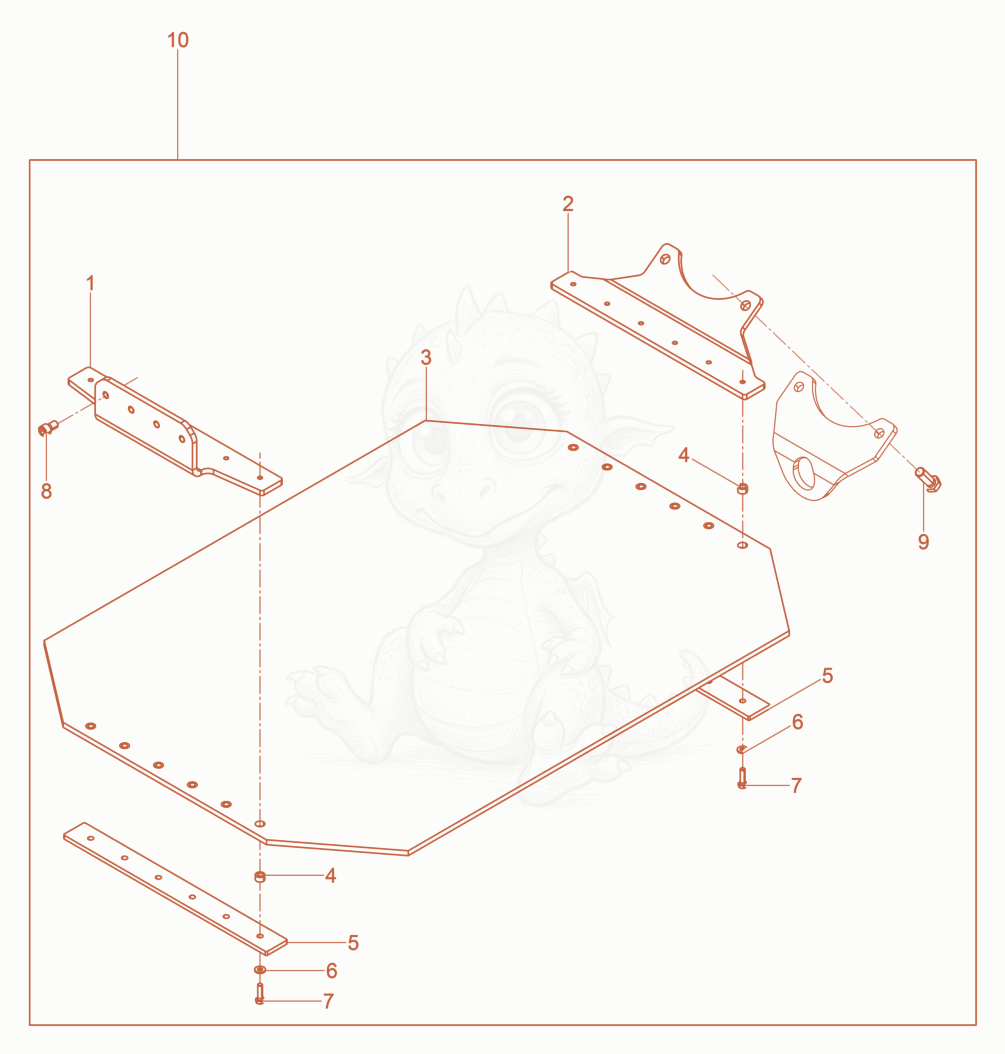

DPU6555HEAP Urethane Pad Kit Diagram

Exploded parts diagram of the Urethane Pad Kit of a Wacker Neuson DPU6555HEAP, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000205208
    $423.49
    ANGLE - 5000205208×1
  • 25000202883
    $338.89
    Angle - 5000202883×1
  • 35000207363Not stocked
    urethane plate×1
  • 45000047577Not stocked
    Bushing×12
  • 55000058358
    $154.28
    CLAMP-STRIP - 5000058358×2
  • 65000033198
    $0.32
    WASHER-LOCK B8 - 5000033198×12
  • 75000011456
    $0.29
    SCREW M8 X 30 HX.HD. - 5000011456×12
  • 85000011531
    $1.10
    SCREW M12 X 20 8.8,SOC - 5000011531×4
  • 95000011520Not stocked
    Hexagonal head cap screw×2
  • 105100001217Not stocked
    Urethane Pad Kit×1
