DPU6555Hecs

DPU6555HECS Air Cleaner Diagram

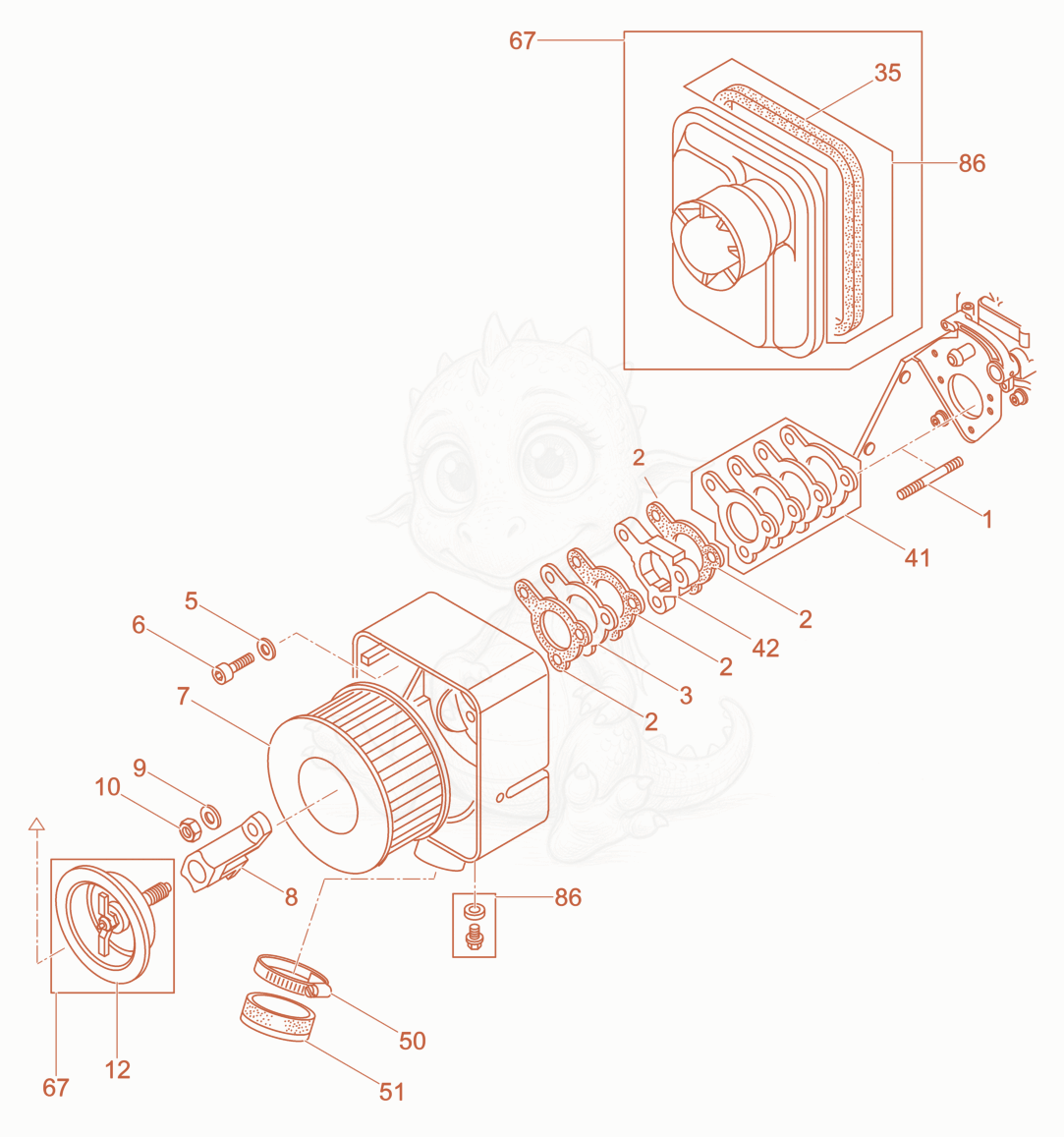

Exploded parts diagram of the Air Cleaner of a Wacker Neuson DPU6555HECS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000207815
    $11.94
    STUD M8 X 60 - 5000207815×2
  • 25000095088
    $7.02
    Seal - 5000095088×3
  • 35000095089
    $17.38
    FLANGE-INSULATING - 5000095089×1
  • 55200022048Not stocked
    Spring washer×1
  • 65000207614
    $8.06
    SCREW M8X45,SOC.HD. - 5000207614×1
  • 75100051954
    $22.36
    Air Cleaner - 5100051954×1
  • 85000099793
    $39.96
    HOLDER - 5000099793×1
  • 95000151553
    $7.71
    WASHER-FLAT 8.4 ST A3C - 5000151553×2
  • 105000129516
    $8.06
    NUT M8,HEX - 5000129516×2
  • 125100002774
    $98.18
    Filter Cover cpl. - 5100002774×1
  • 355000097831
    $101.84
    Seal - 5000097831×1
  • 415000097840
    $21.67
    Gasket Set - 5000097840×1
  • 425000097833
    $36.84
    FLANGE-INTERMEDIATE - 5000097833×1
  • 505000099804
    $20.00
    Clamp - 5000099804×1
  • 515000099803
    $34.76
    CAP-PROTECTIVE - 5000099803×1
  • 675100002777
    $229.90
    Cover with Cyclone - 5100002777×1
  • 865100051955Not stocked
    Air filter housing×1
