DPU6555Hehap

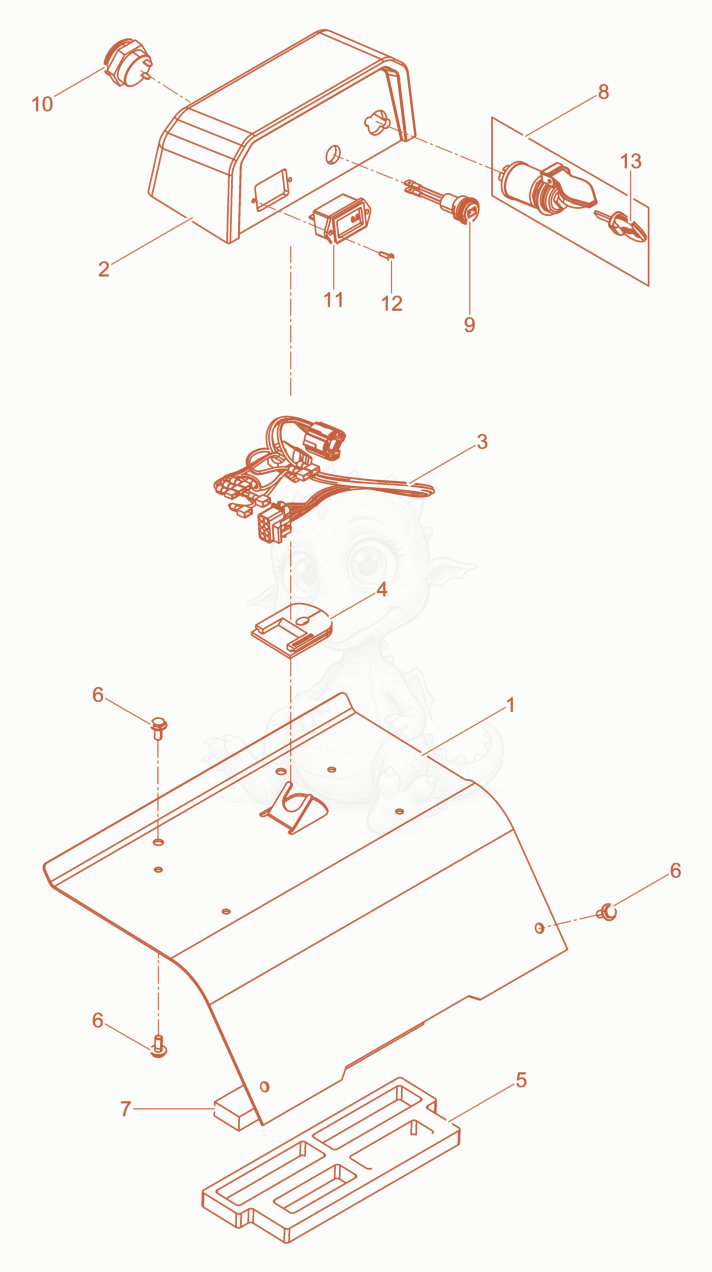

DPU6555HEHAP Battery cover cpl. Diagram

Exploded parts diagram of the Battery cover cpl. of a Wacker Neuson DPU6555HEHAP, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100079561Not stocked
    Battery cover×1
  • 25100010085
    $355.61
    Housing - 5100010085×1
  • 35100009620
    $154.98
    Helix cable - 5100009620×1
  • 45100009911
    $4.91
    Gasket - 5100009911×1
  • 55100020556
    $29.70
    Insulating cushion - 5100020556×1
  • 65000210194
    $0.60
    SCREW-CORRUGATED HD. - 5000210194×8
  • 75100020618
    $2.66
    filter mat - 5100020618×2
  • 85100011296
    $69.01
    Ignition starter switch - 5100011296×1
  • 95000129797
    $29.87
    LIGHT-IGNITION PILOT LED - 5000129797×1
  • 105000220234
    $39.37
    SIGNAL-ACCOUSTIC - 5000220234×1
  • 115100011309
    $139.94
    Working hour meter - 5100011309×1
  • 125100021209Not stocked
    Blind rivet×2
  • 135100011296
    $69.01
    Ignition starter switch - 5100011296×1
