Vibration Plate DPU 9070

DPU9070 1st and 3rd Power Transmission Diagram

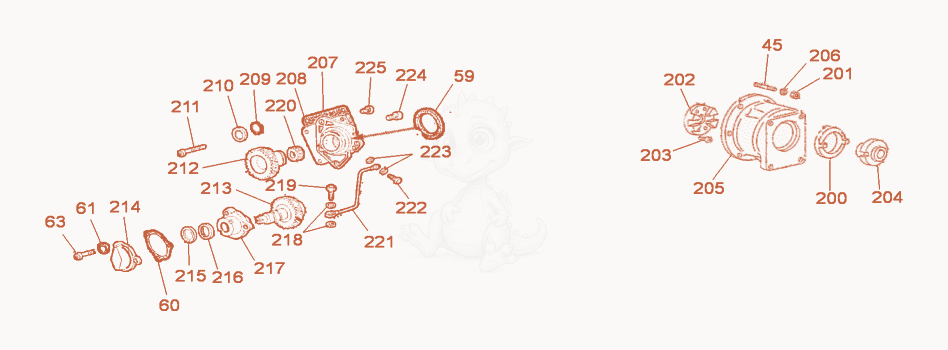

Exploded parts diagram of the 1st and 3rd Power Transmission of a Wacker Neuson DPU9070, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 455000084167
    $7.50
    STUD M8 X 30 - 5000084167×6
  • 595000097907
    $10.59
    O-Ring - 5000097907×1
  • 605000063683
    $1.43
    GASKET - 5000063683×1
  • 615000082292
    $1.54
    Washer - 5000082292×3
  • 635000084168
    $3.10
    SCREW M8 X 55 - 5000084168×3
  • 2005000083668
    $300.10
    ADAPTER-INT.COUPLING - 5000083668×1
  • 2015000082140
    $1.54
    NUT M8 - 5000082140×6
  • 2025000099776
    $585.34
    Flange - 5000099776×1
  • 2035000083671
    $2.57
    Bolt - 5000083671×4
  • 2045000099777
    $620.08
    Flange - 5000099777×1
  • 2055000099778
    $373.04
    Housing - 5000099778×1
  • 2065000082288
    $1.30
    WASHER - 5000082288×6
  • 2075000063723
    $2.56
    GASKET-PINION FLANGE - 5000063723×1
  • 2085000128991Not stocked
    Slide bearing×1
  • 2095000203347
    $2.84
    Retaining ring - 5000203347×1
  • 2105000096464
    $8.91
    Washer - 5000096464×1
  • 2115000128949Not stocked
    Screw×2
  • 2125000096463
    $255.44
    GEAR-DRIVE - 5000096463×1
  • 2135000096460Not stocked
    Pinion shaft×1
  • 2145000063719
    $59.85
    COVER-PINION HOUSING - 5000063719×1
  • 2155000203348
    $1.54
    Retaining ring - 5000203348×1
  • 2165000063720
    $13.48
    washer - 5000063720×1
  • 2175000063718
    $125.41
    HOUSING-PINION SHAFT - 5000063718×1
  • 2185000082184
    $1.54
    WASHER-COPPER - 5000082184×2
  • 2195000096461
    $35.73
    FITTING-BANJO - 5000096461×1
  • 2205000128950Not stocked
    Connector×1
  • 2215000096462
    $62.93
    TUBE-LUBRICATION - 5000096462×1
  • 2225000203349
    $27.68
    BOLT-UNION - 5000203349×1
  • 2235000083995
    $1.30
    WASHER-COPPER - 5000083995×2
  • 2245000083671
    $2.57
    Bolt - 5000083671×2
  • 2255000084169
    $1.83
    SCREW M8 X 20 - 5000084169×1
