DPU90rLem770

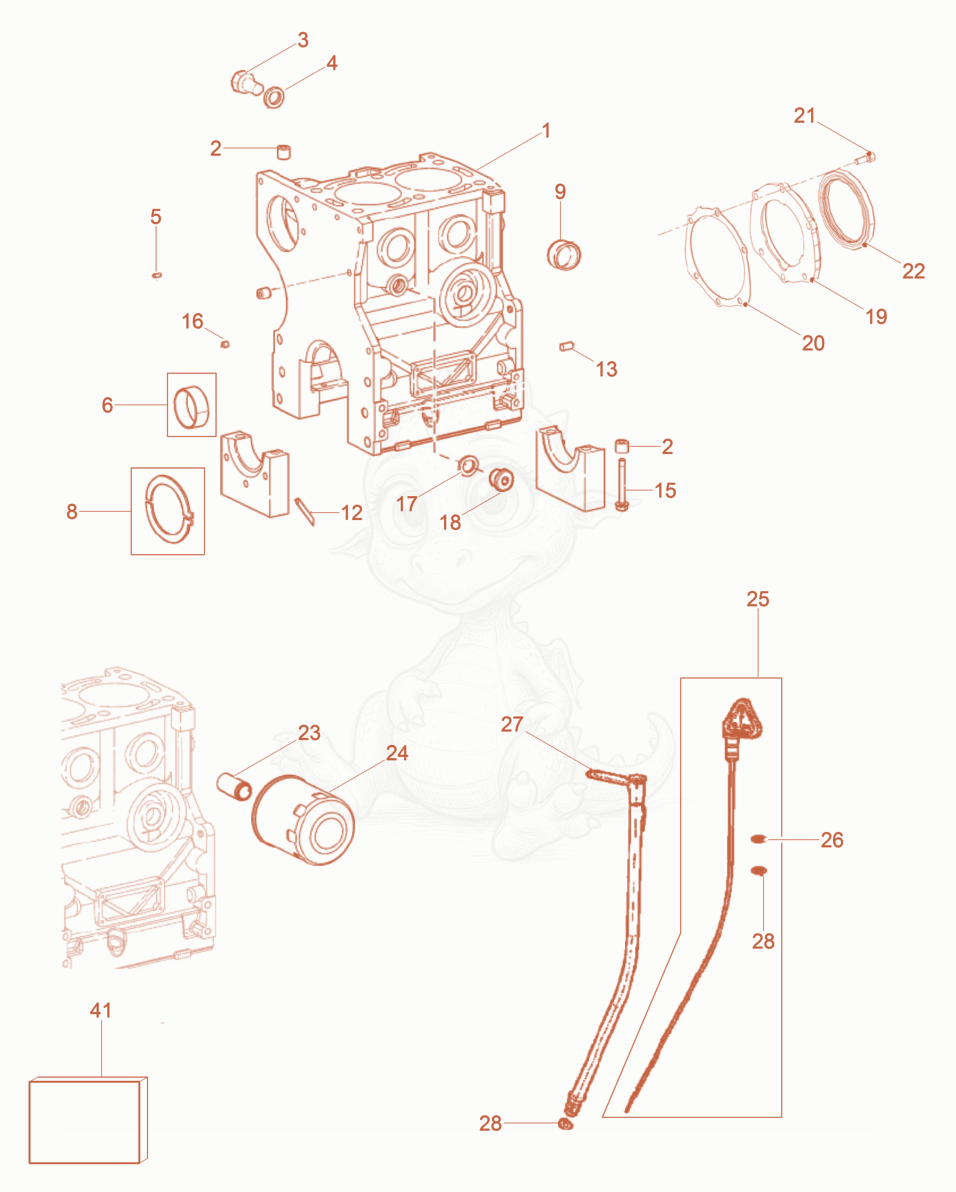

DPU90RLEM770US Crankcase Diagram
- Crankcase - 5100026268×1
- sleeve - 5000159257×2
- Screw - 5000206229×1
- WASHER-COPPER - 5000082184×1
- Pin - 5000215522×1
- BEARING-SUPPORT (-0.50) - 5000155704×3
- BEARING-SUPPORT (STD) - 5000155702×3
- BEARING-SUPPORT (-0.25) - 5000155703×3
- WASHER-THRUST - 5000159486×2
- WASHER .10 - 5000159487×2
- WASHER .20 - 5000159488×2
- PLUG - 5000082335×2
- GASKET - 5000159288×4
- PIN-DOWEL - 5000159360×2
- screw - 5000159480×6
- plug - 5000159456×1
- WASHER-COPPER - 5000159299×1
- Plug - 5000215530×1
- FLANGE-FLYWH.SIDE,CRANKSHAFT - 5000155700×1
- GASKET - 5000217807×1
- SCREW M6 X 1 X 16 - 5000159467×6
- 225000155701Not stockedRotary shaft seal×1
- CONNECTOR-OIL FILTER - 5000159341×1
- 245100026398Not stockedOil filter×1
- Dip stick - 5100026399×1
- O-ring - 5100026400×3
- Pipe - 5100026401×1
- O-RING 6.5 X 2 - 5000063695×2
- Gasket set Crankcase - 5100026269×1
