DS70

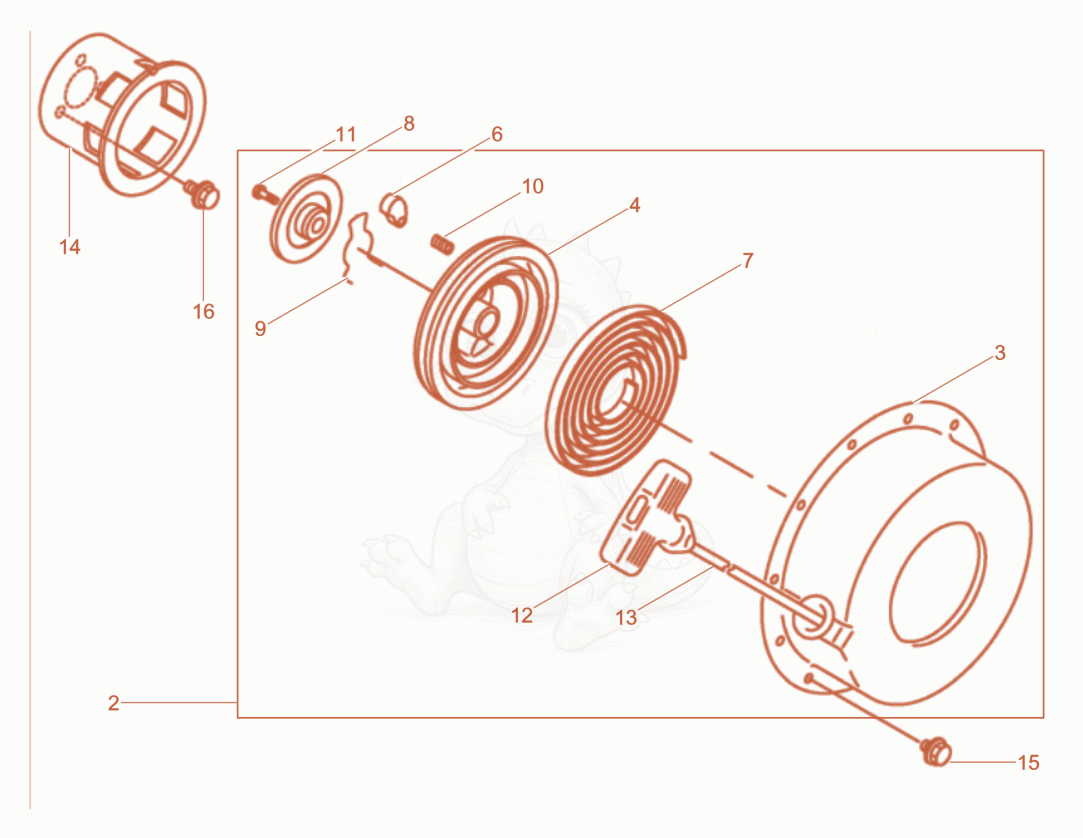

DS70Y13IN Recoil starter Diagram
- Recoil starter - 5000213245×1
- Starter housing - 5000213246×1
- Reel - 5000213247×1
- Ratchet - 5000213252×1
- SPRING,SPIRAL - 5000210548×1
- COVER,RATCHET - 5000210549×1
- spring - 5000210550×1
- SPRING-RETURN - 5000210551×1
- screw - 5000210552×1
- KNOB-STARTER - 5000210553×1
- Rope - 5000213250×1
- Pulley - 5000213248×1
- BOLT-M6 X 8 - 5000119905×6
- BOLT-M6 X 12 - 5000119897×3
