DS720-RAMMER,11 SHOE,RED

DS720 Machine cpl. Diagram

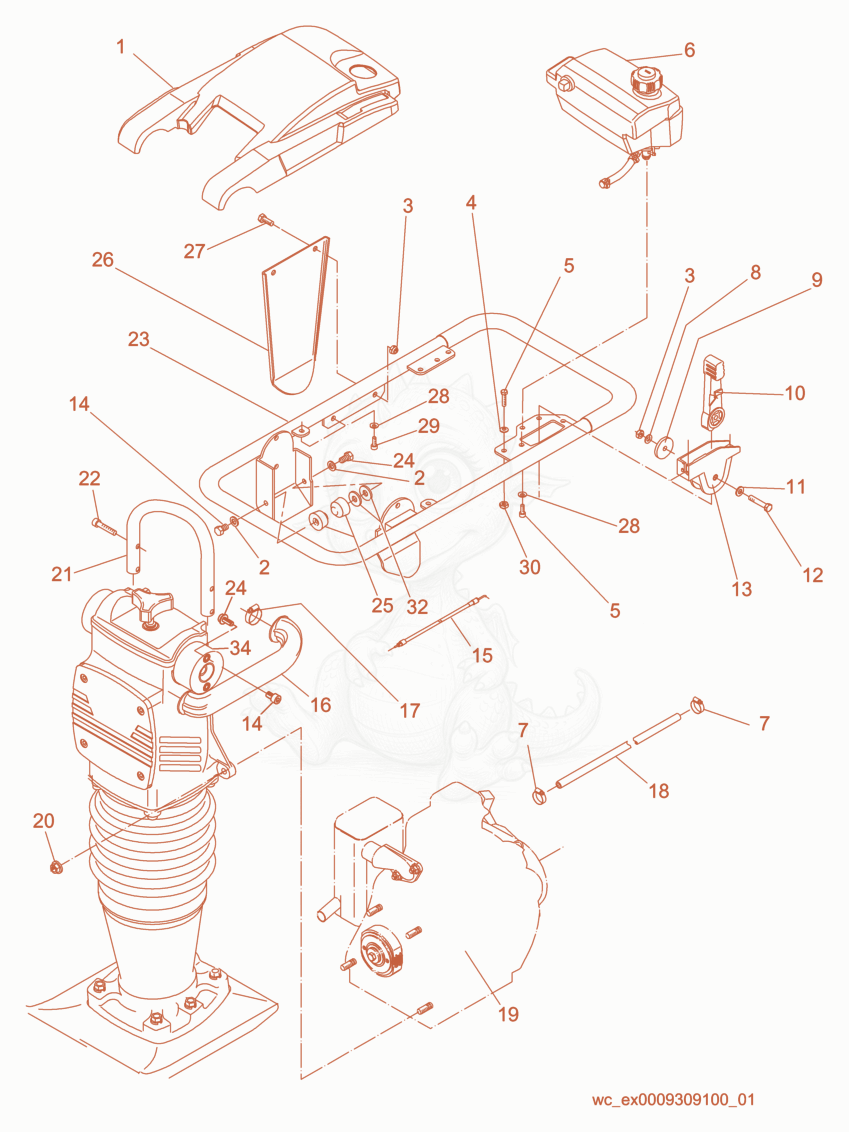

Exploded parts diagram of the Machine cpl. of a Wacker Neuson DS720, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

15000154702
$105.54
COVER-SILNCNG,DS70,RED RAL3020 - 5000154702×1
25000010622
$0.10
WASHER-FLAT,M8,ZINC - 5000010622×2
35000010367
$0.10
NUT-LOCK M8 HEX - 5000010367×3
45000010624
$0.03
WASHER B6.4 FLAT - 5000010624×3
55000011551
$0.20
SCREW M6 X 20 SOC.HD. - 5000011551×2
65000107171
$338.88
TANK-FUEL,COMPLETE - 5000107171×1
75000074552
$0.73
CLAMP .390/.327,SIZE B, - 5000074552×2
85000033198
$0.32
WASHER-LOCK B8 - 5000033198×1
95000105194
$1.51
WASHER M8 X 1.5 - 5000105194×1
105000111202
$13.22
CONTROL-THROTTLE - 5000111202×1
115000010622
$0.10
WASHER-FLAT,M8,ZINC - 5000010622×1
125000011341
$0.36
SCREW M8 X 40 HX.HD. - 5000011341×1
135000108414
$16.83
NLA MOUNT-THROTTLE CONTROL - 5000108414×1
145000012360
$0.12
SCREW M8 X 12 HX.HD. - 5000012360×5
155000108200
$30.19
CABLE-THROTTLE - 5000108200×1
165000106103
$29.08
TUBE-AIR DUCT - 5000106103×1
175000078844
$2.07
CLAMP,32/50 - 5000078844×2
185000114971
$20.39
KIT-FUEL HOSE RETURN - 5000114971×1
195000118381
$4,175.08
ENGINE-COMPL,AUTO DECMP,EPA - 5000118381×1
205000096087
$0.21
NUT M10 HEX.HD. - 5000096087×4
215000153282
$106.87
CABLE-CRANE LIFT ASSEMBLY - 5000153282×1
225000011540
$0.55
SCREW M8 X 35 SOC.HD. - 5000011540×4
235000156385
$586.31
Guide handle - 5000156385×1
245000011543
$0.39
SCREW M8 X 20 SOC.HD. - 5000011543×10
255000105056
$4.79
SHOCKMOUNT-M30X20,SPECIAL - 5000105056×2
265000058498
$30.39
PLATE-CARBURETOR PROTECTION P-5000176420 - 5000058498×1
275000087023
$0.35
SCREW M8 X 22,HX.HD,SER.FLG - 5000087023×2
285000058381
$0.13
WASHER-LOCK 6 FST - 5000058381×8
295000011553
$0.15
SCREW M6 X 16 SOC.HD. - 5000011553×8
305000010368
$0.10
NUT-LOCK M6 HEX. - 5000010368×2
325001005118
$1.03
WASHER-STEEL,FLAT - 5001005118×2
345000102274
$36.41
SHOCKMOUNT - 5000102274×2
