DT10

DT10 undercarriage Diagram

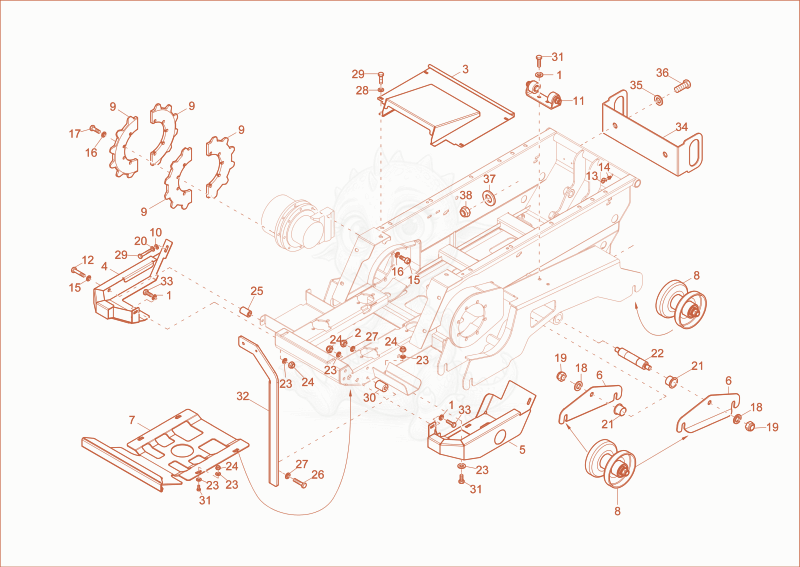

Exploded parts diagram of the undercarriage of a Wacker Neuson DT10, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000271022
    $1.90
    tension disc - 1000271022×6
  • 21000269291
    $1.55
    HEXAGON NUT - 1000269291×2
  • 31000276059
    $102.41
    Cover 1000276059×1
  • 41000276084
    $224.99
    Cover 1000276084×1
  • 51000276083
    $224.99
    Cover 1000276083×1
  • 61000276060
    $73.52
    BRACKET - 1000276060×4
  • 71000322442
    $376.79
    COVER - 1000322442×1
  • 81000368333Not stocked
    roller bearing×8
  • 91000351889Not stocked
    drive wheel×8
  • 101000015430Not stocked
    u-washer×2
  • 111000368336
    $355.99
    Roller - 1000368336×2
  • 121000085318
    $1.11
    6-Point screw M8x60-8.8 A2C-DIN931 - 1000085318×1
  • 131000282746
    $0.70
    PROTECTION CAP - 1000282746×1
  • 141000015475Not stocked
    grease nipple×1
  • 151000273328
    $1.55
    WASHER - 1000273328×1
  • 161000022016Not stocked
    spring washer×34
  • 171000269289
    $1.55
    CHEESE HEAD SCREW - 1000269289×18
  • 181000273292
    $1.90
    WASHER - 1000273292×4
  • 191000273286
    $1.99
    HEXAGON NUT - 1000273286×4
  • 201000015444Not stocked
    spring washer×2
  • 211000274028
    $11.76
    BUSHING - 1000274028×4
  • 221000276081
    $51.87
    PIN - 1000276081×2
  • 231000015431Not stocked
    washer×8
  • 241000269279
    $2.48
    hexagon nut - 1000269279×7
  • 251000276058
    $23.53
    distance piece - 1000276058×1
  • 261000047370
    $0.57
    hex screw - 1000047370×2
  • 271000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×4
  • 281000383668
    $1.24
    washer - 1000383668×4
  • 291000018400Not stocked
    hex screw×6
  • 301000276055
    $40.93
    distance piece - 1000276055×2
  • 311000015343Not stocked
    hex screw×10
  • 321000276056
    $119.61
    Holder 1000276056×1
  • 331000013008Not stocked
    hex screw×2
  • 341000424238Not stocked
    bracket×1
  • 351000021001
    $0.89
    WASHER - 1000021001×2
  • 361000015404Not stocked
    hex screw×2
  • 371000321904Not stocked
    washer×2
  • 381000424239Not stocked
    nut×2
