DV60

DV60 SWING BRACKET (OPTION) Diagram

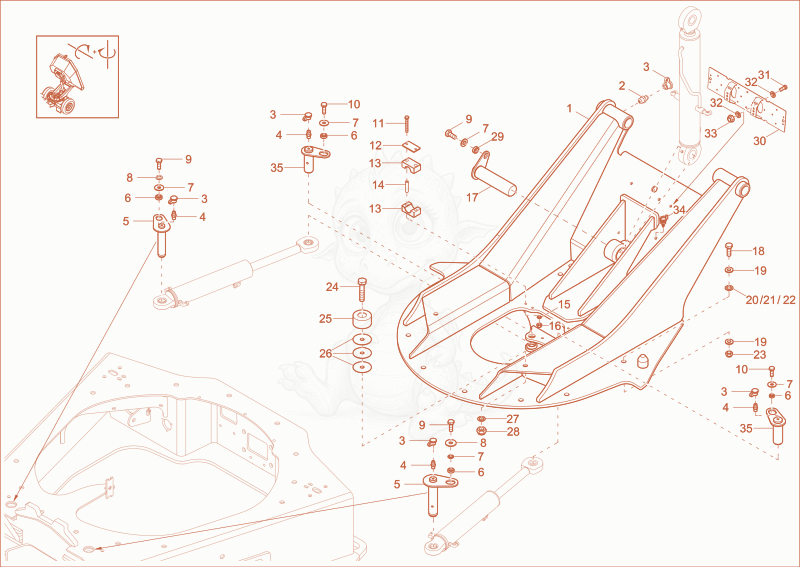

Exploded parts diagram of the SWING BRACKET (OPTION) of a Wacker Neuson DV60, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000405784Not stocked
    swivel console×1
  • 21000015476Not stocked
    grease nipple×2
  • 31000015480Not stocked
    cap grease nipple×6
  • 41000015475Not stocked
    grease nipple×4
  • 51000324713Not stocked
    slewing ram pin×2
  • 61000151025
    $3.03
    washer 18/12x5 - 1000151025×4
  • 71000092303
    $0.86
    Washer 10,5 St A2C - 1000092303×5
  • 81000015438Not stocked
    lock washer×2
  • 91000015364Not stocked
    hex screw×3
  • 101000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×2
  • 111000085313
    $0.78
    hex screw - 1000085313×4
  • 121000403719
    $24.50
    plate - 1000403719×2
  • 131000403715Not stocked
    rubber piece×4
  • 141000403717
    $33.62
    sleeve - 1000403717×4
  • 151000015430Not stocked
    u-washer×4
  • 161000357533Not stocked
    hexagon nut×4
  • 171000383583Not stocked
    cylinder pin×1
  • 181000085429
    $1.71
    HEX SCREW - 1000085429×12
  • 191000094994
    $3.70
    nordock washer NL16x30,7 - 1000094994×24
  • 201000344205
    $2.22
    spacer - 1000344205×5
  • 211000344204
    $2.11
    spacer - 1000344204×5
  • 221000344203
    $2.11
    spacer - 1000344203×5
  • 231000015423Not stocked
    hexagon nut×12
  • 241000047713Not stocked
    hex screw×2
  • 251000114225
    $64.21
    bucket support - 1000114225×2
  • 261000078491
    $3.36
    washer - 1000078491×3
  • 271000021001
    $0.89
    WASHER - 1000021001×2
  • 281000350326Not stocked
    hexagon nut×2
  • 291000325117
    $3.53
    washer - 1000325117×1
  • 301000416988
    $140.47
    bracket immatriculation plate - 1000416988×1
  • 311000015343Not stocked
    hex screw×2
  • 321000015431Not stocked
    washer×4
  • 331000357534Not stocked
    hexagon nut×2
  • 341000322839Not stocked
    fixing bracket×3
  • 351000325045Not stocked
    slewing ram pin×2
