DV90-2

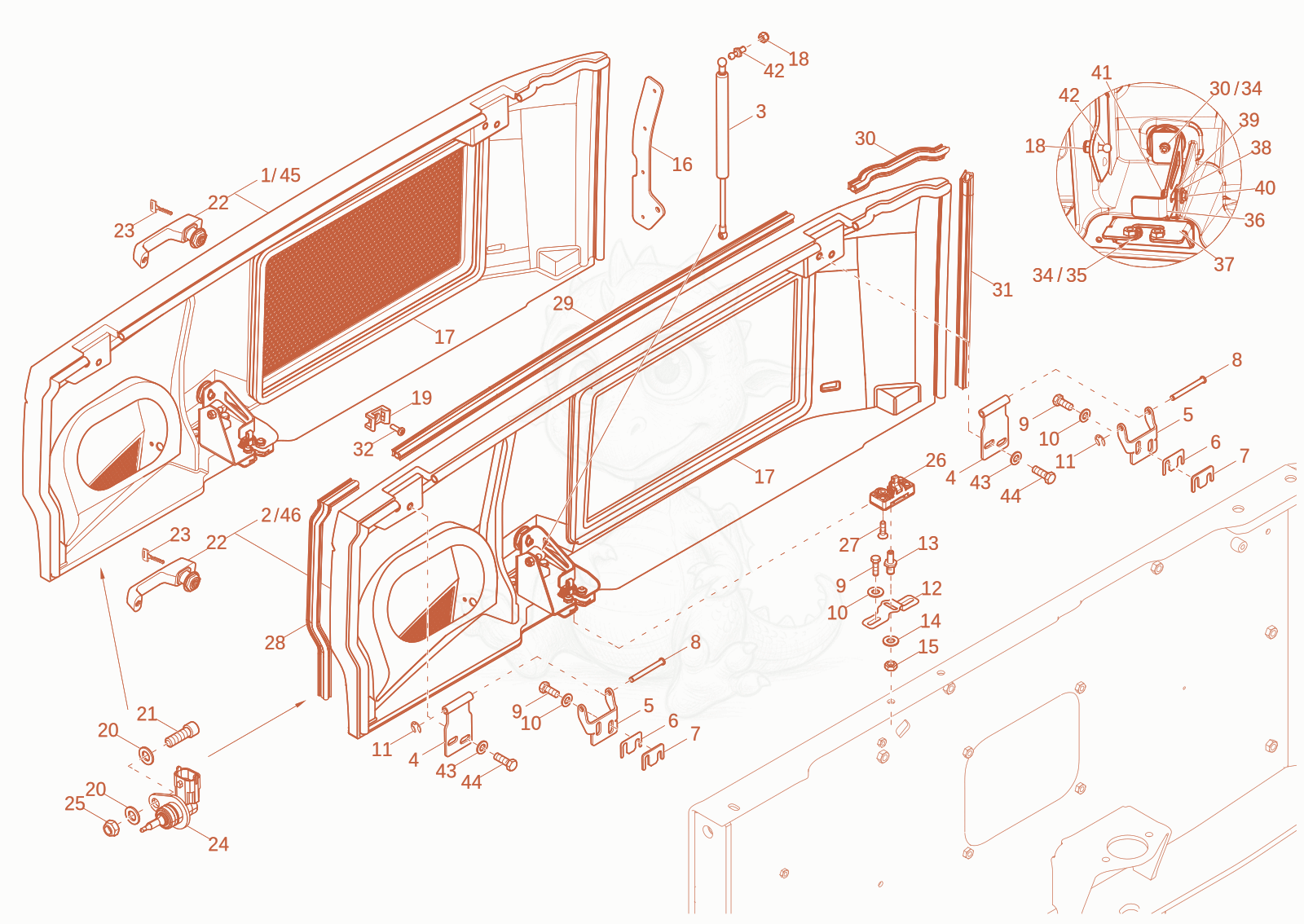

DV90-2 Maintenance cover Diagram

Exploded parts diagram of the Maintenance cover of a Wacker Neuson DV90-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000426134Not stocked
    Maintenance cover×1
  • 21000426133Not stocked
    Maintenance cover×1
  • 31000529133Not stocked
    gas strut×1
  • 41000405580
    $24.38
    Hinge - 1000405580×2
  • 51000405581Not stocked
    hinge×2
  • 61000071501Not stocked
    plate×2
  • 71000093886
    $6.41
    adjusting plate - 1000093886×2
  • 81000286526
    $18.24
    hinge pin - 1000286526×2
  • 91000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×6
  • 101000094974
    $0.70
    washer M10-DIN134 - 1000094974×6
  • 111000049454Not stocked
    lock washer×2
  • 121000396903Not stocked
    catch angle×1
  • 131000369245Not stocked
    pin×1
  • 141000049219Not stocked
    washer×1
  • 151000170695
    $1.22
    6-point screw M12x1-8 A2C - 1000170695×1
  • 161000435043
    $118.87
    fasten plate - 1000435043×1
  • 171000098164
    $21.58
    rubber profile 1,5-3mm - 1000098164×1.9
  • 181000357534Not stocked
    hexagon nut×2
  • 191000345373
    $2.54
    sockets - 1000345373×2
  • 201000015430Not stocked
    u-washer×4
  • 211000085456
    $0.05
    allen screw M6x20-8.8 A2C-DIN912 - 1000085456×1
  • 221000435067
    $19.25
    handle - 1000435067×1
  • 231000184819
    $14.17
    EZ17 Key without cap - 1000184819×1
  • 241000282375
    $173.56
    Sensor - 1000282375×1
  • 251000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×1
  • 261000369139Not stocked
    lock×1
  • 271000085532
    $1.93
    countersunk screw M8x30 8.8 A2C - 1000085532×2
  • 281000435233
    $33.12
    sealing profile - 1000435233×0.6
  • 291000435233
    $33.12
    sealing profile - 1000435233×1
  • 301000435233
    $33.12
    sealing profile - 1000435233×2.1
  • 311000435233
    $33.12
    sealing profile - 1000435233×0.5
  • 321000153221
    $0.04
    screw - 1000153221×2
  • 331000085455
    $0.81
    allen screw M6x16-8.8 A2C - 1000085455×2
  • 341000015431Not stocked
    washer×2
  • 351000019136Not stocked
    hex screw×2
  • 361000435063
    $203.51
    plate - 1000435063×1
  • 371000435045Not stocked
    fasten plate×1
  • 381000095343
    $1.42
    washer A 6,4 St A2C DIN9021 - 1000095343×2
  • 391000435199
    $14.54
    plate - 1000435199×1
  • 401000085384
    $0.84
    6-Point screw M6x25-8.8 A2C-DIN933 - 1000085384×1
  • 411000357533Not stocked
    hexagon nut×1
  • 421000529237Not stocked
    ball plug×2
  • 431000013027Not stocked
    washer×4
  • 441000013008Not stocked
    hex screw×4
  • 451000482139
    $2,223.57
    Maintenance cover - 1000482139×1
  • 461000482138Not stocked
    Maintenance cover×1
