DW10

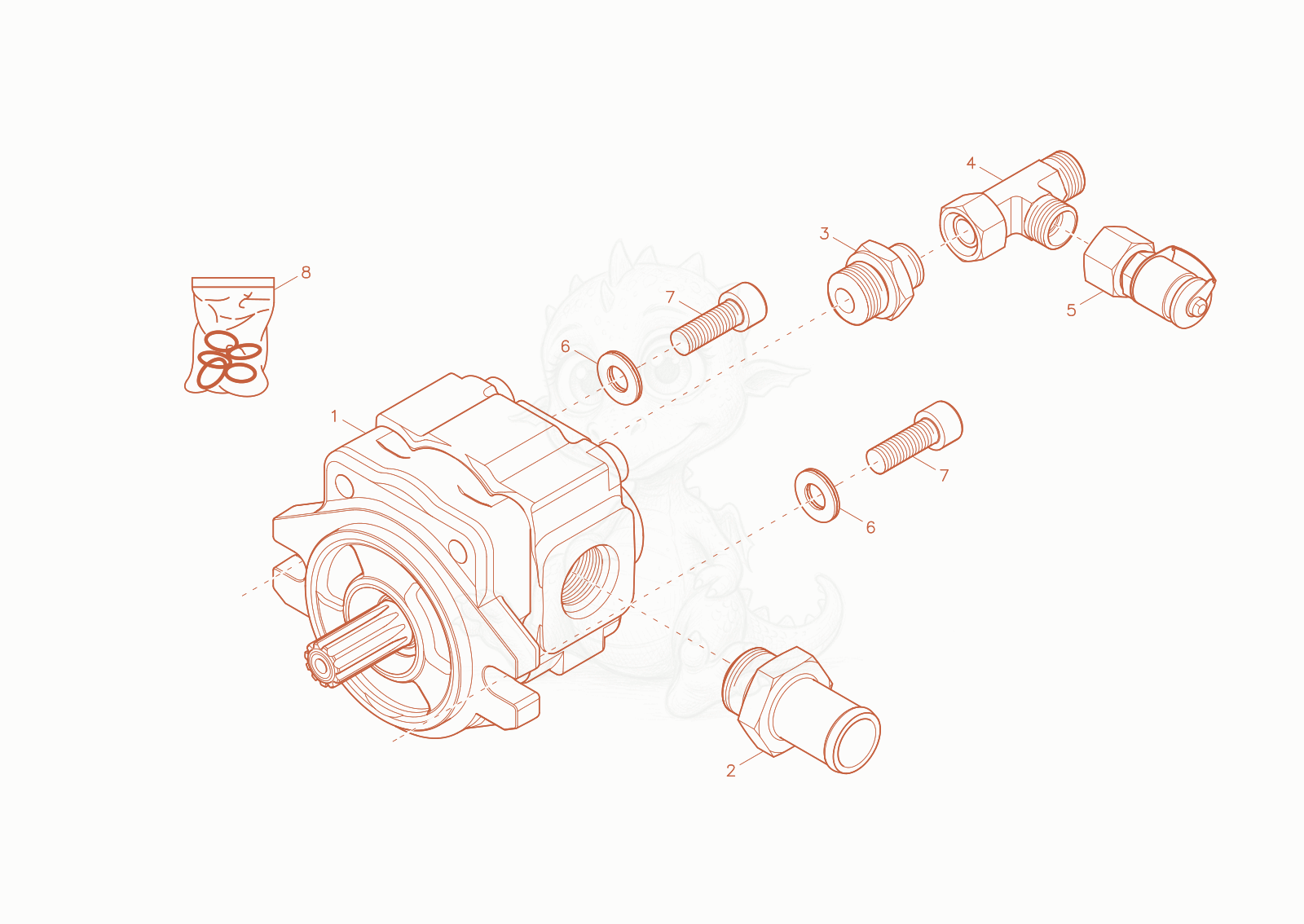

DW10 gear pump Diagram

Exploded parts diagram of the gear pump of a Wacker Neuson DW10, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000539290Not stocked
    gear pump×1
  • 21000511419Not stocked
    Intake×1
  • 31000082970
    $10.84
    GE12LR1/2OROMDA3C - 1000082970×1
  • 41000015516
    $13.63
    EL12LOMDA3C - 1000015516×1
  • 51000119240
    $38.56
    VKA3/12LA3C - 1000119240×1
  • 61000082678
    $1.36
    NORTHLOCK DISC - 1000082678×2
  • 71000015376Not stocked
    cheese head screw×2
  • 81000551160Not stocked
    seal kit×1
