DW15e

DW15E plug coupling Diagram

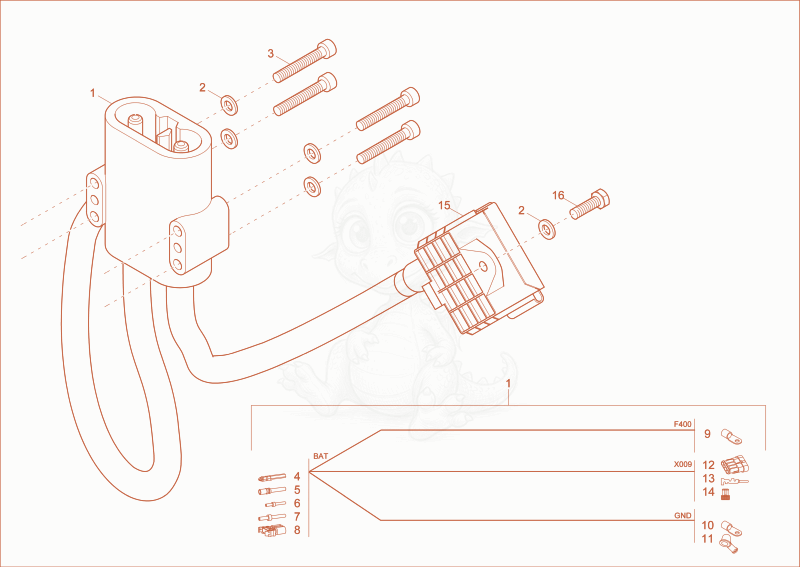

Exploded parts diagram of the plug coupling of a Wacker Neuson DW15E, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000404392Not stocked
    wiring harness×1
  • 21000015430Not stocked
    washer×5
  • 31000085458
    $0.73
    Screw M6x40-8.8 A2C DIN912 - 1000085458×4
  • 41000360707Not stocked
    pin×1
  • 51000363724Not stocked
    pin contact×2
  • 71000360710Not stocked
    plug×2
  • 81000362528Not stocked
    plug×1
  • 91000050031Not stocked
    cable lug×1
  • 101000050030Not stocked
    cable lug×1
  • 111000063176Not stocked
    protecting cap×1
  • 121000274691
    $7.56
    plug sleeve housing - 1000274691×1
  • 131000155228
    $1.41
    Pin contact - 1000155228×4
  • 141000052672Not stocked
    seal×4
  • 151000224821
    $44.10
    Distributor - 1000224821×1
  • 161000018400Not stocked
    hex screw×1
