DW20-2

DW20-2 wiring harness (Option SLE) Diagram

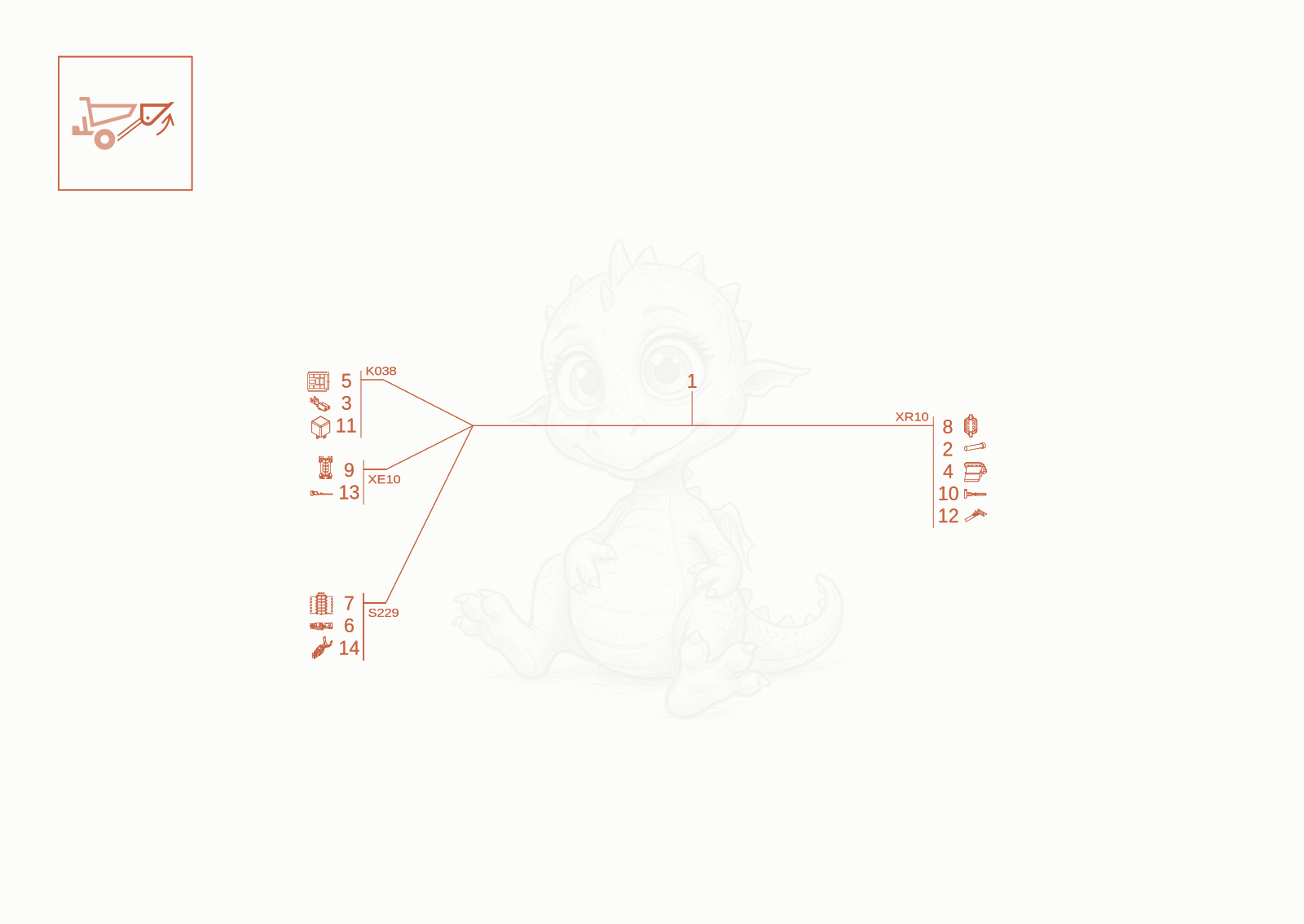

Exploded parts diagram of the wiring harness (Option SLE) of a Wacker Neuson DW20-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000512036Not stocked
    wiring harness×1
  • 21000030446Not stocked
    plug×1
  • 31000095371Not stocked
    plug sleeve×4
  • 41000100723
    $2.77
    wedge - 1000100723×1
  • 51000101071
    $7.72
    Plug housing - 1000101071×1
  • 61000103753
    $3.01
    Timer Contact - 1000103753×4
  • 71000103949
    $5.74
    bushing housing - 1000103949×1
  • 81000105113
    $14.50
    bushing housing - 1000105113×1
  • 91000170627
    $5.89
    Pin housing - 1000170627×1
  • 101000309284Not stocked
    bushing contact×5
  • 111000353650Not stocked
    relay×1
  • 121000359612Not stocked
    plug connection×2
  • 131000364528Not stocked
    pin contact×3
  • 141000432365Not stocked
    timer contact×2
