DW20-2

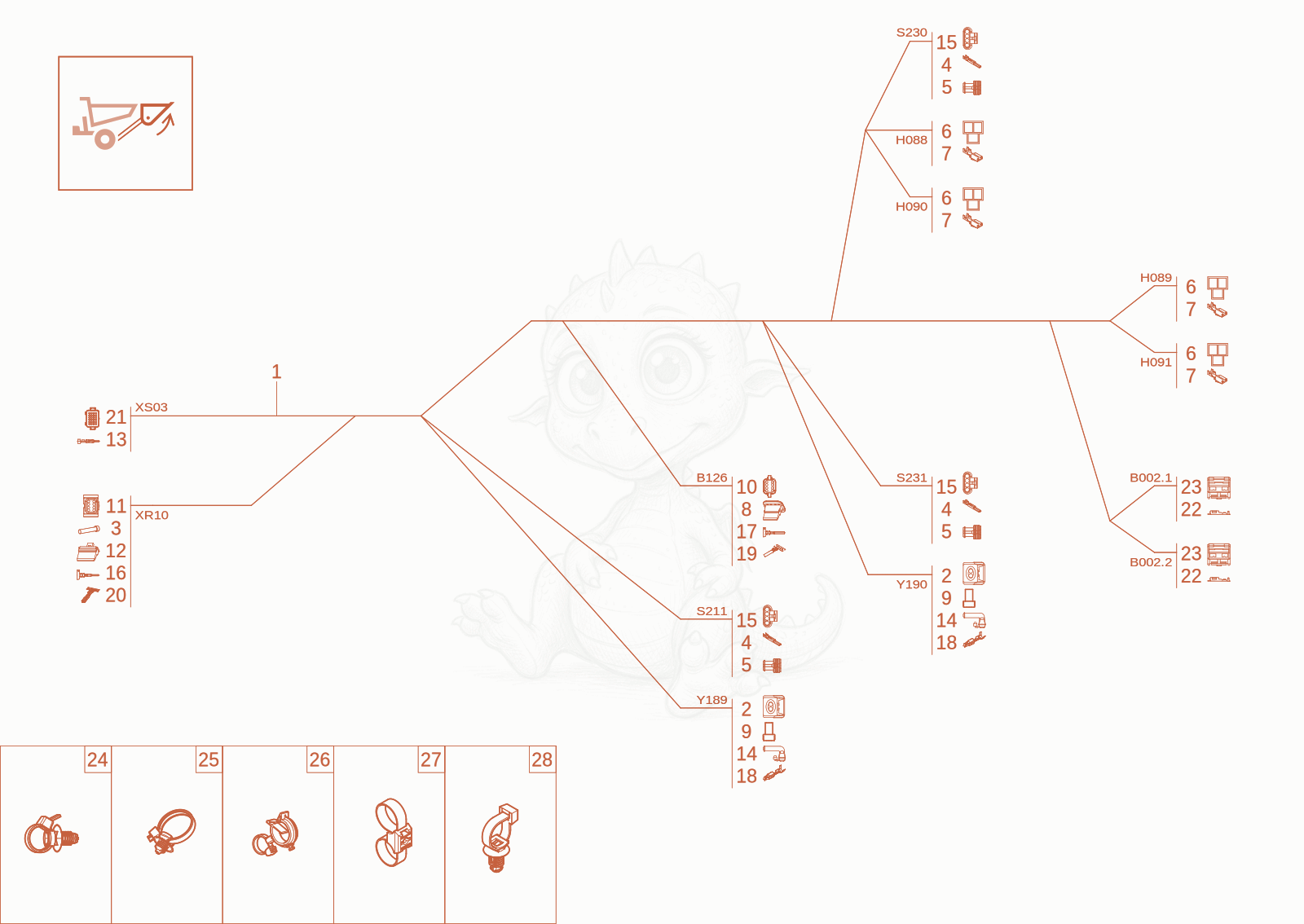

DW20-2 WIRE HARNESS (Option SLE) Diagram
- 11000482615Not stockedwiring harness×1
- Housing - 1000027410×2
- 31000030446Not stockedplug×1
- 41000051990Not stockedbushing contact×12
- 51000052672Not stockedseal×12
- plug sleeve housing - 1000095339×4
- plug sleeve - 1000095370×12
- wedge - 1000100723×1
- seal - 1000104739×4
- bushing housing - 1000105113×1
- Pin housing - 1000105117×1
- wedge - 1000105118×1
- Pin contact - 1000147472×18
- RUBBER CAP - 1000228723×2
- plug bushing - 1000258052×3
- 161000309282Not stockedpin contact×5
- 171000309284Not stockedbushing contact×2
- 181000333910Not stockedtimer contact×4
- 191000359612Not stockedplug connection×6
- 201000362407Not stockedpin contact×2
- 211000363133Not stockedpin housing×1
- 221000383148Not stockedbushing contact×2
- 231000383151Not stockedbushing housing×2
- 241000375997Not stockedfixing bracket×2
- Cable strap T80IFT6 - 1000090083×1
- 261000386091Not stockedcable strap×3
- 271000371366Not stockedcable strap×1
- 281000322839Not stockedfixing bracket×3
