DW20-2

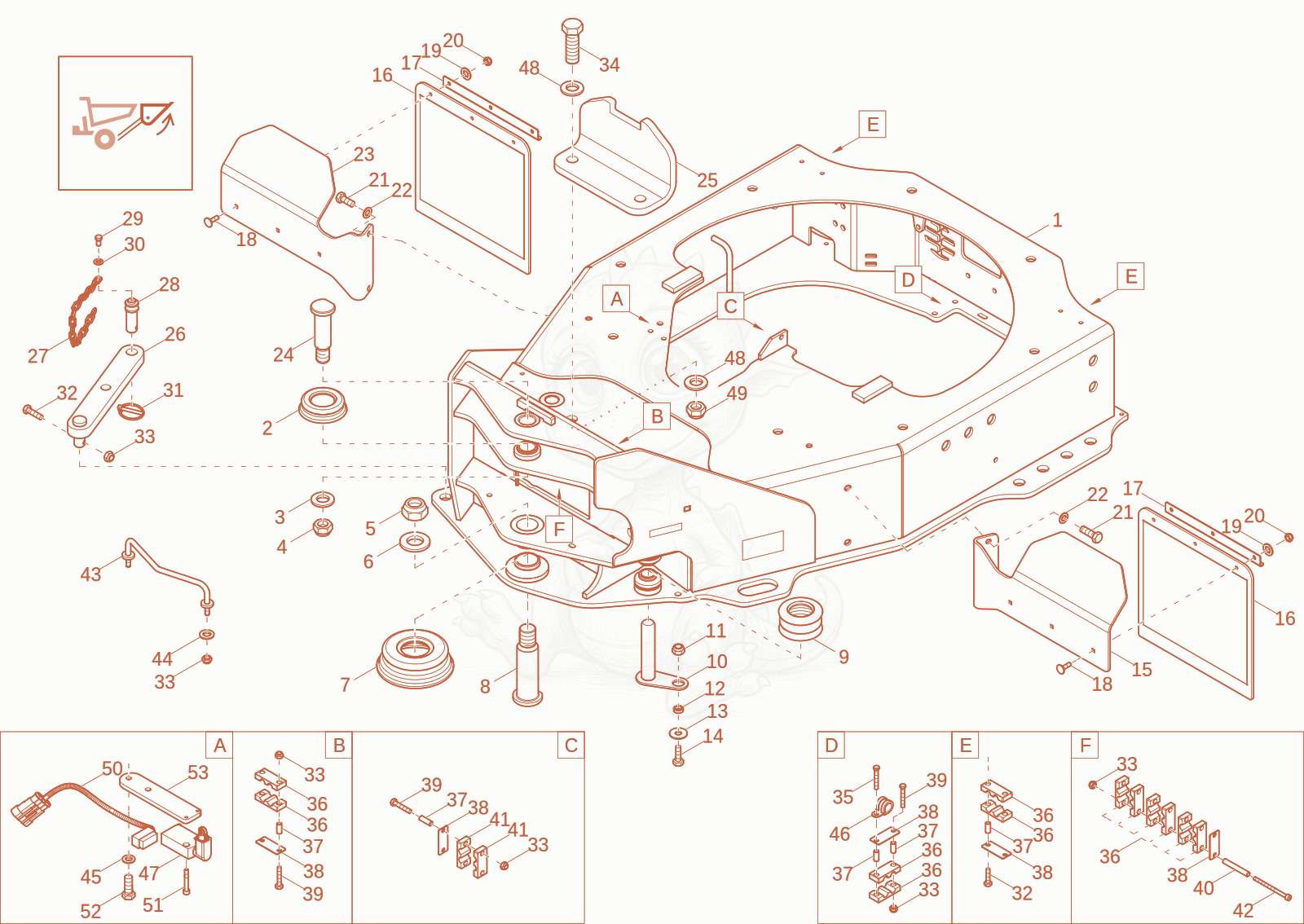

DW20-2 front frame (option) Diagram

Exploded parts diagram of the front frame (option) of a Wacker Neuson DW20-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000521476
    $3,220.74
    CHASSIS - 1000521476×1
  • 21000386111
    $25.66
    seal - 1000386111×1
  • 31000337848
    $2.61
    U-WASHER - 1000337848×1
  • 41000389603
    $3.98
    screw - 1000389603×1
  • 51000388900Not stocked
    nut×1
  • 61000400782
    $3.07
    WASHER - 1000400782×1
  • 71000386110
    $39.10
    seal - 1000386110×1
  • 81000409936
    $98.41
    PIN - 1000409936×1
  • 91000386112
    $27.42
    seal - 1000386112×1
  • 101000409931
    $50.82
    pin - 1000409931×1
  • 111000357535Not stocked
    hexagon nut×1
  • 121000151025
    $3.03
    washer 18/12x5 - 1000151025×3
  • 131000092303
    $0.86
    Washer 10,5 St A2C - 1000092303×1
  • 141000015346Not stocked
    hex screw×1
  • 151000547347Not stocked
    dust catch×1
  • 161000386713Not stocked
    dust catch×2
  • 171000513110Not stocked
    fastener rail×2
  • 181000299983
    $1.16
    door strap screw - 1000299983×6
  • 191000094966
    $0.65
    washer M6,4-DIN134 - 1000094966×6
  • 201000357533Not stocked
    hexagon nut×6
  • 211000015364Not stocked
    hex screw×4
  • 221000426230Not stocked
    lock washer×4
  • 231000547350Not stocked
    dust catch×1
  • 241000409937
    $70.43
    PIN - 1000409937×1
  • 251000451287Not stocked
    plate×1
  • 261000386587Not stocked
    buckle support×1
  • 271000097224
    $40.66
    CHAIN - 1000097224×0.3
  • 281000386588
    $33.68
    pin - 1000386588×1
  • 291000085382
    $0.70
    HEX SCREW - 1000085382×1
  • 301000095343
    $1.42
    washer A 6,4 St A2C DIN9021 - 1000095343×1
  • 311000015457Not stocked
    cotter pin×1
  • 321000085391
    $0.91
    hex screw - 1000085391×5
  • 331000357534Not stocked
    hexagon nut×11
  • 341000047872Not stocked
    hex screw×2
  • 351000085393
    $0.93
    hex screw - 1000085393×1
  • 361000399882Not stocked
    rubber piece×14
  • 371000409978
    $33.92
    sleeve - 1000409978×10
  • 381000399874
    $11.68
    plate - 1000399874×6
  • 391000018447Not stocked
    hex screw×5
  • 401000409993Not stocked
    sleeve×2
  • 411000399873Not stocked
    rubber piece×2
  • 421000099331
    $0.42
    cheese head screw - 1000099331×2
  • 431000424680
    $283.81
    Holder - 1000424680×1
  • 441000015448Not stocked
    washer×2
  • 451000015431Not stocked
    washer×2
  • 461000083248
    $4.47
    hose clamp RSGU 1 23/20 - 1000083248×1
  • 471000277154
    $80.62
    switch ZCMD2165L0 - 1000277154×1
  • 481000426234Not stocked
    lock washer×4
  • 491000021948Not stocked
    hexagon nut×2
  • 501000254757
    $114.97
    cable - 1000254757×1
  • 511000085450
    $0.70
    cheese head screw - 1000085450×2
  • 521000019136Not stocked
    hex screw×2
  • 531000435256Not stocked
    plate×1
