DW20-2

DW20-2 skip Monitoring device Diagram

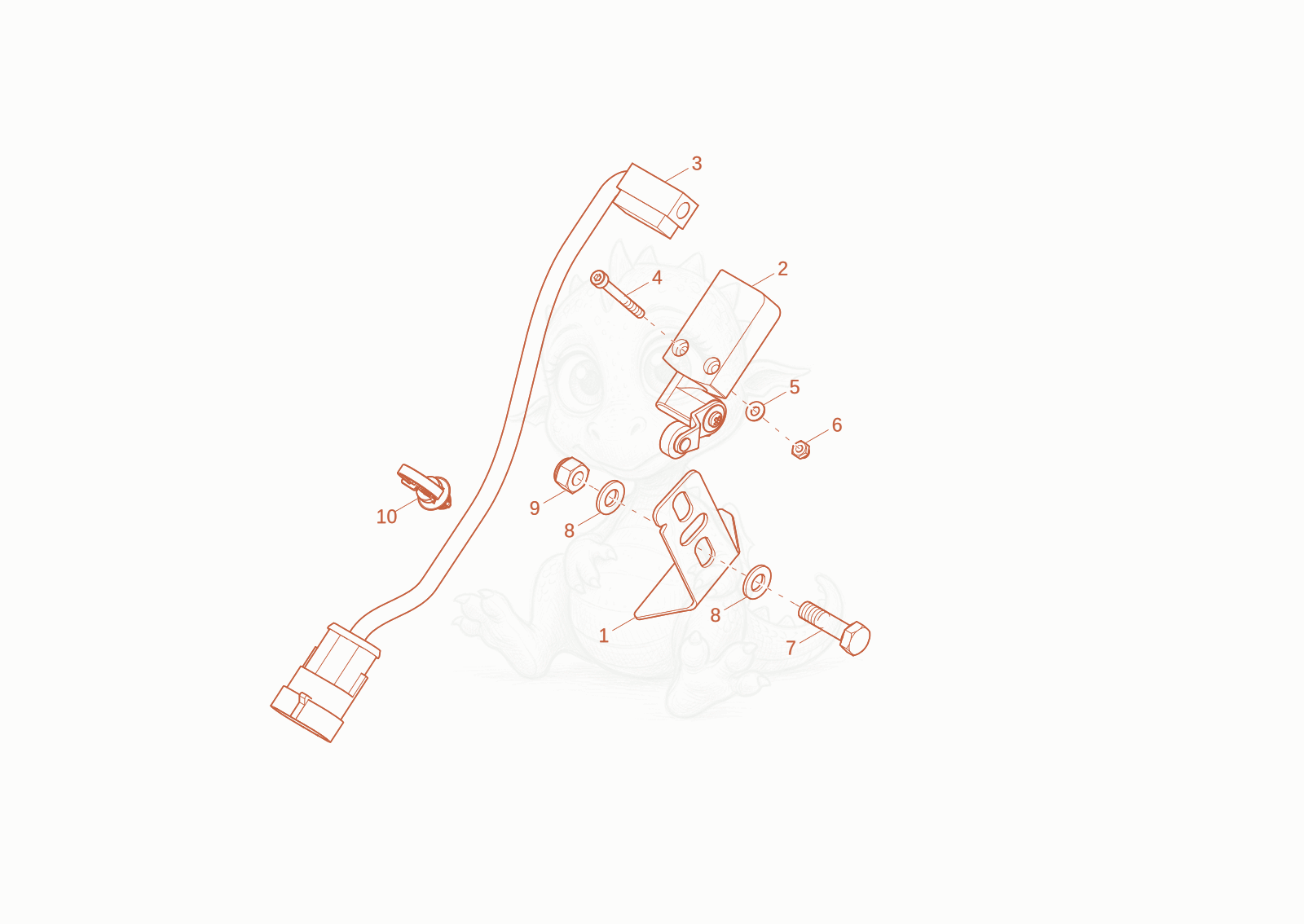

Exploded parts diagram of the skip Monitoring device of a Wacker Neuson DW20-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000564119Not stocked
    plate×1
  • 21000400276
    $76.47
    switch - 1000400276×1
  • 31000254757
    $114.97
    cable - 1000254757×1
  • 41000082514
    $0.73
    cheese head screw - 1000082514×2
  • 51000094961
    $1.71
    washer 4,3 DIN125 - 1000094961×2
  • 61000082547
    $0.88
    nut M4-8 A2C-DIN985 - 1000082547×2
  • 71000085390
    $0.83
    6-Point screw M8x30-8.8 A2C-DIN933 - 1000085390×3
  • 81000015448Not stocked
    washer×6
  • 91000357534Not stocked
    hexagon nut×3
  • 101000375997Not stocked
    fixing bracket×3
