DW20

DW20 wheel cover (option) Diagram

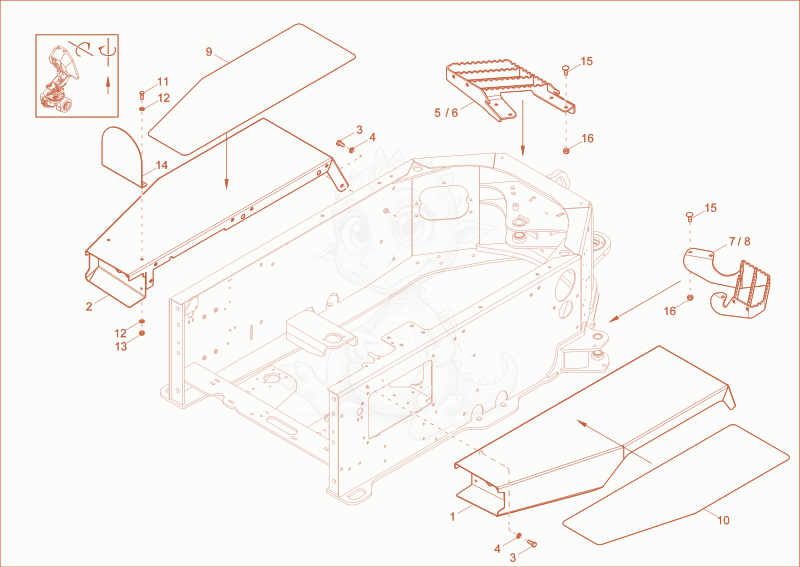

Exploded parts diagram of the wheel cover (option) of a Wacker Neuson DW20, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000446706Not stocked
    wheel cover×1
  • 21000446707Not stocked
    wheel cover×1
  • 31000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×10
  • 41000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×10
  • 51000383860Not stocked
    foot step×1
  • 61000414748Not stocked
    foot step×1
  • 71000383876Not stocked
    foot step×1
  • 81000414762Not stocked
    foot step×1
  • 91000413512
    $93.71
    Mat - 1000413512×1
  • 101000413511
    $93.71
    Mat - 1000413511×1
  • 111000013008Not stocked
    hex screw×2
  • 121000015431Not stocked
    washer×4
  • 131000357534Not stocked
    hexagon nut×2
  • 141000425455
    $139.79
    bracket - 1000425455×1
  • 151000299982
    $0.58
    door strap screw - 1000299982×7
  • 161000357535Not stocked
    hexagon nut×7
