DW20

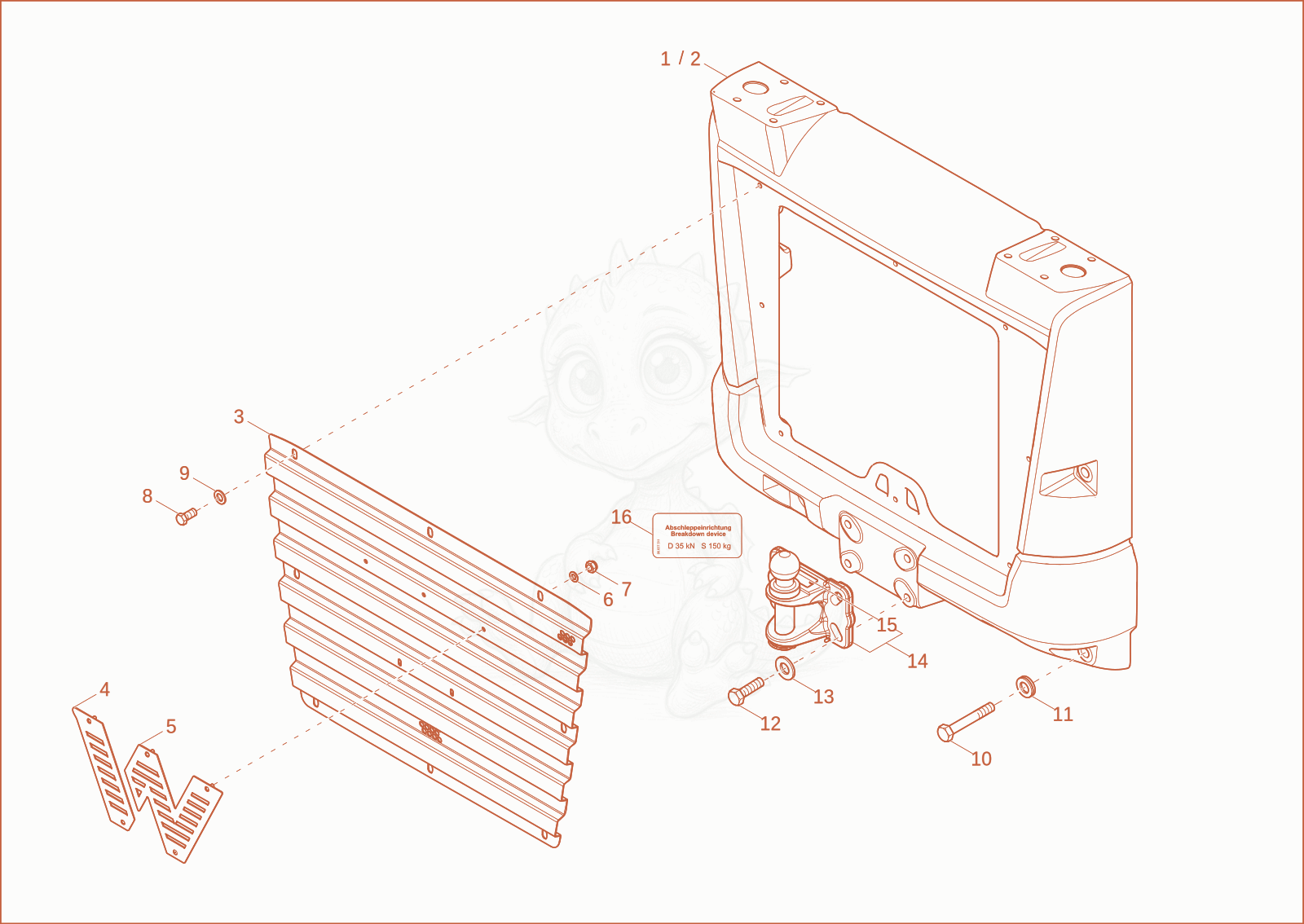

DW20 bumper Diagram

Exploded parts diagram of the bumper of a Wacker Neuson DW20, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000386830
    $3,229.05
    BAR - 1000386830×1
  • 21000381381
    $3,167.54
    bumper - 1000381381×1
  • 31000386779Not stocked
    cooler screen×1
  • 41000399460
    $113.08
    PLATE - 1000399460×1
  • 51000399461
    $158.98
    PLATE - 1000399461×1
  • 61000015430Not stocked
    u-washer×5
  • 71000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×5
  • 81000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×8
  • 91000094974
    $0.70
    washer M10-DIN134 - 1000094974×8
  • 101000019217Not stocked
    hex screw×4
  • 111000015451Not stocked
    northlock disc×4
  • 121000085430
    $1.76
    HEX SCREW M16x50-10.9 DACRO-DIN933 - 1000085430×4
  • 131000426233Not stocked
    lock washer×4
  • 141000299920
    $309.56
    Trailercoupling 1000299920×1
  • 151000360212Not stocked
    ball pin×1
  • 161000526104
    $47.66
    STICKER - 1000526104×1
