DW20

DW20 control bracket Diagram

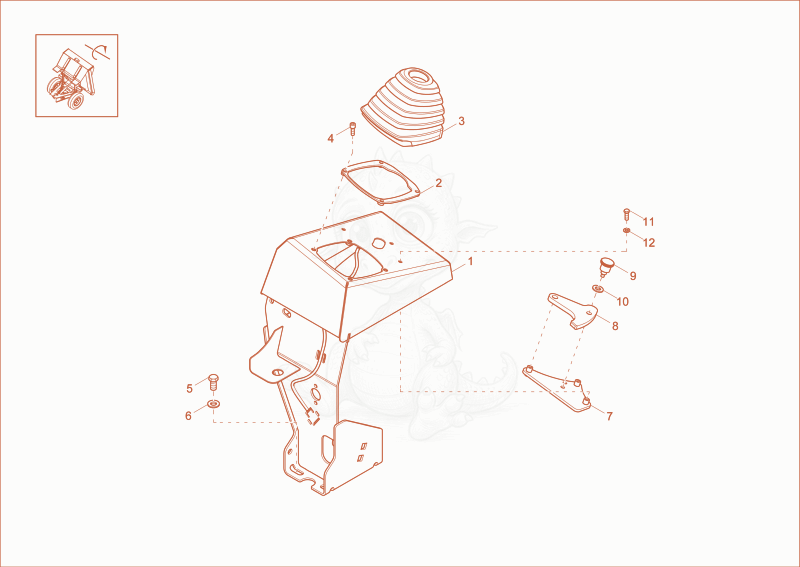

Exploded parts diagram of the control bracket of a Wacker Neuson DW20, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000470613Not stocked
    console×1
  • 21000424418Not stocked
    fixing plate×1
  • 31000341333
    $45.32
    bellow - 1000341333×1
  • 41000085455
    $0.81
    allen screw M6x16-8.8 A2C - 1000085455×4
  • 51000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×4
  • 61000015442Not stocked
    u-washer×4
  • 71000387207
    $144.56
    plate - 1000387207×1
  • 81000388113Not stocked
    locking lever×1
  • 91000247956
    $27.90
    pin detent - 1000247956×1
  • 101000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×1
  • 111000085382
    $0.70
    HEX SCREW - 1000085382×3
  • 121000015430Not stocked
    u-washer×3
