DW30-2

DW30-2 SWING BRACKET (OPTION) Diagram

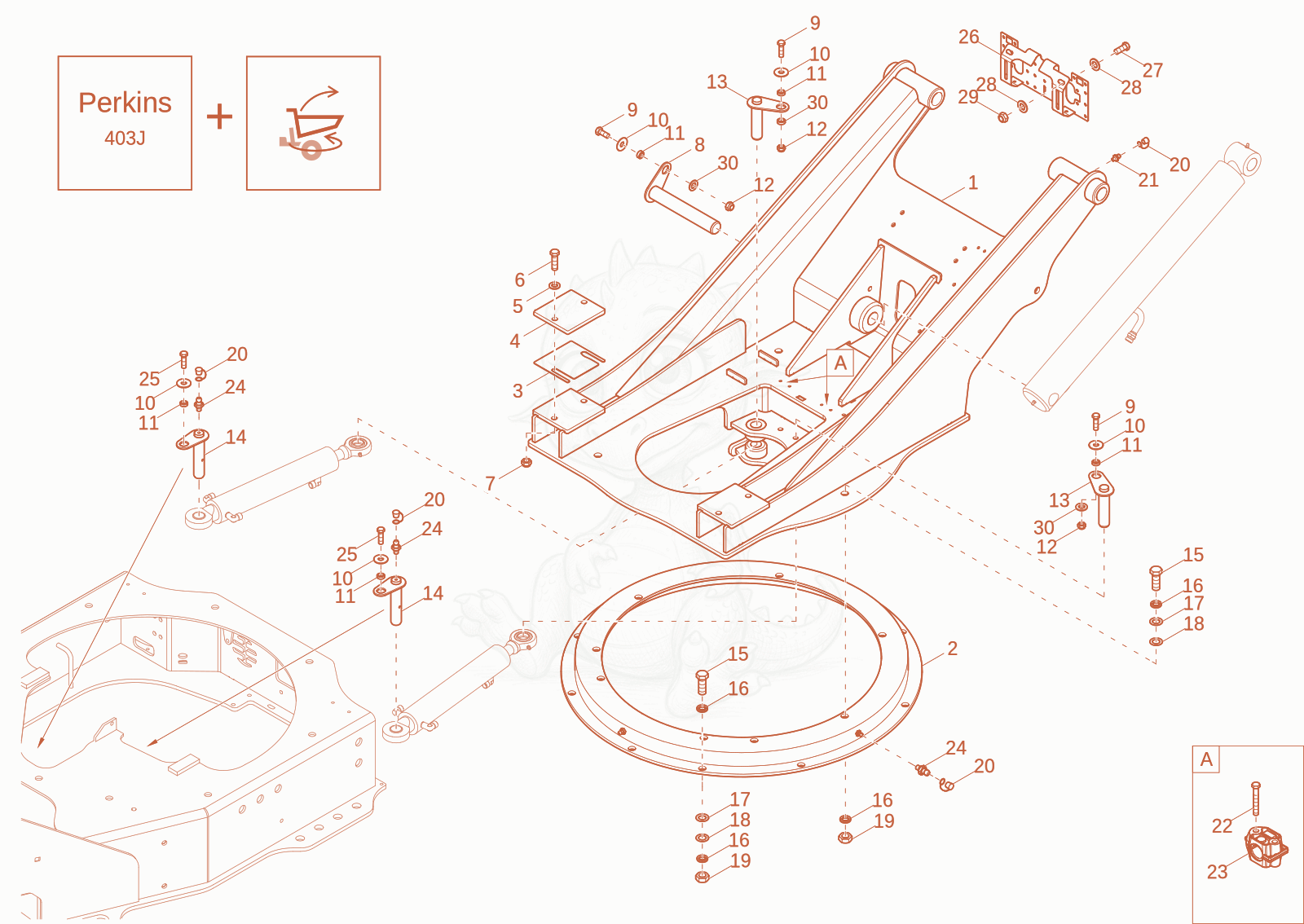

Exploded parts diagram of the SWING BRACKET (OPTION) of a Wacker Neuson DW30-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000523002
    $3,273.48
    swivel console - 1000523002×1
  • 21000382147Not stocked
    slewing ring×1
  • 31000409753
    $68.55
    plate - 1000409753×2
  • 41000409751Not stocked
    bucket support×2
  • 51000049219Not stocked
    washer×4
  • 61000085420
    $1.54
    hex screw - 1000085420×4
  • 71000357536Not stocked
    hexagon nut×4
  • 81000411527Not stocked
    pin×1
  • 91000015346Not stocked
    hex screw×3
  • 101000092303
    $0.86
    Washer 10,5 St A2C - 1000092303×5
  • 111000151025
    $3.03
    washer 18/12x5 - 1000151025×5
  • 121000357535Not stocked
    hexagon nut×3
  • 131000409933
    $50.62
    pin - 1000409933×2
  • 141000409935
    $57.44
    pin - 1000409935×2
  • 151000085429
    $1.71
    HEX SCREW - 1000085429×17
  • 161000015451Not stocked
    northlock disc×34
  • 171000344205
    $2.22
    spacer - 1000344205×17
  • 181000344204
    $2.11
    spacer - 1000344204×17
  • 191000015423Not stocked
    hexagon nut×17
  • 201000015480Not stocked
    cap grease nipple×8
  • 211000015476Not stocked
    grease nipple×2
  • 221000015340Not stocked
    hex screw×4
  • 231000520697Not stocked
    clamp×2
  • 241000015475Not stocked
    grease nipple×6
  • 251000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×2
  • 261000543204Not stocked
    bracket×1
  • 271000015343Not stocked
    hex screw×2
  • 281000015431Not stocked
    washer×4
  • 291000357534Not stocked
    hexagon nut×2
  • 301000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×3
