DW40

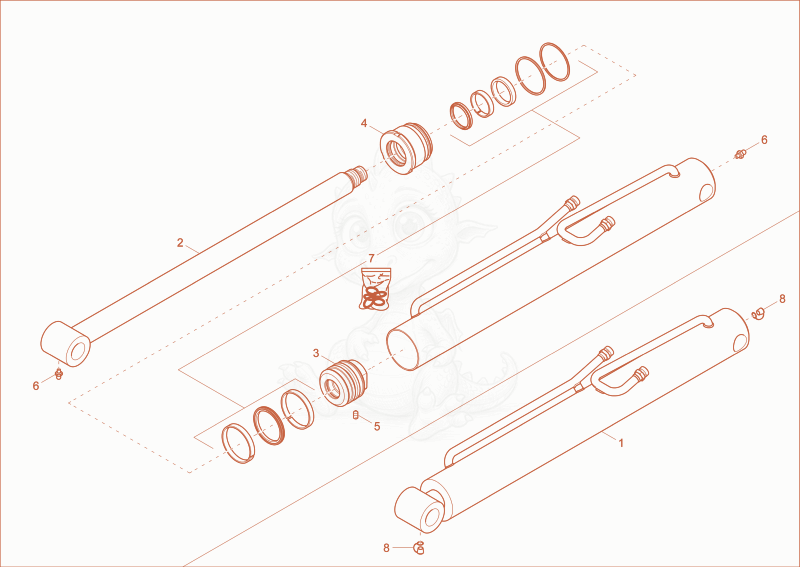

DW40 tilt ram Diagram

Exploded parts diagram of the tilt ram of a Wacker Neuson DW40, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000398494Not stocked
    tilt ram×1
  • 21000437194Not stocked
    piston rod×1
  • 31000437192Not stocked
    piston×1
  • 41000437200Not stocked
    guide bushing×1
  • 51000173845
    $2.61
    thread pin - 1000173845×1
  • 61000319259Not stocked
    grease nipple×2
  • 71000437197Not stocked
    seal kit×1
  • 81000015480Not stocked
    cap grease nipple×2
