E2200 GROUND HEATER, 3kW GENERATOR

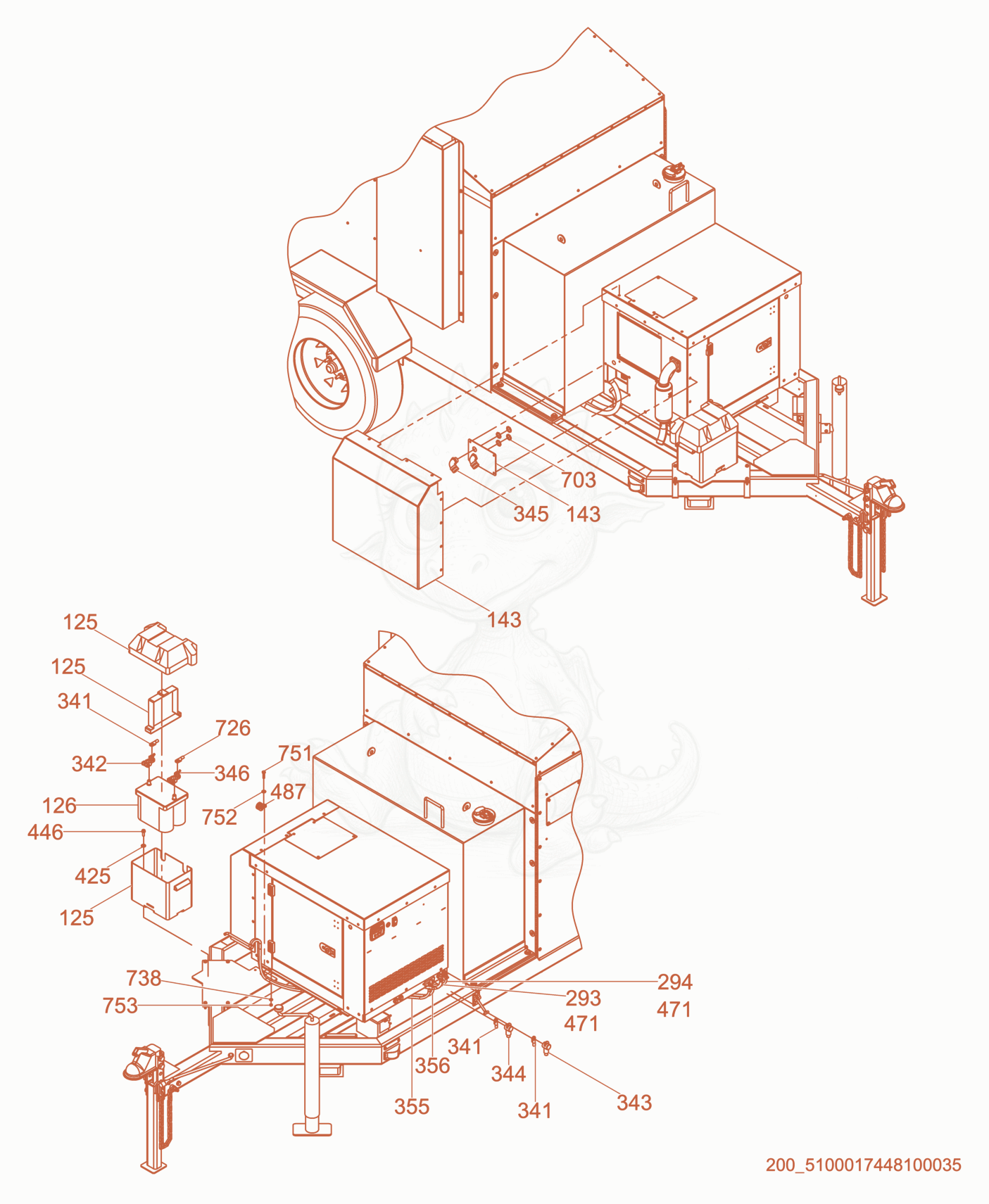

E2200 Genset Enclosure cpl. Diagram

Exploded parts diagram of the Genset Enclosure cpl. of a Wacker Neuson E2200, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1255000168169Not stocked
    Battery box×1
  • 1265000165552
    $479.41
    BATTERY-12V SEALED - 5000165552×1
  • 1435100017150Not stocked
    Generator×1
  • 2935100018662Not stocked
    Hose×1
  • 2945100027868Not stocked
    Hose×1
  • 3415000166649Not stocked
    Ring terminal×1
  • 3415000166649Not stocked
    Ring terminal×3
  • 3425000166650Not stocked
    Terminal×1
  • 3445000166687Not stocked
    Boot, insulated wire, red×1
  • 3455000181590Not stocked
    Fitting×2
  • 3465000180004Not stocked
    Terminal×1
  • 3555000166647Not stocked
    Positive battery cable, red×1
  • 3565000166648Not stocked
    Negative battery cable×1
  • 4255000167729Not stocked
    Flat washer×4
  • 4465000167793Not stocked
    Screw×4
  • 4715000168334Not stocked
    Clamp×2
  • 4875000168420Not stocked
    Clamp×1
  • 7035000181591Not stocked
    Washer×4
  • 7265200000290
    $2.75
    Eyelet-Crimp, 1/0 Ga, CU, 3/8 Hole - 5200000290×1
  • 7515000011469
    $0.09
    SCREW M6 X 25 HX.HD. - 5000011469×1
  • 7525000192393Not stocked
    Flat washer×1
