E3000 Ground Heater, 3kW Gen TC

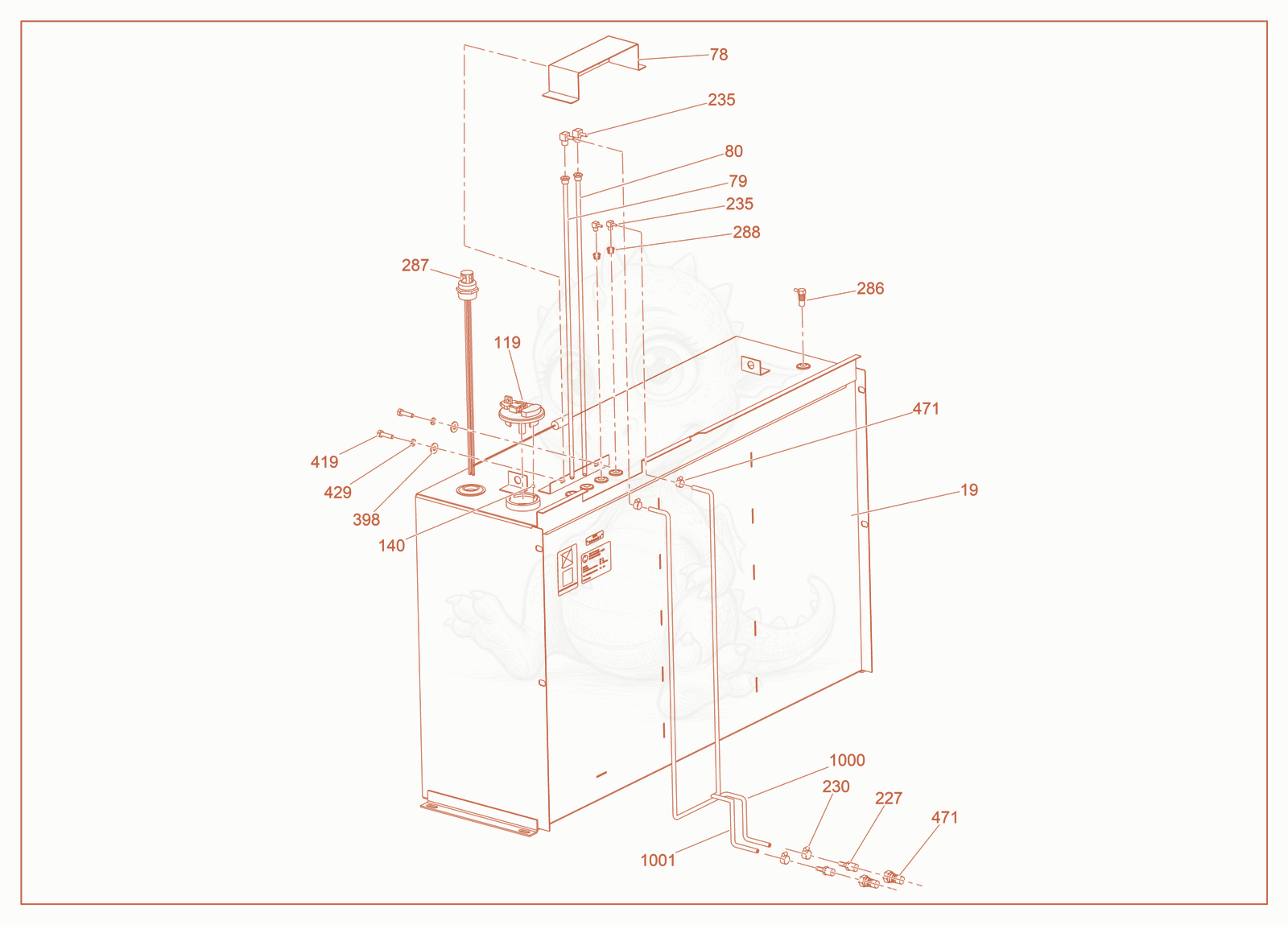

E3000 Fuel Tank cpl. Diagram

Exploded parts diagram of the Fuel Tank cpl. of a Wacker Neuson E3000, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 195200005859Not stocked
    Fuel tank×1
  • 785200009599Not stocked
    Cover×1
  • 795200009670Not stocked
    Fuel tube×1
  • 805200009671Not stocked
    Fuel tube×1
  • 1195000176369Not stocked
    Fuel tank cap×1
  • 1405000168611Not stocked
    Clip×1
  • 2275000168284Not stocked
    Hose barb×2
  • 2305000168295Not stocked
    Coupling×2
  • 2355000168367Not stocked
    Hose barb×4
  • 2865200009600Not stocked
    Tank vent, brass×1
  • 2875200011742Not stocked
    Fuel gauge×1
  • 2885000168458Not stocked
    Bushing×2
  • 3985000167806Not stocked
    Fender washer×2
  • 4195000167721Not stocked
    Bolt×2
  • 4295000167733Not stocked
    Lock washer×2
  • 4715000168334Not stocked
    Clamp×2
  • 4715000168334Not stocked
    Clamp×2
