E3000 Ground Heater, 3kW Gen TC

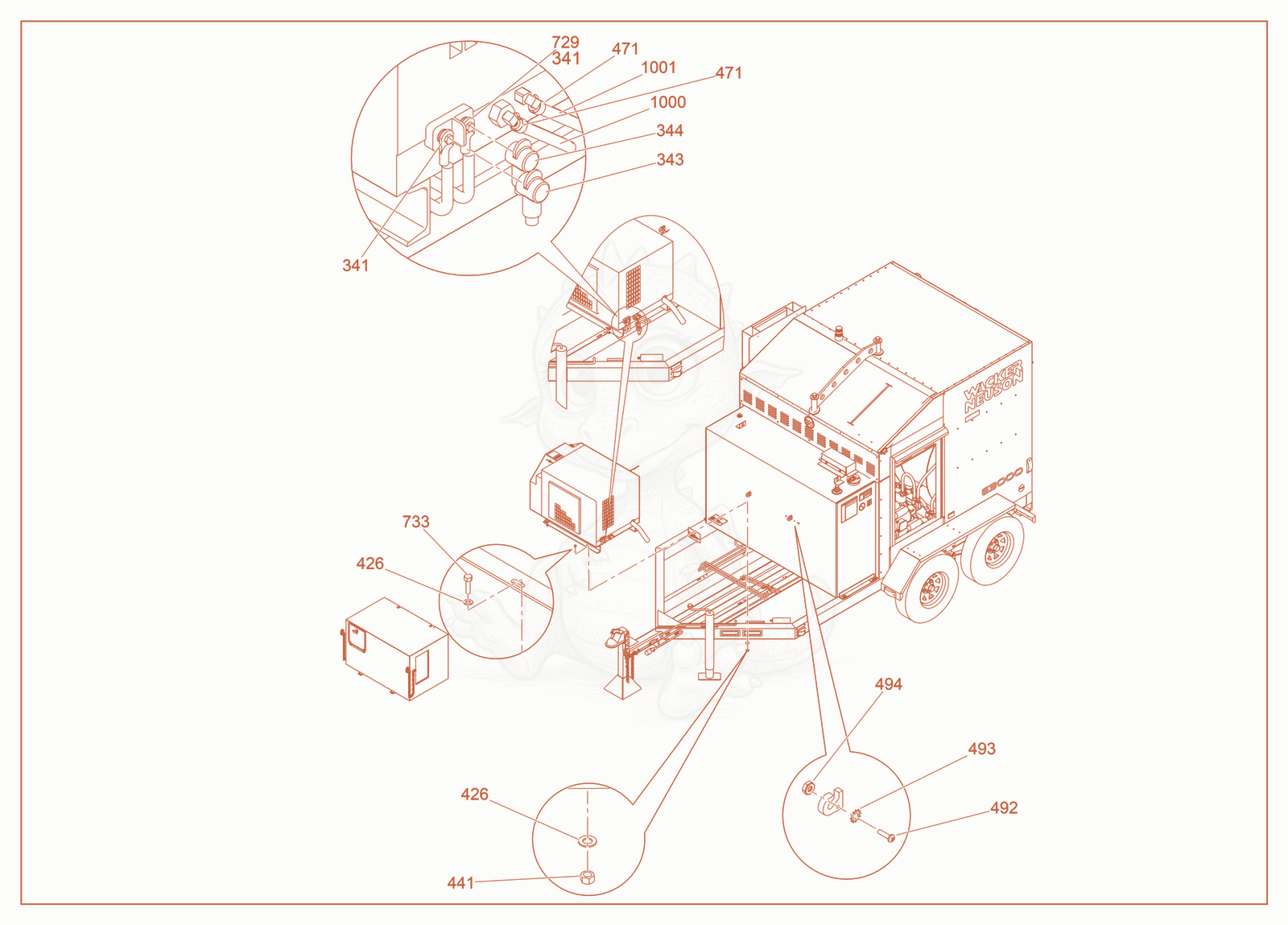

E3000 Generator Mount cpl. Diagram

Exploded parts diagram of the Generator Mount cpl. of a Wacker Neuson E3000, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 3415000166649Not stocked
    Ring terminal×2
  • 3435000166686Not stocked
    Boot, insulated wire, black×1
  • 3445000166687Not stocked
    Boot, insulated wire, red×1
  • 4265000167730Not stocked
    Flat washer×8
  • 4415000167778Not stocked
    Nut×4
  • 4715000168334Not stocked
    Clamp×2
  • 4925000167819Not stocked
    Screw×1
  • 4935000181623Not stocked
    Washer×1
  • 4945000181624Not stocked
    Nut×1
  • 7335000167750Not stocked
    Bolt×4
  • 10005000169397Not stocked
    Hose×1
