E3000 Ground Heater, 3kW Gen TC

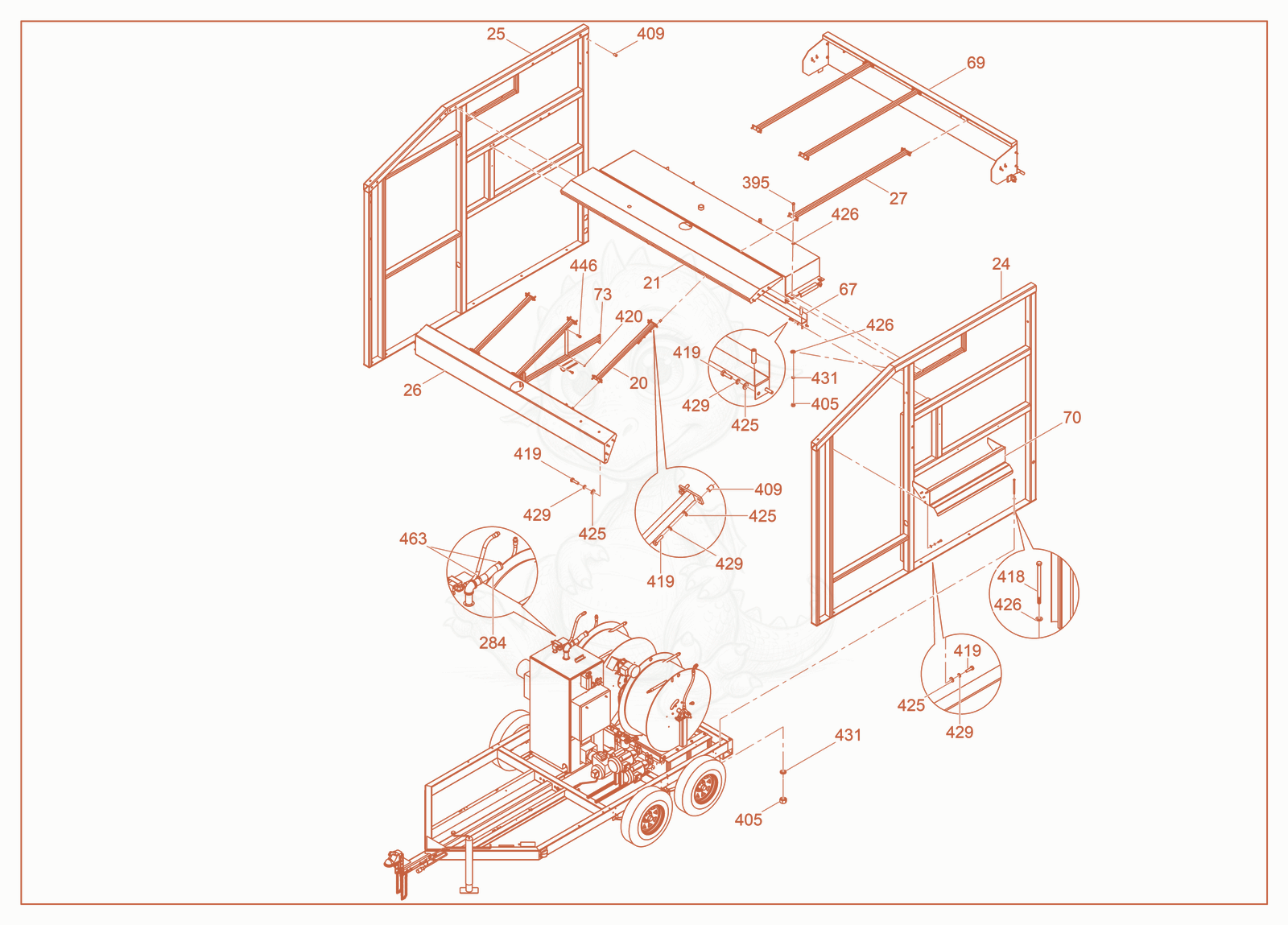

E3000 Frame Enclosure cpl. Diagram

Exploded parts diagram of the Frame Enclosure cpl. of a Wacker Neuson E3000, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 205000169467Not stocked
    Support×3
  • 215000177495Not stocked
    Brace×1
  • 245000169481Not stocked
    Side frame×1
  • 255000169482Not stocked
    Side frame×1
  • 265000177498Not stocked
    Cross member×1
  • 275000177499Not stocked
    Support bracket×3
  • 675000166957Not stocked
    Cross tube×1
  • 695000169471Not stocked
    Mount×1
  • 705000169477Not stocked
    Mount×1
  • 735000177735Not stocked
    Door frame×1
  • 2845000168667Not stocked
    Hose×1
  • 3955000167751Not stocked
    Bolt×4
  • 4055000167691Not stocked
    Nut×15
  • 4095000167700Not stocked
    Threaded insert×60
  • 4185000167720Not stocked
    Bolt×10
  • 4195000167721Not stocked
    Bolt×54
  • 4205000167722Not stocked
    Screw w/washer×2
  • 4255000167729Not stocked
    Flat washer×54
  • 4265000167730Not stocked
    Flat washer×18
  • 4295000167733Not stocked
    Lock washer×54
  • 4315000167735Not stocked
    Lock washer×14
  • 4465000167793Not stocked
    Screw×2
  • 4635000168037Not stocked
    Clamp×2
